Acquisition and Display

7-29

IM 701310-01E

App

Index

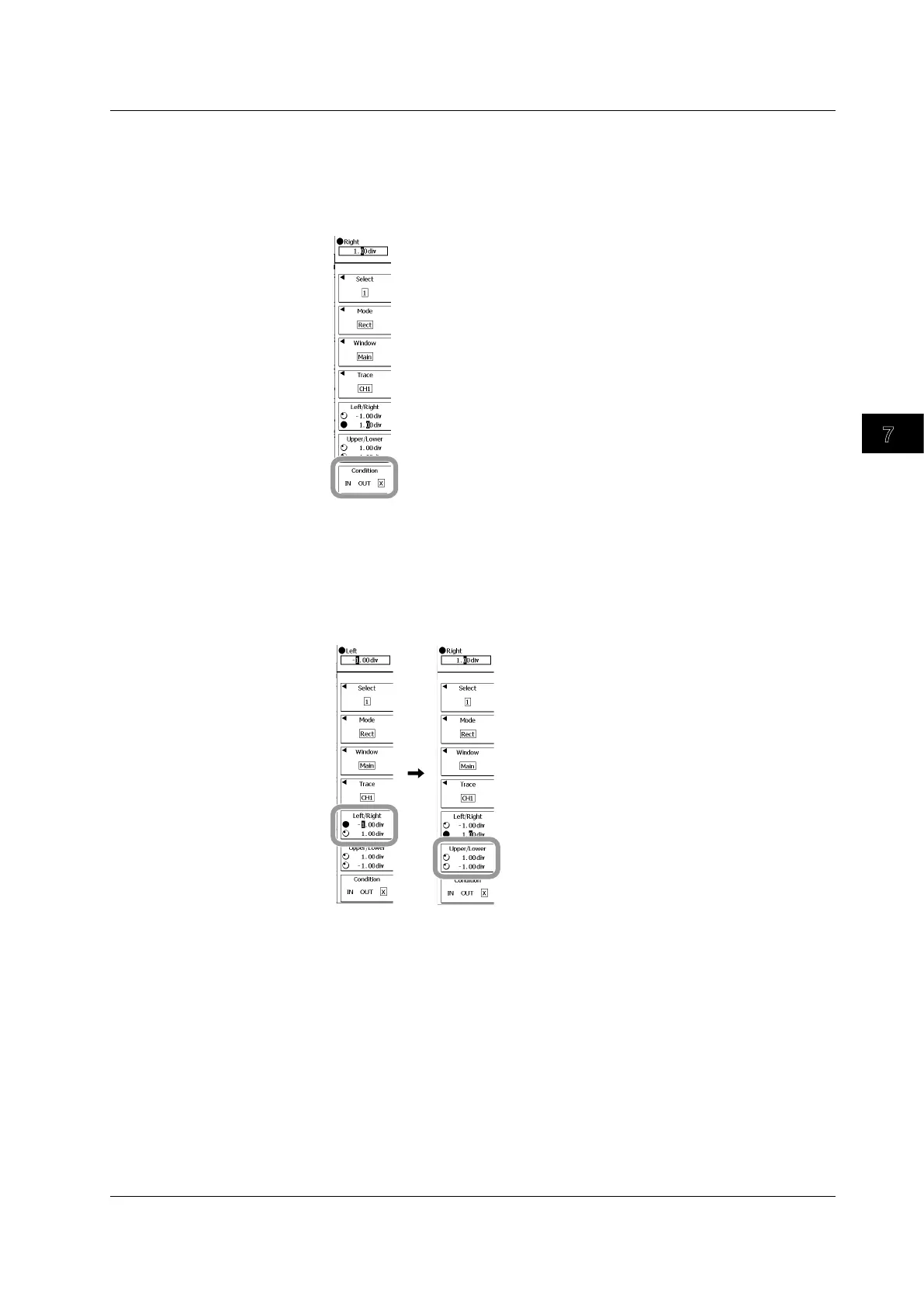

Selecting a GO/NO-GO Determination Condition

Press the Condition soft key to select IN, OUT, or X.

• If you select IN or OUT, a rectangular zone appears on the display.

• If you select X, a rectangular zone will not appear on the display, and the zone will not be

used for GO/NO-GO determination.

Setting the GO/NO-GO Determination Zone

Press the Upper/Lower soft key or the Left/Right soft key to select the direction

of the zone that you will set.

Use the rotary knob to set the boundaries of the zone.

Repeat steps 7 to 8 to edit the zone.

7.11 Setting Rectangular Zone GO/NO-GO Determination Conditions
