Displaying a Zoomed Waveform

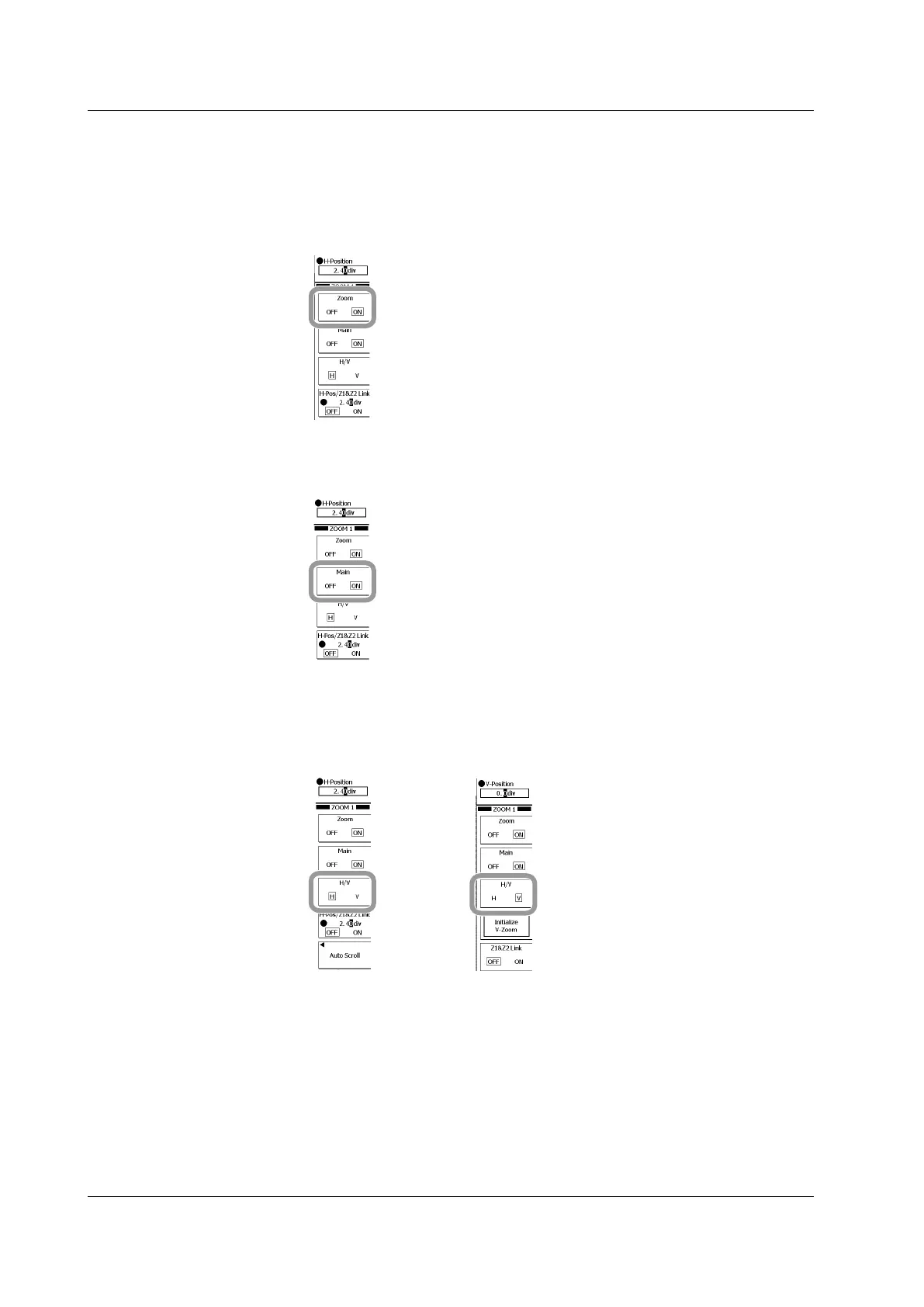

Push ZOOM 1 or ZOOM 2.

• The key that you pressed illuminates, and the zoomed waveform and menu appear. The

Zoom

soft key will be in a condition in which ON is selected.

• If you select OFF

, only the normal waveform will be displayed, and the menu will

disappear

You will not be able to carry out the subsequent steps.

Selecting Whether or Not to Display the Main Window

Press the Main soft key to select ON or OFF.

Selecting the Zoom Method

Press the H/V soft key to select the zoom method.

H: horizontal direction

V: vertical direction

Horizontal direction Vertical direction

8.1 Zooming the Waveform
