8.6 Setting Signal Labels

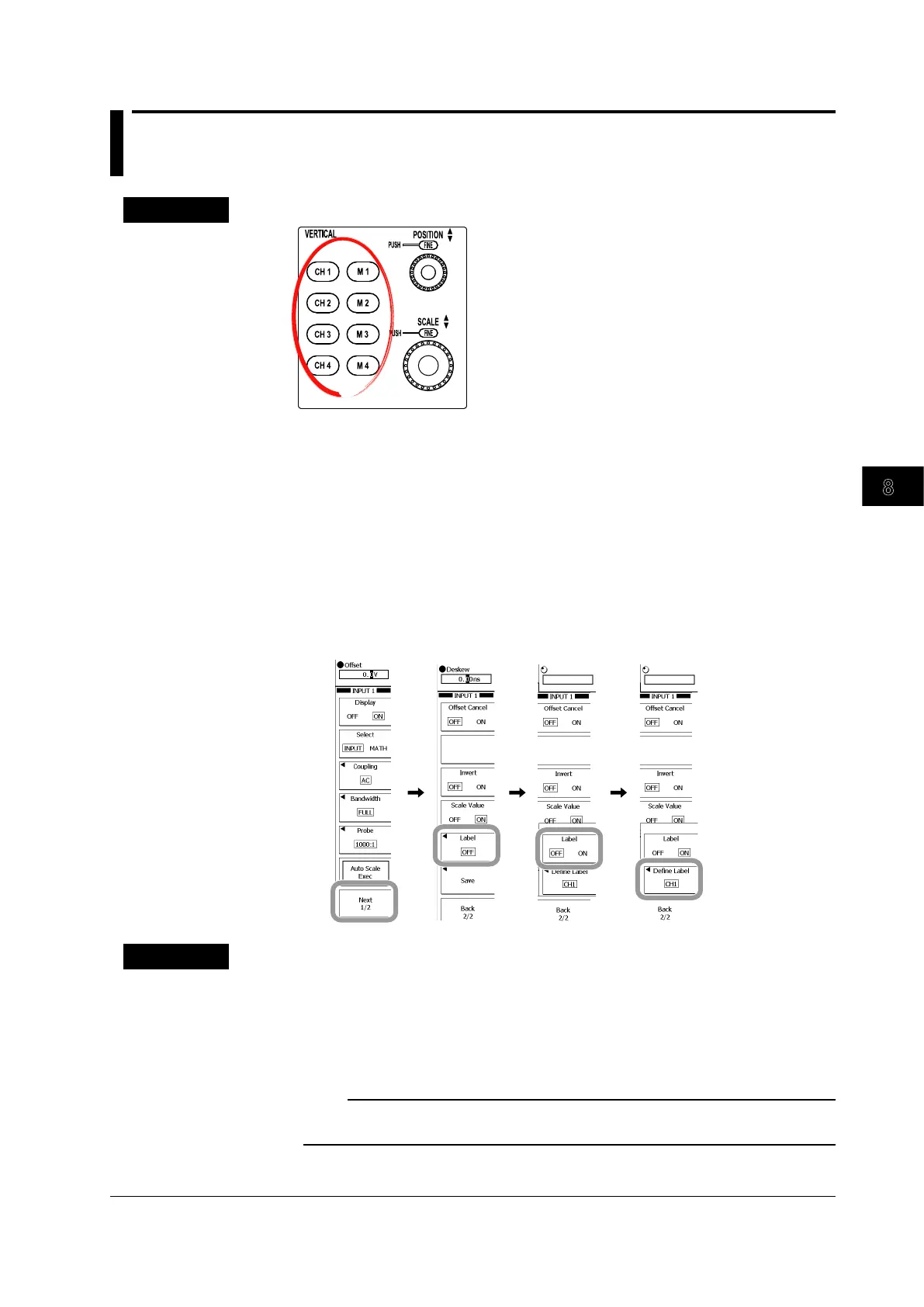

Procedure

Press one of the CH1 to CH4 or M1 to M4 keys to select the channel.

Press the Next 1/2 soft key.

Press the Label soft key.

Selecting Whether or Not to Display Labels

Press the Trace Label (signal label) soft key to select ON or OFF.

Setting the Label

Press the Define Label soft key. A keyboard appears.

Input the label according to the procedure given in section 4.2.

Explanation

Label

You can set the label of each channel using up to eight characters.

Displaying Labels

You can select whether or not to display labels.

Note

The label may not be displayed if the waveform area is small, depending on the display format

and zoom format.
