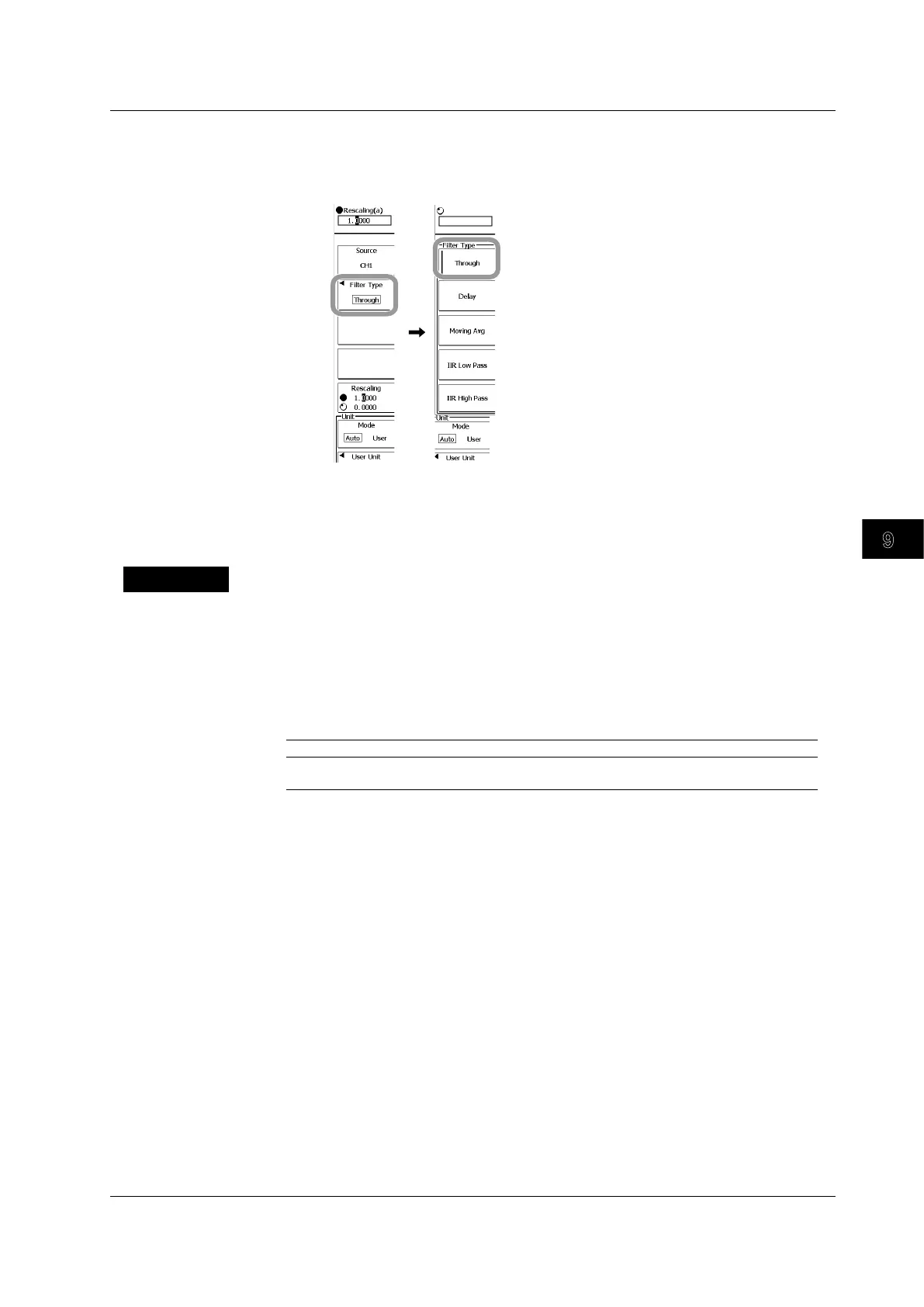

Setting the Filter Type
5.
Press the Filter Type soft key.
6.
Press the Through soft key.
Setting the Scaling to Apply to Computed Results, the Unit, and the
Display Range
Carry out steps 6 to 13 in section 9.1.
Explanation
Using the set scaling factor A and offset value B, the following expression is evaluated,
and the scaled value obtained is used to display cursor measurement values and values
from automatic waveform parameter measurement. It is also possible to add a unit
indication to the scaled value.
Y = AX + B (X = measured value; Y = linear scaling result)
Setting Scaling Coefficient A and Offset Value B
Selectable range of A and B –10.000E+30 to +10.000E+30
Default settings A 1.0000E+00
B 0.0000E+00
Waveform to Be Computed
Select from CH1 to CH4 or from REF1 to REF4. When CH1 to CH4 on the front panel
are used for operation, the waveform to be computed is fixed to the channel that is being
operated.
9.2 Performing Linear Scaling
