Computation
9-9
IM 701310-01E
3
2
1
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
App
Index

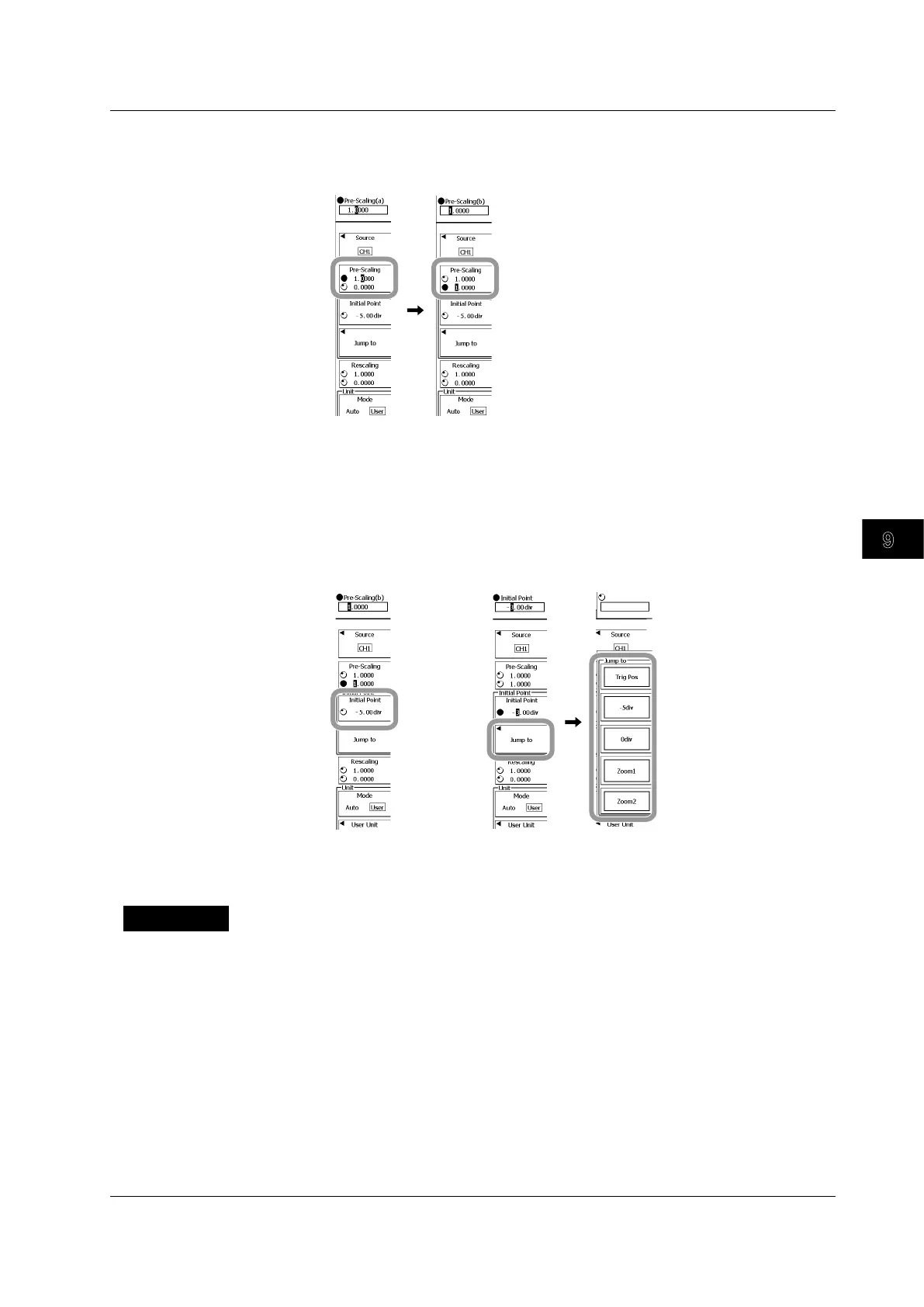

Setting the Input Source Scaling Prior to the Operation
5.
Press the Pre-Scaling soft key and change the rotary knob target.
6.
Use the rotary knob to set pre-scaling.
Setting the Operation Initial Point
7.
Press the Initial Point soft key.
8.
Use the rotary knob to set the initial point, or else press the Jump to soft key.
9.
If you pressed the Jump to soft key, select the Jump destination. Press the Jump
destination soft key.
Setting the
initial point
Selecting the
Jump destination
Setting the Scaling to Apply to Computed Results, the Unit, and the
Display Range
Carry out steps 6 to 13 in section 9.1.
Explanation
The specified trace waveform is integrated.
Operation Source Waveform
Select from CH1 to CH4 or from REF1 to REF4. When CH1 to CH4 on the front panel
are used for operation, the waveform to be computed is fixed to the channel that is being
operated.
Setting the Operation Initial Point
Set the initial point of the operation.
• Item: –5 div to 5 div
• Initial value for div resolution: –5 div
The following points can be set directly (Jump to).
Trig Pos (trigger position), –5 div, 0 divisions, Zoom1 (Center of Zoom 1 enlarged
position), Zoom2 (Center of Zoom 2 enlarged position)
9.4 Performing Integration
