Selecting Measurement Items
7.

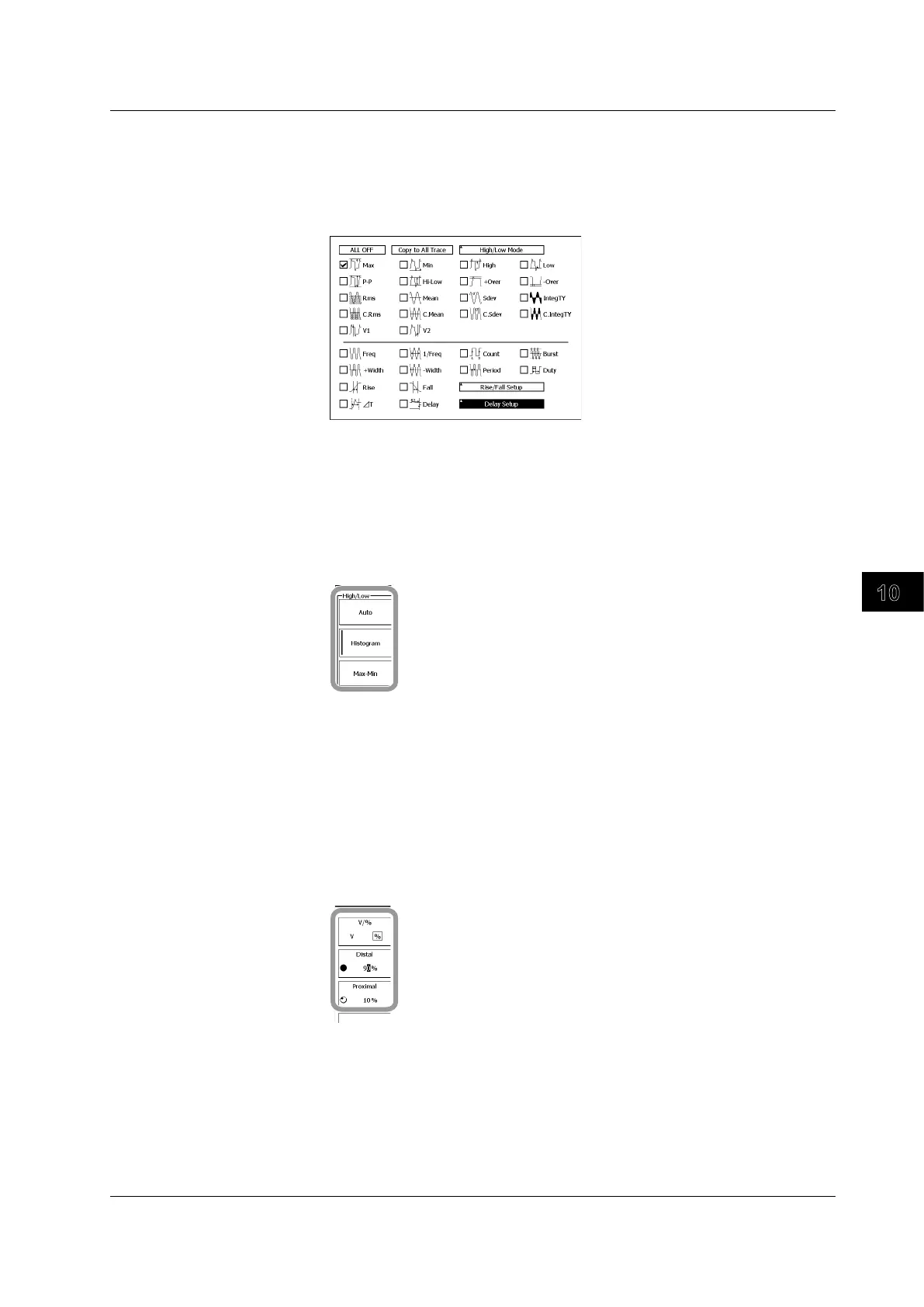

Use the rotary knob and SET to select measurement items.
If you select ALL OFF and press
SET
, you can turn OFF all items at once.
If you select Copy to All Trace and press
SET
, you can copy the settings to all traces (sources)
in the same area.
8.
If necessary, repeat steps 6 and 7.
• Set the High/Low Mode (how high and low is determined)
9.
Use the rotary knob and SET to select High/Low Mode.
10.
Press the Auto, Histogram, or Max-Min soft key to select how high and low
values will be determined.
• Setting the Distal and Proximal Values
(Defines the measurement points that are used to determine Rise and Fall.)
11.
Use the rotary knob and SET to select Rise/Fall Setup.
12.
Press the V/% soft key to set the unit to V or %.
The distal and proximal unit displayed on the screen changes to the specified unit.
13.
Press the Distal soft key. Use the rotary knob to set the distal value.
14.
Press the Proximal soft key. Use the rotary knob to set the proximal value.
15.
Press ESC to return to the previous screen.
10.2 Performing Automated Measurement of Waveform Parameters
To Next Page
