Selecting Measurement Items
9.

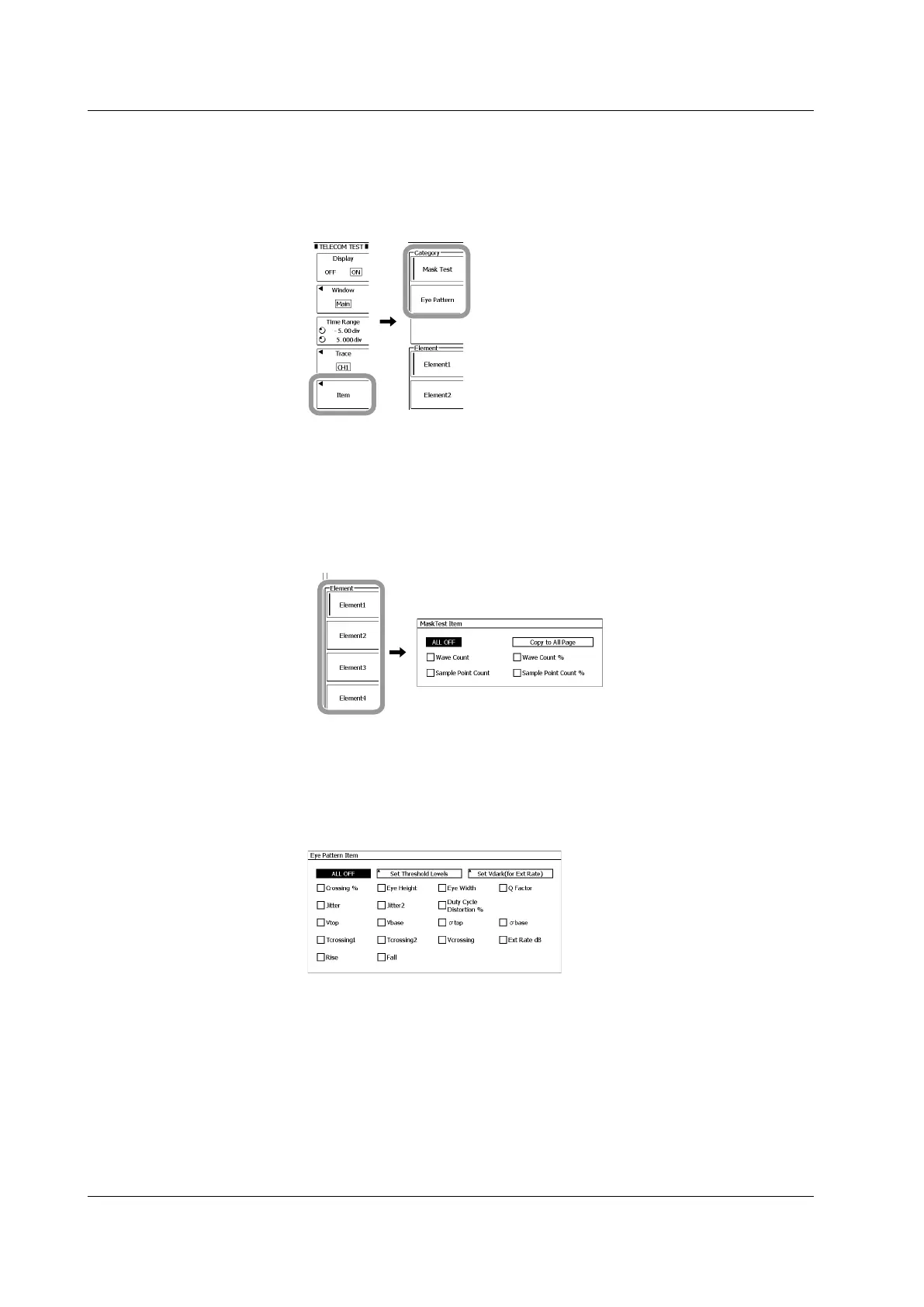

Press the Item soft key.
10.
Press the Mask Test or Eye Pattern soft key.
• If you select Mask Test, proceed to step 11.
• If you select Eye Pattern, proceed to step 13.
Selecting Mask Test Items
11.
Press the appropriate soft key from Element1 to Element4 to select the element.
12.
Use the rotary knob and SET to select the test items.
• If you select ALL OFF and press
SET
, you can turn OFF all items at once.
• If you select Copy to All Page and press
SET
, the test items selected in step 11 will be
copied to all other elements.
Proceed to step 24 on page 10-31.
Selecting Eye Pattern Measurement Items
13.
Use the rotary knob and SET to select measurement items.
If you select ALL OFF and press
SET
, you can turn OFF all items at once.
