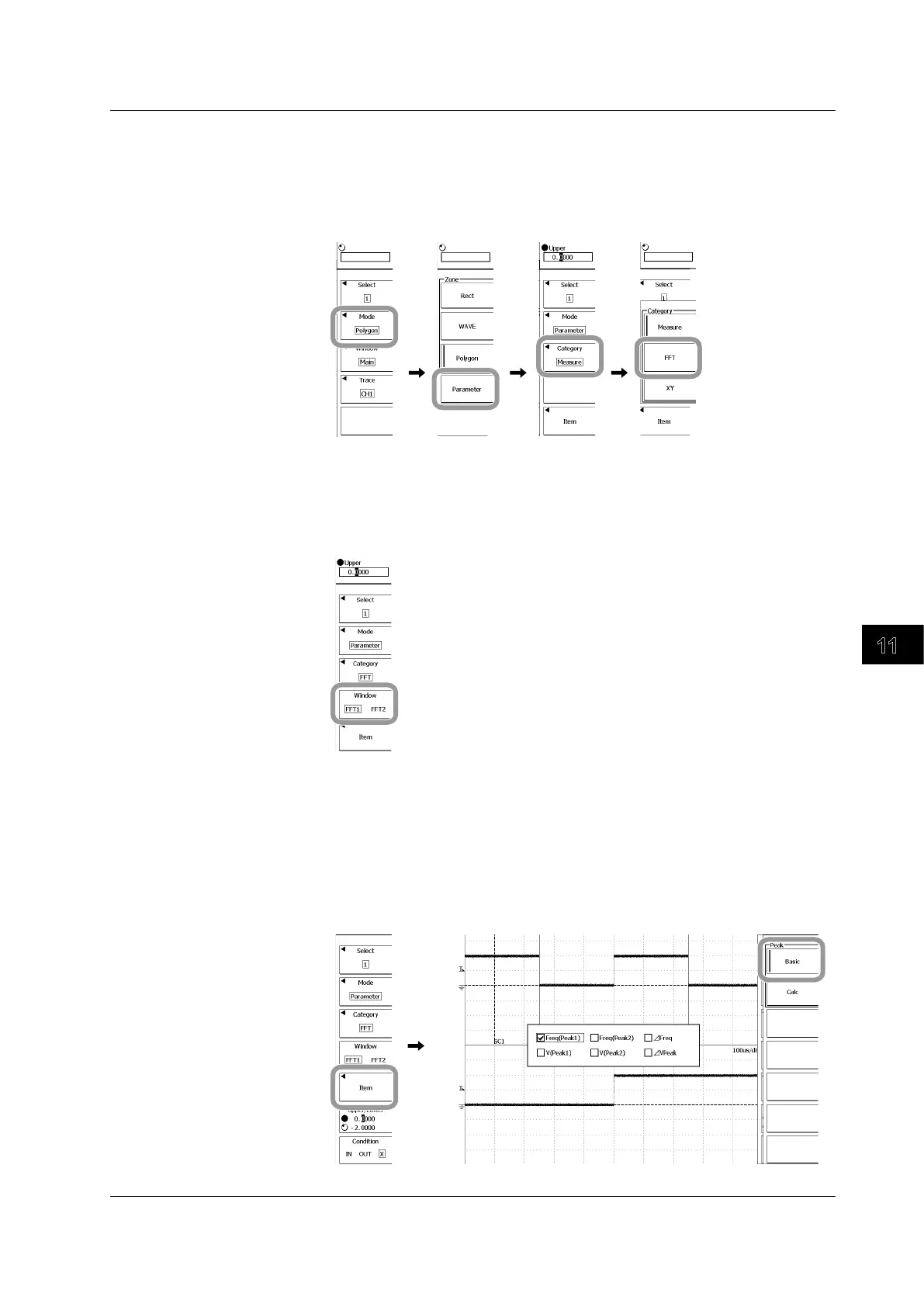

Setting the Search Mode and Category
7.
Press these soft keys: Mode > Parameter.
This sets the search mode to Parameter.
8.
Press these soft keys: Category > FFT.
This sets the parameter category to FFT.
Selecting a Search Source Item and Calculation
• Selecting the Source Window
9.
Press the Window soft key to select FFT1 (the results of the analysis of
Window1) or FFT2 (the results of the analysis of Window2).
• Selecting an Analysis Item
10.
Press the Item soft key.
11.
Press the Basic or Calc soft key.
• If you select Basic, proceed to step 12.
• If you select Calc, proceed to step 13.
12.
Use the rotary knob and SET to select an analysis item.
Proceed to step 14.
11.6 Searching History Waveforms Using FFT Parameters (FFT History Search)
