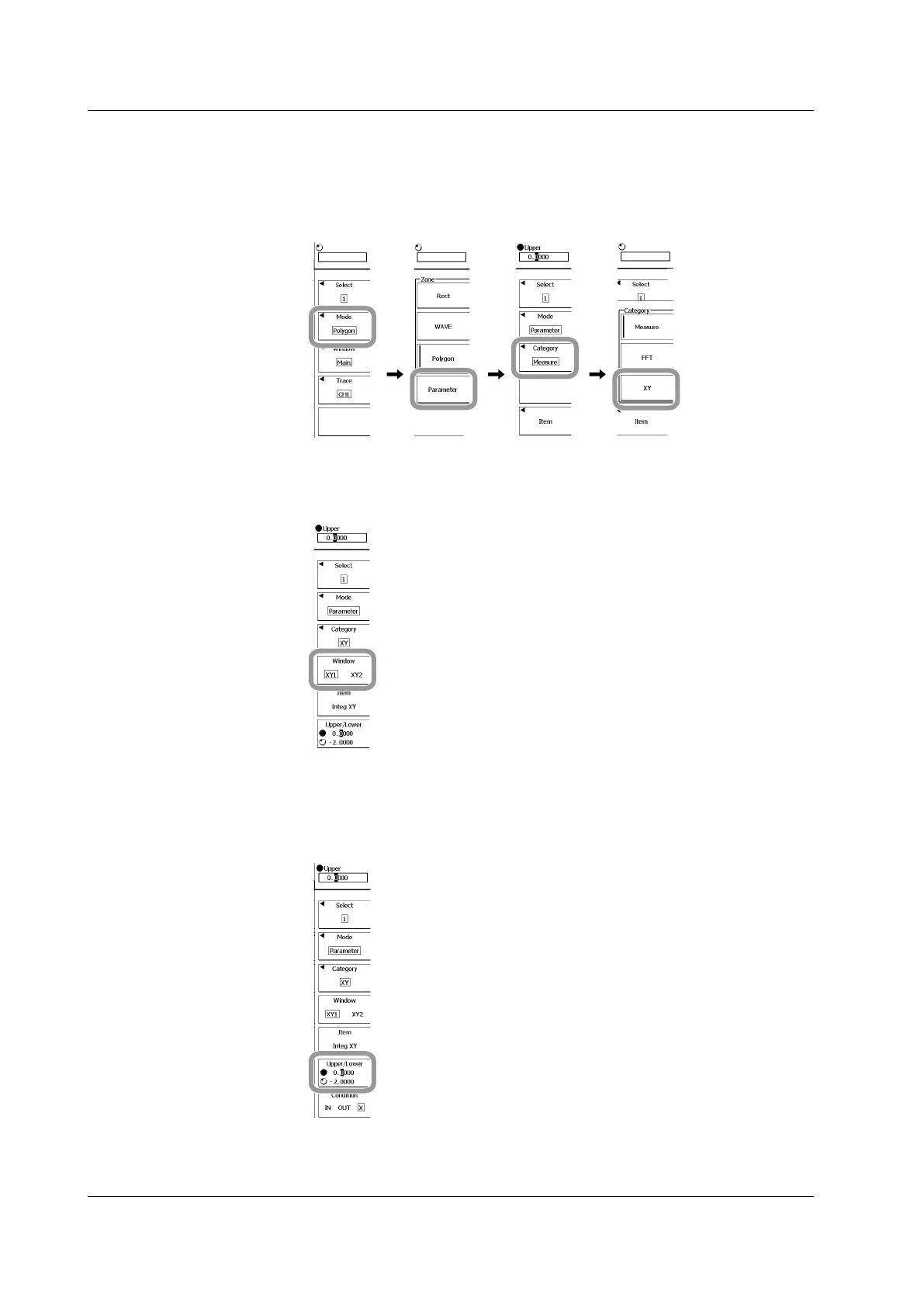

Setting the Search Mode and Category

Press these soft keys: Mode > Parameter.

This sets the search mode to Parameter.

Press these soft keys: Category > XY.

This sets the parameter category to XY waveform parameters.

Selecting a Search Source Window

Press the Window soft key to select XY1 (the X-Y waveform of Window1) or XY2

(the X-Y waveform of Window2).

Setting the Upper and Lower Limits for the Selected XY Waveform

Parameters

10.

Press the Upper/Lower soft key to select the limit that you will set.

11.

Use the rotary knob to set the upper and lower limits.

11.7 Searching History Waveforms Using XY Waveform Parameters (XY History Search)
