Setting the Data Type
4.

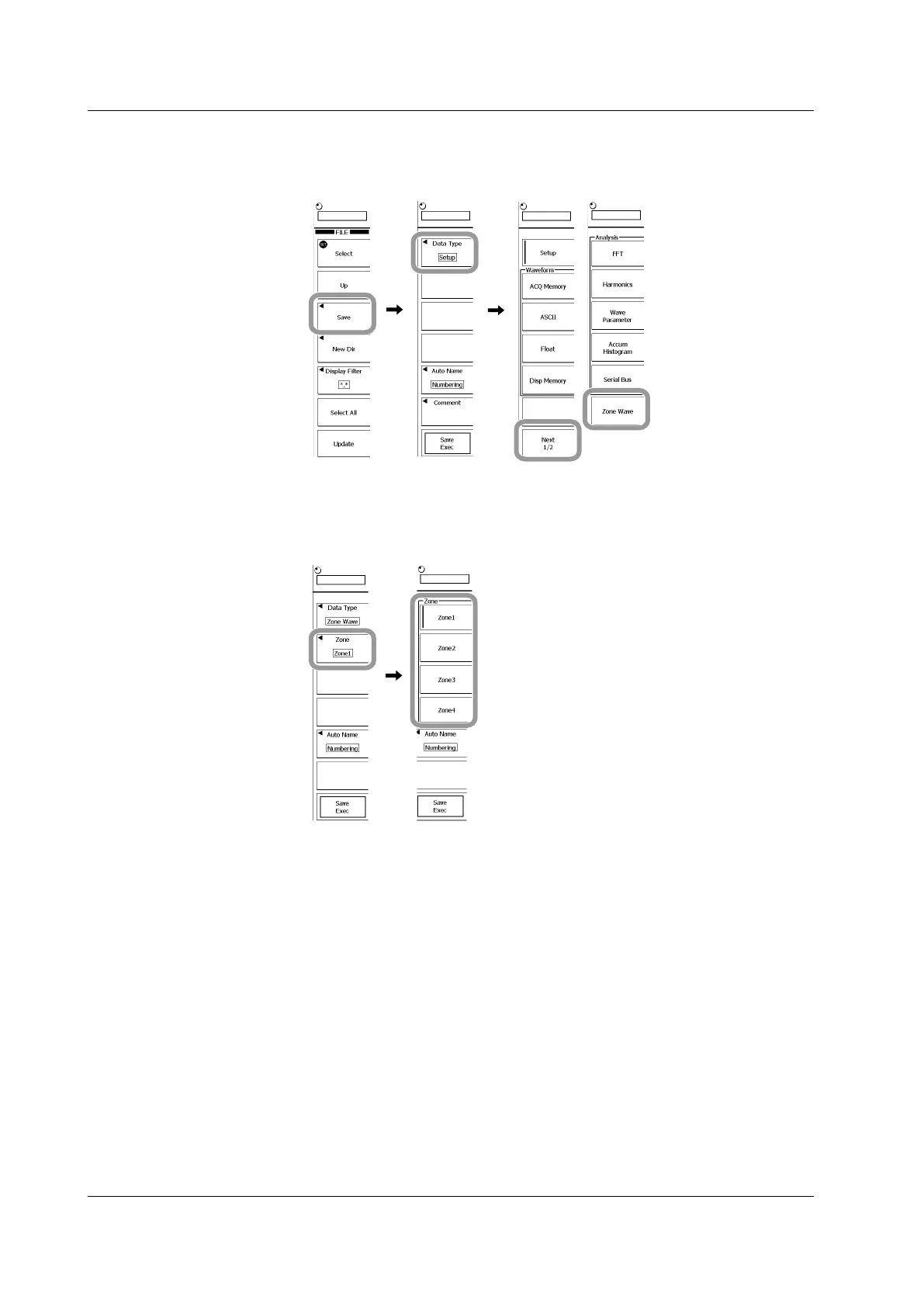

To set the data type to zone, press these soft keys: Save > Data Type > Next 1/2
> Zone Wave.
Selecting a Zone To Be Saved
5.
Press the Zone soft key.
6.
Press a zone number soft key to select the zone you want to save.
Setting a File Name and Comments
7.
Set the file name and comments according to steps 5 to 13 in section 13.4.
Executing the Save
8.
Press the Save Exec soft key.
The data is saved to the directory indicated by Path=...... At the same time, the Save Exec
soft key changes to the Save Abort soft key.
While the data is being saved, the file access icon is displayed at the lower left corner of the
screen.
Aborting a Save
9.
Press the Save Abort soft key.
The save operation is aborted. At the same time, the Save Abort soft key changes to the
Save EXEC soft key.
Specifying the Files to Be Displayed in the File List Dialog Box
10.
Specify the files you want to display according to steps 16 to 19 in section 13.4.
13.7 Saving/Loading Waveform Zones, Polygonal Zones, and Mask Patterns
