Selecting the Data Type
4.

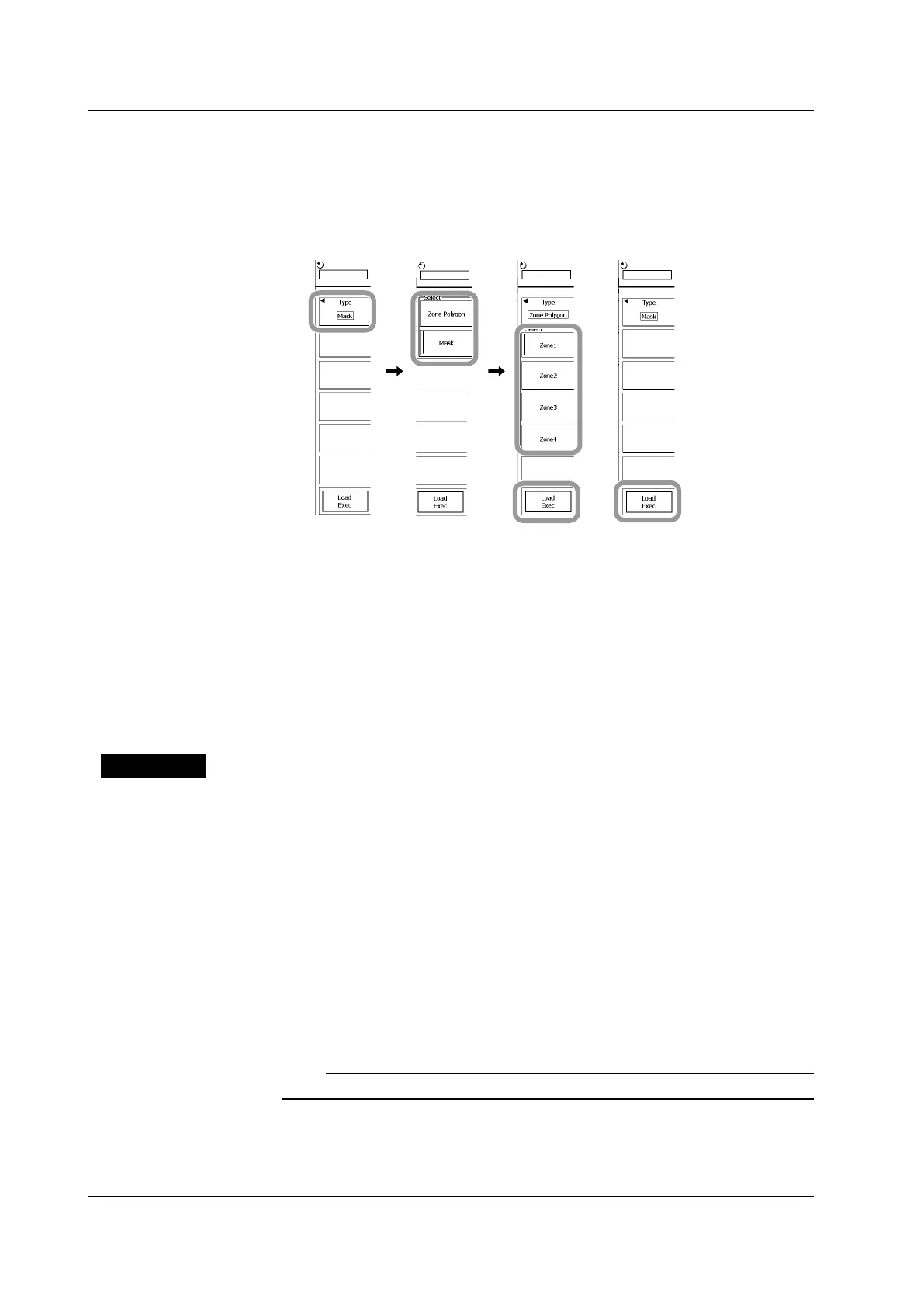

Press the Type soft key.
5.
Press the Zone Polygon or Mask soft key to select the data type.
6.
If you select Zone Polygon in step 5, select a zone number.
When Mask
is selected
When Zone Polygon
is selected
Executing the Load
7.
Press the Load EXEC soft key.
The selected file is read from the directory indicated in Path=...... At the same time, the Load
EXEC soft key changes to the Load Abort soft key.
Aborting a Load
8.
Press the Load Abort soft key.
The load operation is aborted. At the same time, the Load Abort soft key changes to the
Load EXEC soft key.
Explanation
You can search for GO/NO-GO determination and history waveform, and save and load
waveform zones that are used for zoom and search. The waveform zone can be saved in
Zone 1 through Zone 4.
Savable waveform zones
Waveform zones
Loadable zones and pattern
Waveform zones, polygonal zones, and mask patterns
Data File Name Extensions
Waveform zones: .ZWF
Mask patterns; polygonal zones: .MSK
Note
Pressing a key other than the Abort key while the save is in progress will cause an error.
13.7 Saving/Loading Waveform Zones, Polygonal Zones, and Mask Patterns
