Preparation for using an adaptor

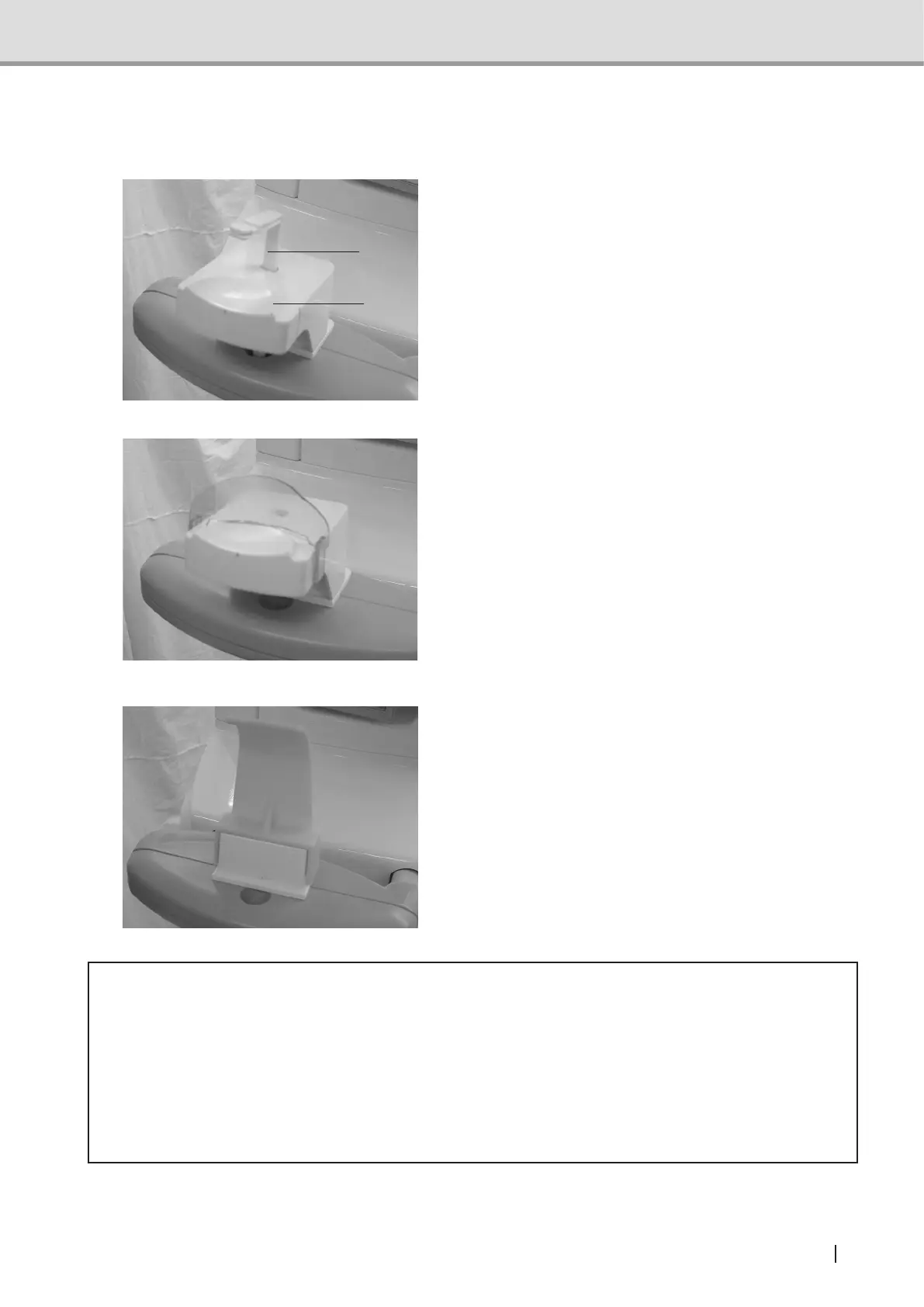

Insert an adaptor appropriate for the selected exposure mode into the chin rest block.
1 Insert a bite block (2) into the chin rest
block (1).
2 To acquire the images of the patient
with edentulous jaw or with no front
teeth, insert the adaptor for edentulous
jaw into the chin rest block.
3 Remove the chin rest and attach the
TMJ adaptor to the chin rest block
base.
Use the TMJ adaptor (CHILD) for
the child patient to acquire the
highest quality of images of the
temporomandibular joint.
* Caution
• Be sure to use the adaptor appropriate for the Exposure conditions. If not, high quality of
images cannot be acquired.
• Use a new bite block for each patient to prevent infectious diseases. Wipe off the bite
block with alcohol-dampened cloth.
• Always clean the chin rest block, adaptor for the patient with endentulous jaw, and TMJ
adaptor after each patient.
Panoramic mode
2
1
Panoramic mode
(Patient with edentulous jaw)
TMJ mode
