5.5 Stream Multiple Resolutions

The ZCube-21 supports simultaneous encode into up to three different resolutions, bit rates and output

formats. Each output stream can be set using a separate channel tab. If the CH2 tab is not present, you

can create a second channel by clicking on the + tab.

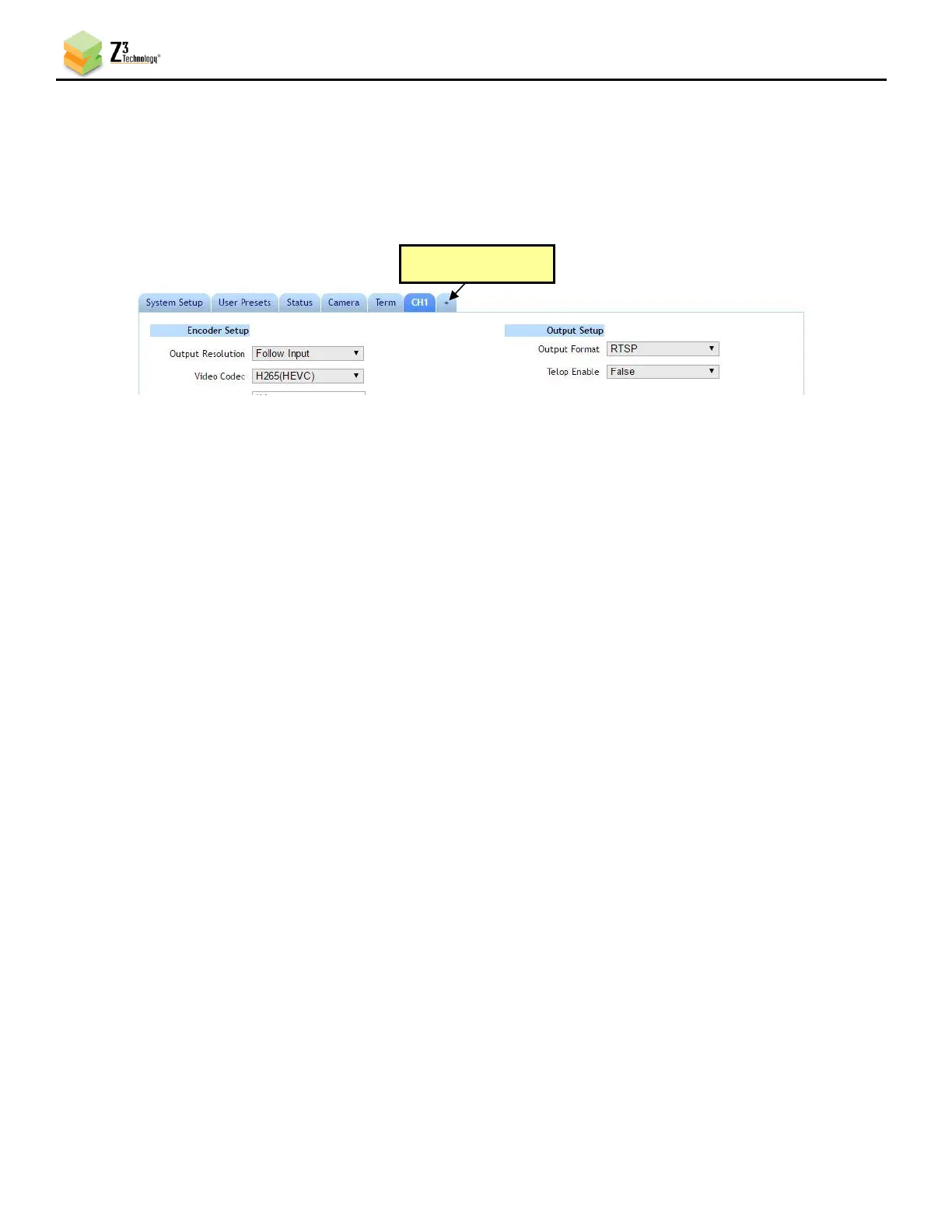

Figure 25 Create Additional Output Channels
