ZCube-21 User Guide

DOC-USR-0253-01

______________________________________________________________________________________

Z3 Technology, LLC ♦ 100 N 8

ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702

8.2 ZEUS



DMD-4K Decoder

When in H.265 mode, the ZCube-21 is compatible with the ZEUS DMD-4K, also manufactured by Z3

Technology. Please contact Z3 for more information.

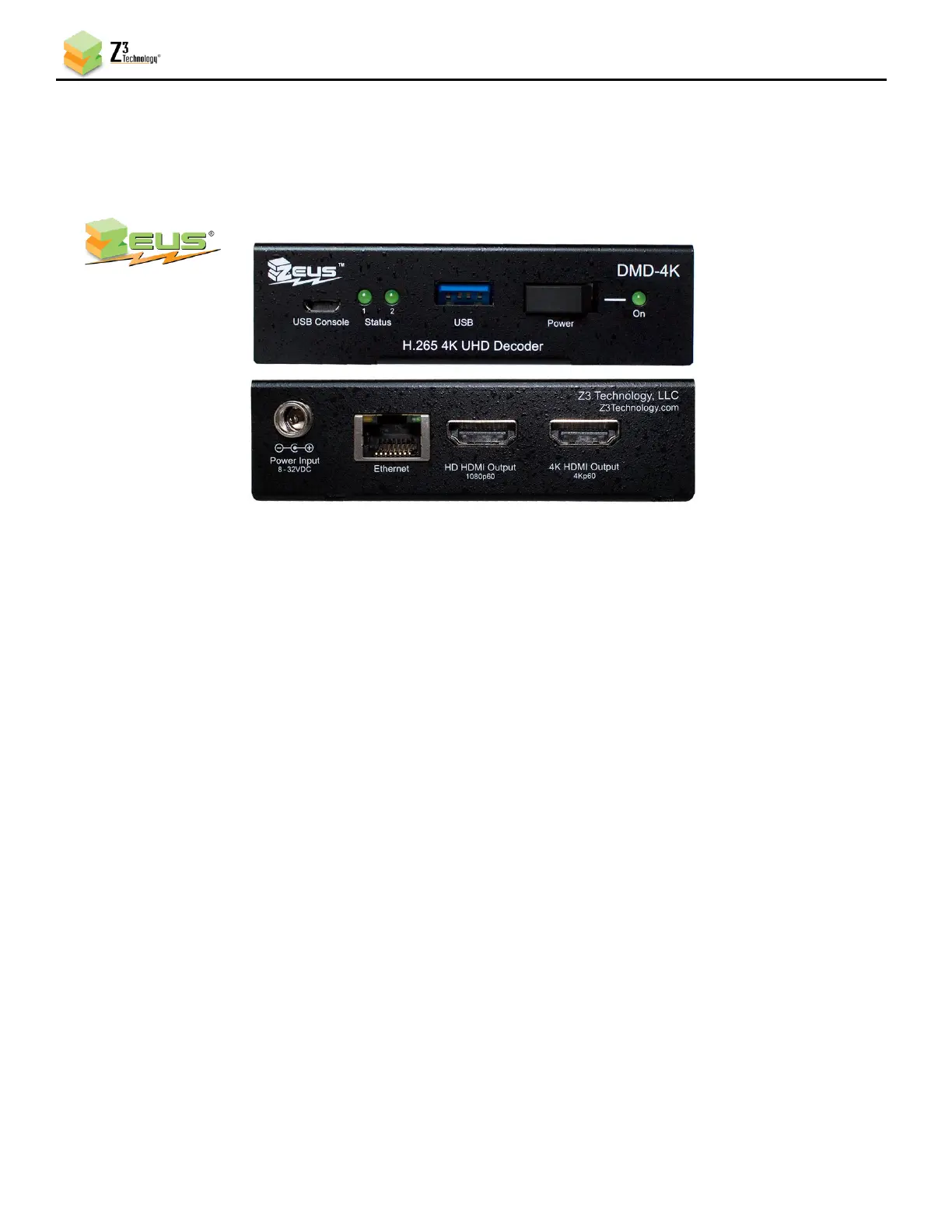

Figure 45 ZEUS DMD-4K H.265 Decoder

ZEUS is a registered trademark of Z3 Technology, LLC.
