8.1.2 DXVA Checker

(1) Install DXVA Checker if necessary

(2) Verify the HEVC_VLD_Main supports under Decoder Devices for HW Decoding.

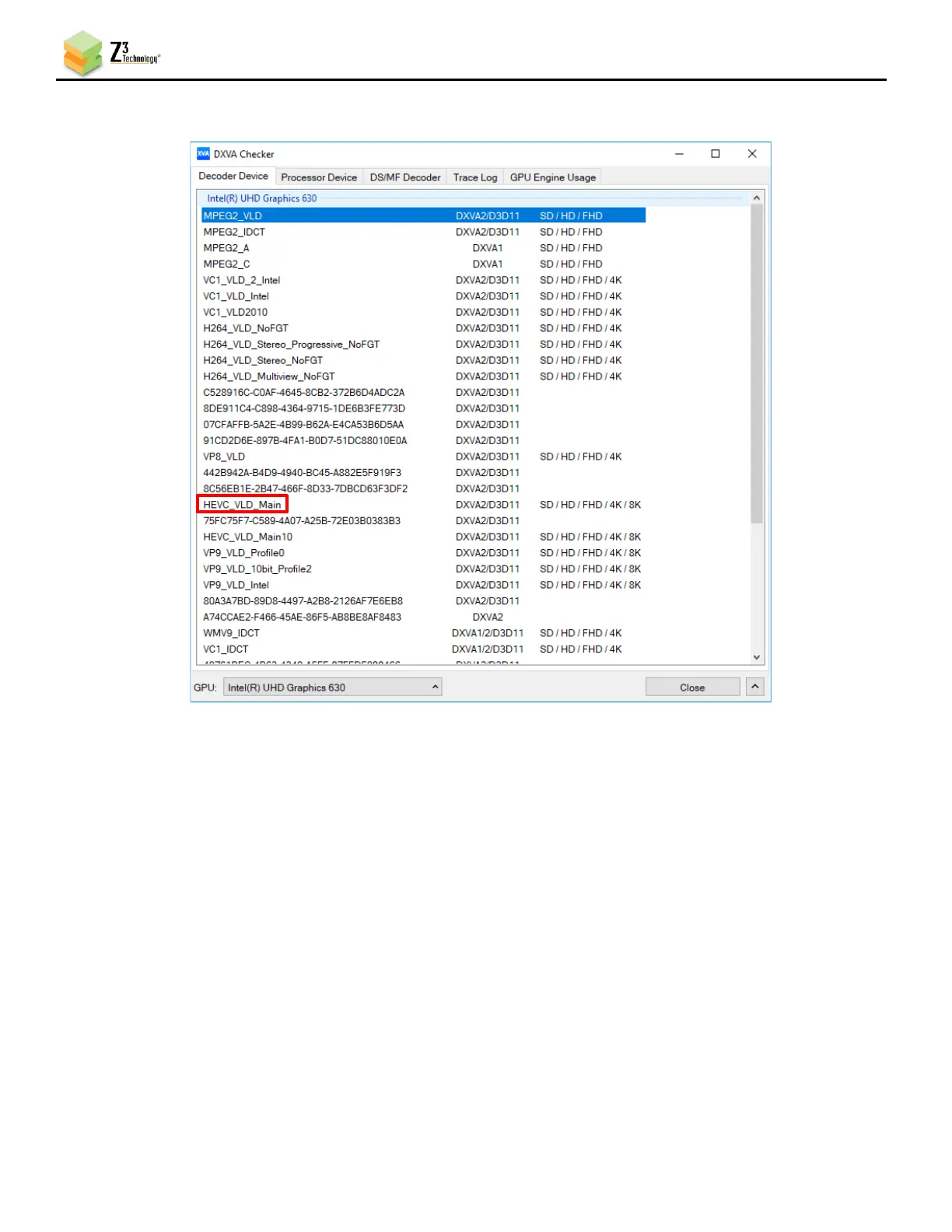

Figure 42 DXVA Checker
