Zebra FX7500 Integrator Guide

A - 4 FX7500 RFID Reader Integrator Guide
Cable Pinouts
10/100bT Ethernet / POE Connector
The 10/100BT Ethernet / POE connector is an RJ45 receptacle. This port complies with the IEE 802.3af
specification for Powered Devices.

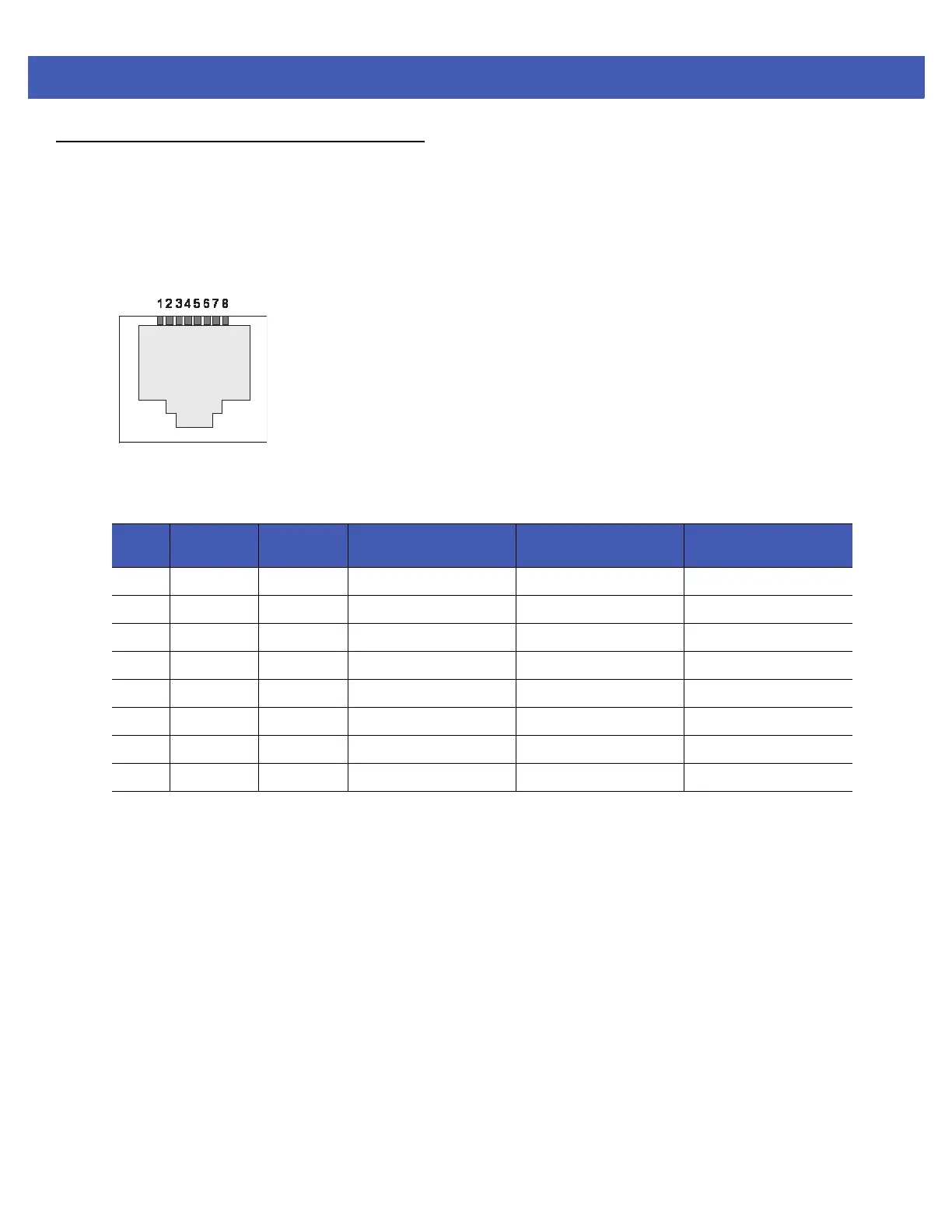

Figure A-1 Ethernet Connections
Table A-2 10/100bT Ethernet / POE Connector Pinout
Pin Pin Name Direction Description
POE Mode A
Function
POE Mode B
Function
Pin 1 TX-P O TX Data Positive Positive Vport
Pin 2 TX-N O TX Data Negative Positive Vport
Pin 3 RX-P I RX Data Positive Negative Vport
Pin 4 NC - No Connect Positive Vport
Pin 5 NC - No Connect Positive Vport
Pin 6 RX_N I RX Data Negative Negative Vport
Pin 7 NC - No Connect Negative Vport
Pin 8 NC - No Connect Negative Vport

Zebra FX7500 Specifications

General

Interface	USB
Product color	White
LED indicators	Activity, Power, Status
Housing material	Aluminium, Metal, Plastic
Battery type	-
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 55 °C
Operating relative humidity (H-H)	5 - 95 %
Harmonized System (HS) code	84719000

Weight and Dimensions

Depth	43.2 mm
Width	149.9 mm
Height	195.6 mm
Weight	860 g
