GPIO
Select GPIO to view the GPIO Control Page. This window allows viewing and setting the status for GPI pins.

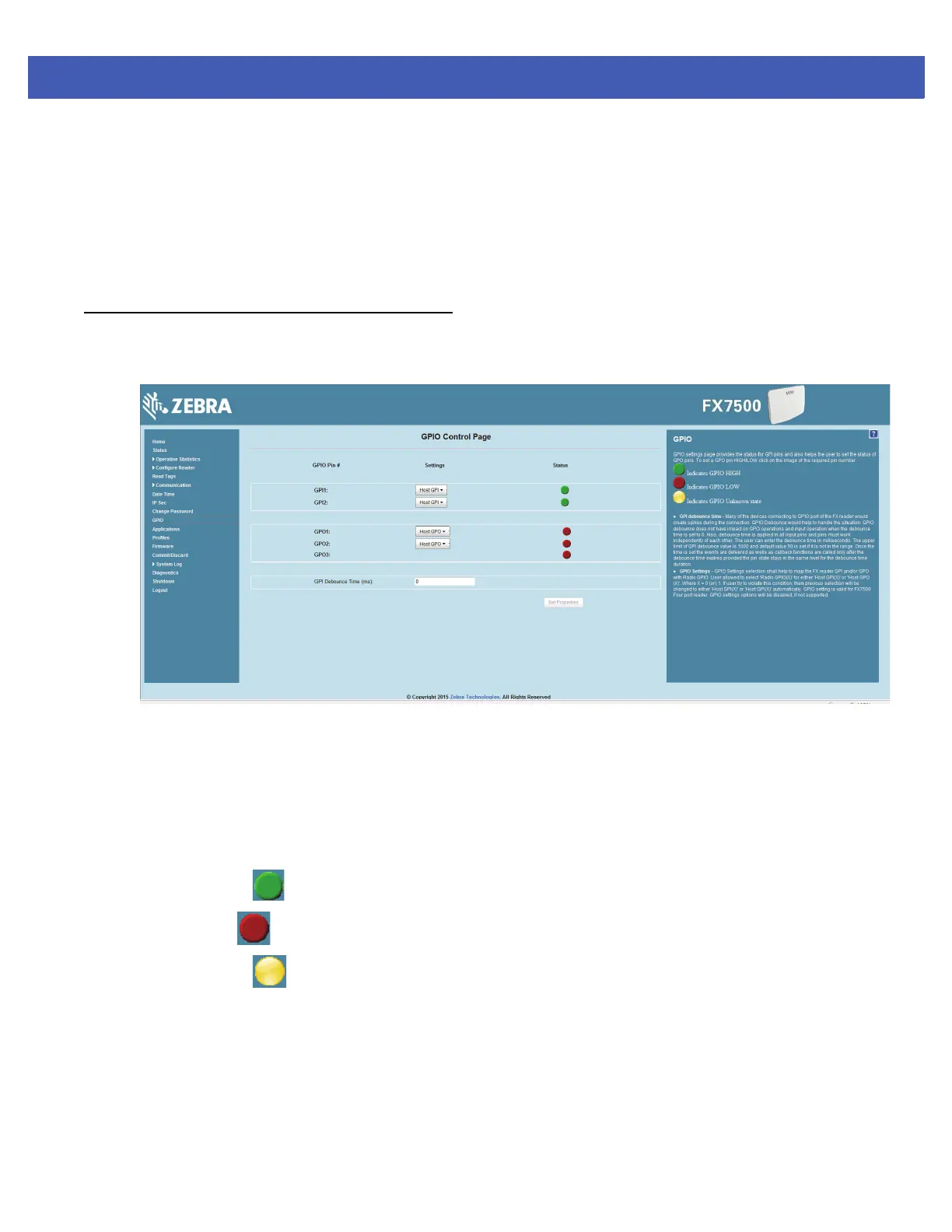

Figure 4-30
GPIO Control Page
•
Settings - Map the reader GPI and/or GPO with the radio GPIO. Select either Radio or Host for GPIx or
GPOx where x = 0 or 1. An attempt to violate this condition changes the selection to either Host GPIx or
Host GPOx automatically. These settings are valid for FX7500 four port readers and are disabled if not
supported.
•
Status - To set a GPO pin high or low, click on the image next to the required pin number:
• Green indicates GPIO HIGH
• Red indicates GPIO LOW
• Yellow indicates GPIO unknown
•
GPI Debounce Time - Enter a value of up to 1000 milliseconds to minimize spikes that can occur when
a device connects to the GPIO port of the FX reader. The default is 50. Debounce time applies to all input
pins, and pins must work independently of each other. Events and callback functions occur only after the
debounce time expires, provided the pin state remains at the same level for the debounce time duration.
GPIO debounce does not impact GPO and input operations when set to 0.
•
Set Properties - Click this when all selections are made.
