1 - 4 FX7500 RFID Reader Integrator Guide
Step 4, Set Region
Set the region of operation. Setting the unit to a different region is illegal.
1. In the Configure Region Settings window, select the region from the drop-down menu.

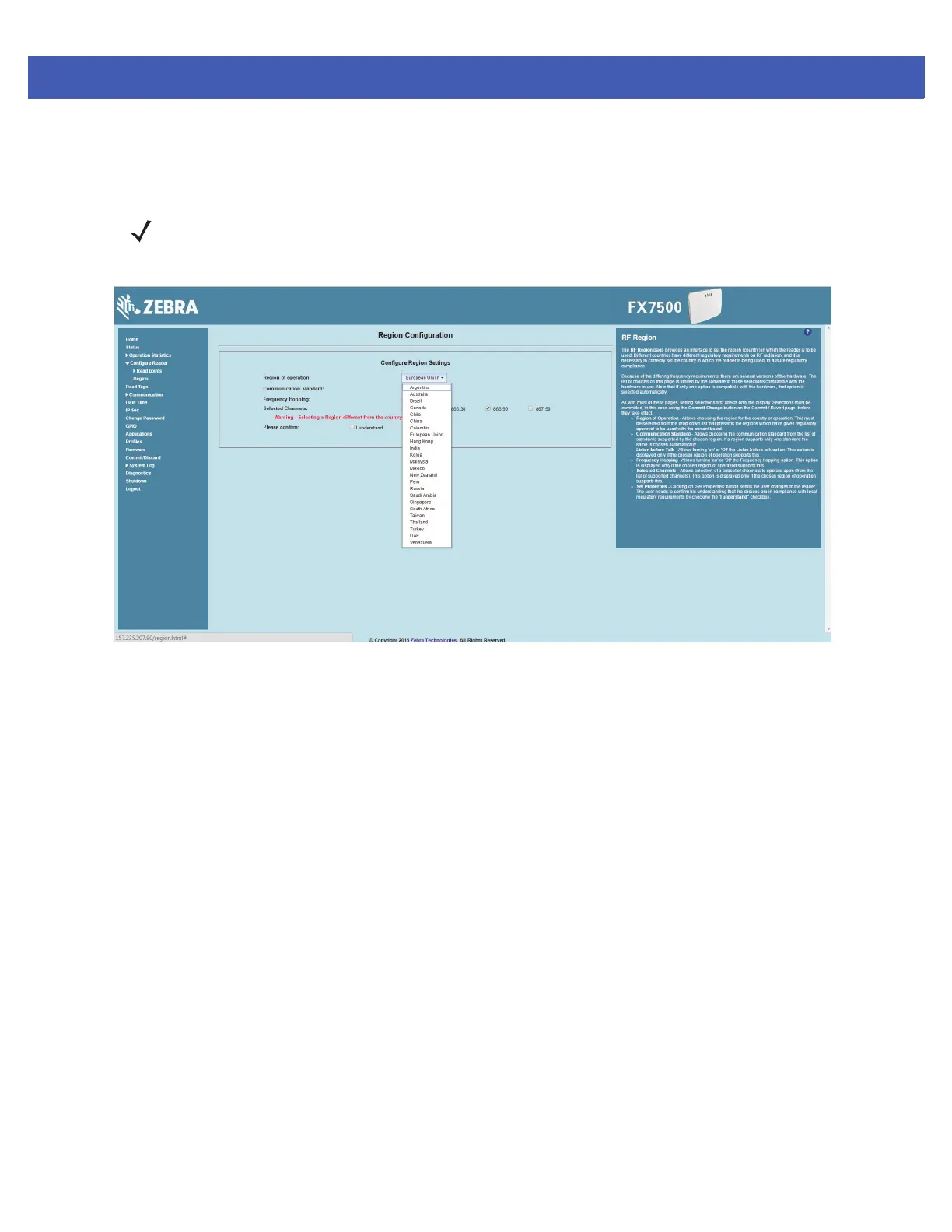

Figure 1-3
Selecting the Region
2. Select the Communication Standard, if applicable.
3. Select Frequency Wireless IPSy Hopping, if applicable.
4. Select the appropriate channel(s), if applicable.
5. Select the I understand check box.
NOTE Region configuration is not available for readers configured to operate in the United States region (under
FCC rules). In this case, skip this step.

Table of Contents

Other manuals for Zebra FX7500

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Zebra FX7500 and is the answer not in the manual?

Zebra FX7500 Specifications

General IconGeneral
InterfaceUSB
Product colorWhite
LED indicatorsActivity, Power, Status
Housing materialAluminium, Metal, Plastic
Battery type-
Storage temperature (T-T)-40 - 70 °C
Operating temperature (T-T)-20 - 55 °C
Operating relative humidity (H-H)5 - 95 %
Harmonized System (HS) code84719000
Weight and Dimensions IconWeight and Dimensions
Depth43.2 mm
Width149.9 mm
Height195.6 mm
Weight860 g
