Zebra FX7500 Integrator Guide

5 - 6 FX7500 RFID Reader Integrator Guide
Network Type: WEP128

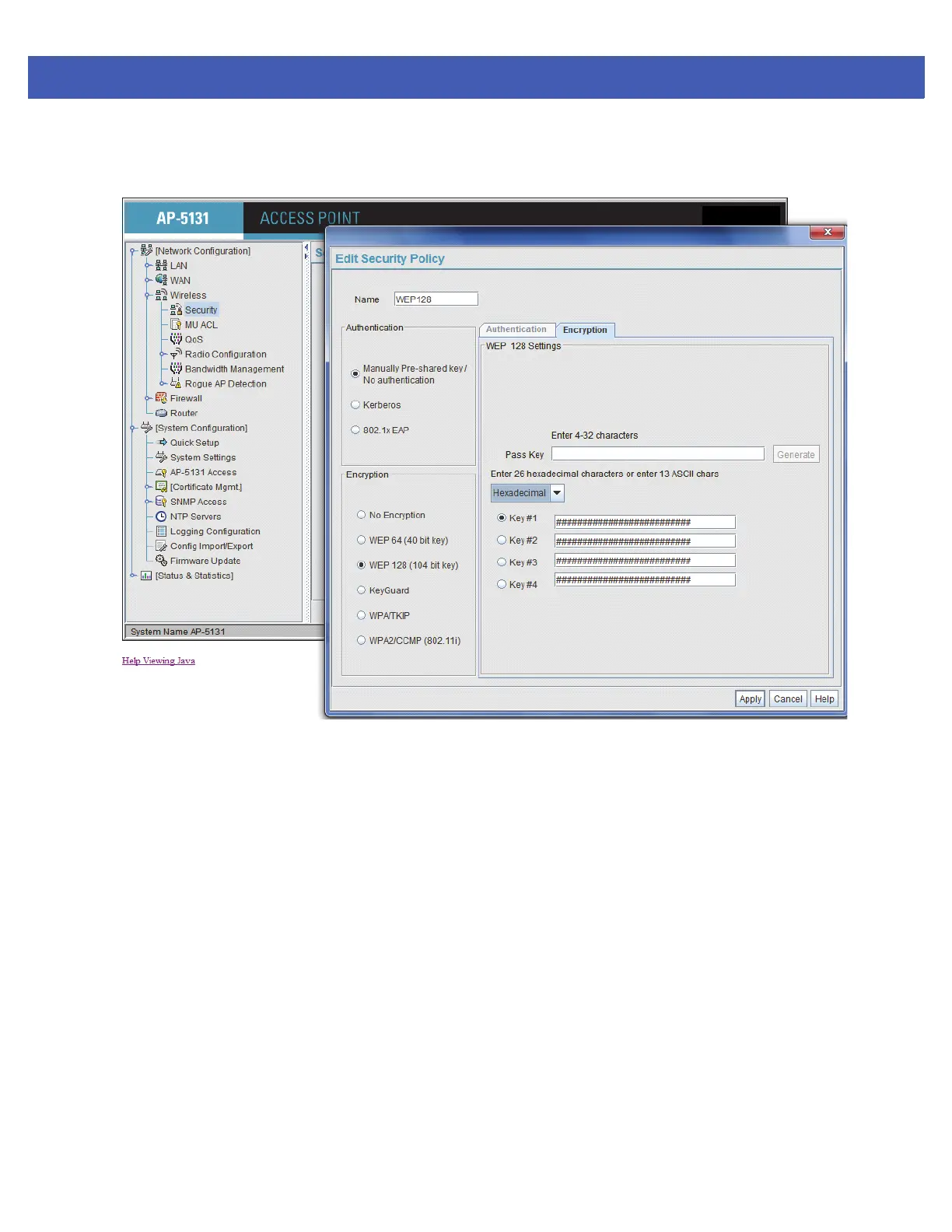

Figure 5-4 AP 5131, WEP128
Create a security policy WEP128 and select WEP from the Encryption menu. Enter an ASCII password
between 13 characters or HEX password of 26 characters. Select Apply and associate the ESSID with a
security policy.

Zebra FX7500 Specifications

General

Interface	USB
Product color	White
LED indicators	Activity, Power, Status
Housing material	Aluminium, Metal, Plastic
Battery type	-
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 55 °C
Operating relative humidity (H-H)	5 - 95 %
Harmonized System (HS) code	84719000

Weight and Dimensions

Depth	43.2 mm
Width	149.9 mm
Height	195.6 mm
Weight	860 g
