Zebra FX7500 Integrator Guide

Administrator Console 4 - 9
Reader Administrator Console
The Reader Administrator Console main window appears after successfully logging into the reader.

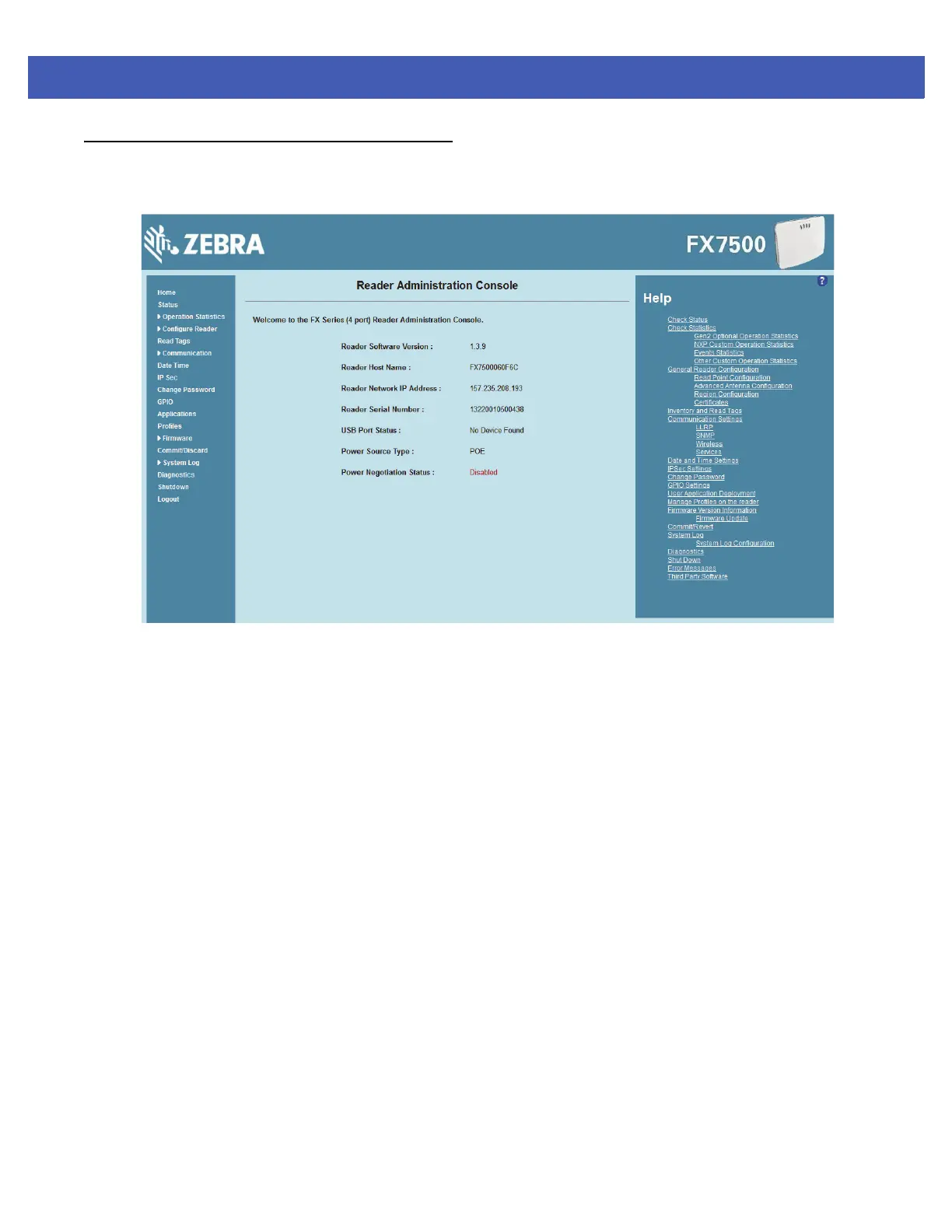

Figure 4-6 Reader Administrator Console Main Window
Administrator Console Option Selections
Click an item from the selection menu on the left to select:
• Status - see Status on page 4-10
• Operation Statistics - see Reader Statistics on page 4-11
•
Gen2 Optional - see Reader Gen2 Optional Operation Statistics on page 4-12
•
NXP - see NXP Custom Command Operation Statistics on page 4-13
•Events
- see Event Statistics on page 4-14
•
Other Custom - see Other Custom Command Operation Statistics on page 4-15
• Configure Reader - see Configure Reader on page 4-16
•
Read Points - see Read Points on page 4-17
•
Advanced - see Read Points - Advanced on page 4-18
•
Region - see Configure Region on page 4-19
•
Certificates - see Certificates on page 4-20
• Read Tags - see Read Tags on page 4-30

Zebra FX7500 Specifications

General

Interface	USB
Product color	White
LED indicators	Activity, Power, Status
Housing material	Aluminium, Metal, Plastic
Battery type	-
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 55 °C
Operating relative humidity (H-H)	5 - 95 %
Harmonized System (HS) code	84719000

Weight and Dimensions

Depth	43.2 mm
Width	149.9 mm
Height	195.6 mm
Weight	860 g
