Zebra FX7500 Integrator Guide

2 - 4 FX7500 RFID Reader Integrator Guide
Versions and Kits
FX7500 RFID readers are available in a 2-port or 4-port version, individually (reader and mounting bracket) or
in a kit that includes the reader, mounting bracket, an antenna, and a power supply. For detailed kit information,
see FX7500 Kits on page A-1.
FX7500 RFID Reader

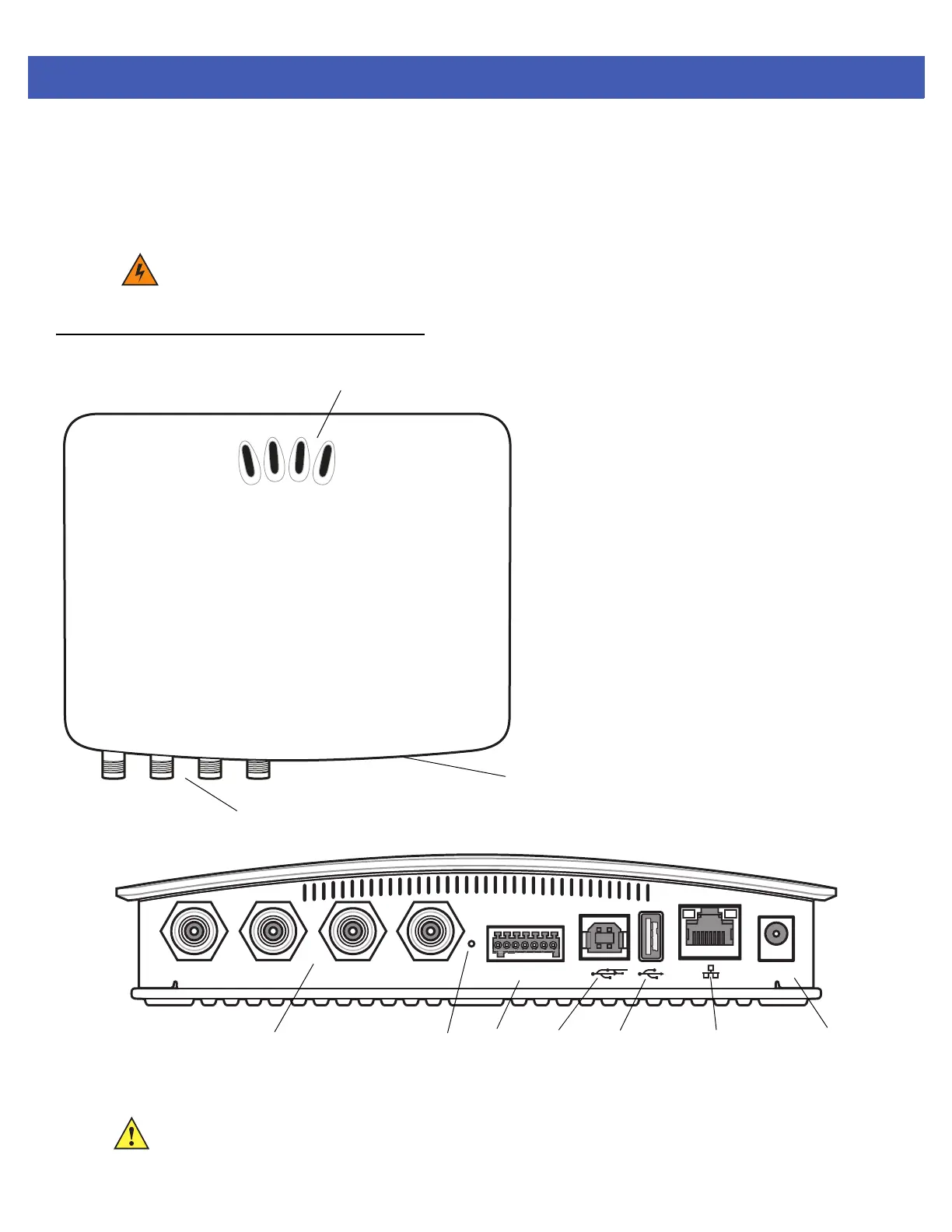

Figure 2-3 FX7500 RFID Reader
Figure 2-4 FX7500 RFID Reader Rear Panel Connections
WARNING! For Mounting in Environmental Air Handling Space (EAHS): Do not install the Mounting
Bracket, Antenna, Cables, PSU, and PoE (Power Injector) in the EAHS unless they are suitable
for use in EAHS per UL 2043.
PWR AC T V STAT
APP
Antenna Ports (Reverse TNC)
LEDs
Rear Panel
Port 1 Port 2 Port 3 Port 4 GPIO 24 VDC
Antenna Ports (Four Ports, Reverse TNC)
USB-B
Client
Power
GPIO
10/100BaseT
Ethernet (with POE)
Reset
USB-A
Host
CAUTION Use only parts provided with the FX7500 RFID readers, or Zebra approved/recommended parts.
Substituting other cables or parts can degrade system performance, damage the reader, and/or void
the warranty.

Zebra FX7500 Specifications

General

Interface	USB
Product color	White
LED indicators	Activity, Power, Status
Housing material	Aluminium, Metal, Plastic
Battery type	-
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 55 °C
Operating relative humidity (H-H)	5 - 95 %
Harmonized System (HS) code	84719000

Weight and Dimensions

Depth	43.2 mm
Width	149.9 mm
Height	195.6 mm
Weight	860 g
