Zebra FX7500 Integrator Guide

4 - 16 FX7500 RFID Reader Integrator Guide
Configure Reader
Use the Configure Reader submenus to access the following functions.
Reader Parameters (General)
Select Configure Reader in the selection menu to configure reader settings using this window.

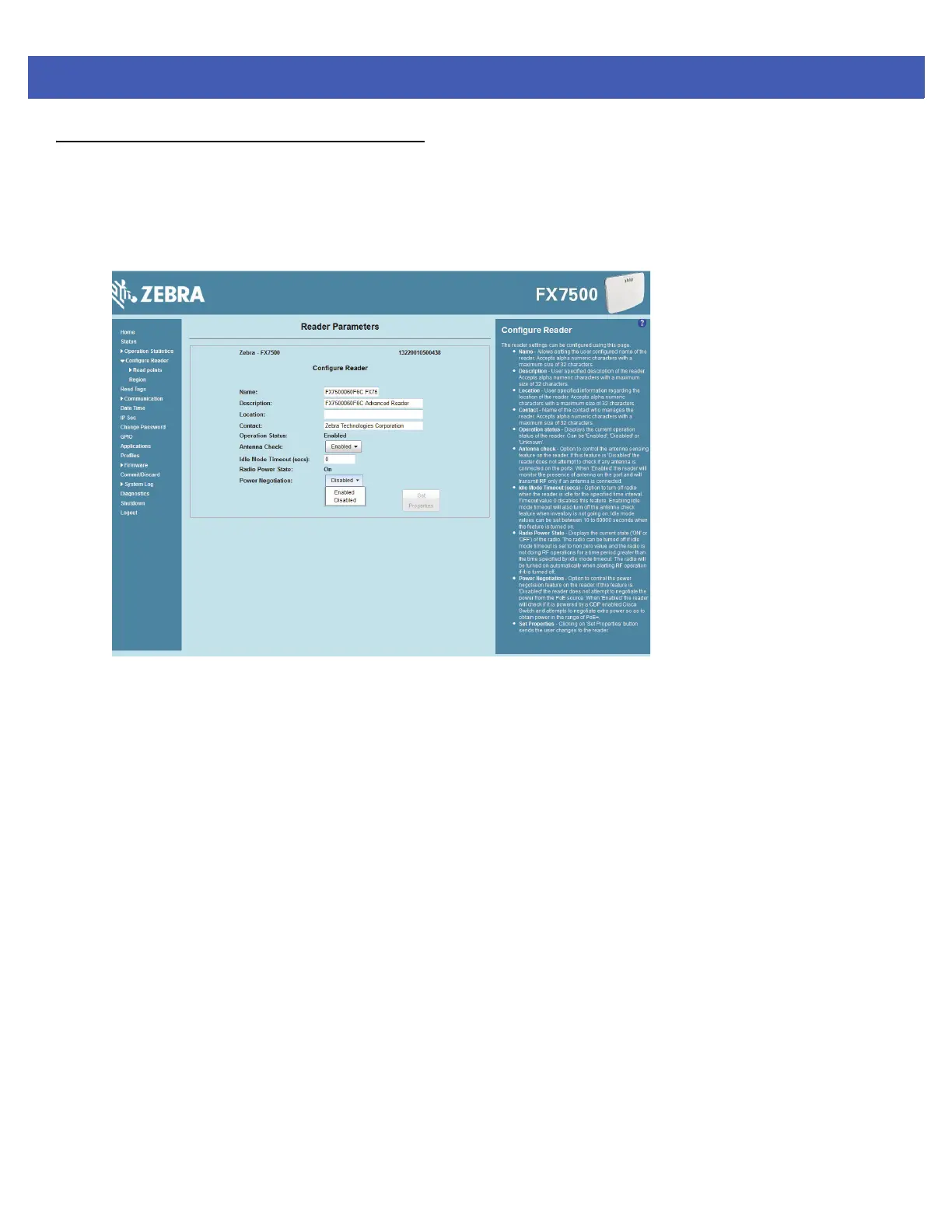

Figure 4-13 Reader Parameters
• Name - Sets the user-configured reader name. Accepts up to 32 alphanumeric characters.
• Description - Sets a user-configured reader description. Accepts up to 32 alphanumeric characters.
• Location - Enter information on the reader location. Accepts up to 32 alphanumeric characters.
• Contact - Enter the name of the reader manager contact. Accepts up to 32 alphanumeric characters.
• GPI Debounce Time - Delays input events up to this time, and delivers these events only if the PIN
states remains on the same level.
• Operation Status - Displays the current operation status of the reader (Enabled, Disabled, or
Unknown).
• Antenna Check - Controls the antenna sensing feature on the reader. Disabled indicates that the
reader does not attempt to check if an antenna is connected on the ports. When Enabled, the reader
monitors the presence of an antenna on the port and only transmits RF if an antenna is connected.
• Idle Mode Timeout (secs) - Turns off the radio when the reader is idle for the specified time interval. A
value of 0 disables this feature. Enabling this also turns off the antenna check feature when idle mode is
entered after time out.
• Radio Power State - Displays the current state (On or Off) of the radio. The radio can be turned off if the
Idle Mode Timeout is set to a non-zero value and the radio is not performing RF operations for a time
period greater than the time specified by this timeout. The radio turns on automatically when RF
operation starts.

Zebra FX7500 Specifications

General

Interface	USB
Product color	White
LED indicators	Activity, Power, Status
Housing material	Aluminium, Metal, Plastic
Battery type	-
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 55 °C
Operating relative humidity (H-H)	5 - 95 %
Harmonized System (HS) code	84719000

Weight and Dimensions

Depth	43.2 mm
Width	149.9 mm
Height	195.6 mm
Weight	860 g
