Zebra FX7500 Integrator Guide

Administrator Console 4 - 13
NXP Custom Command Operation Statistics
Select NXP to view the NXP Custom Command Operation Statistics window. This window provides options to
view the statistics of read points for the custom NXP operations the reader supports.

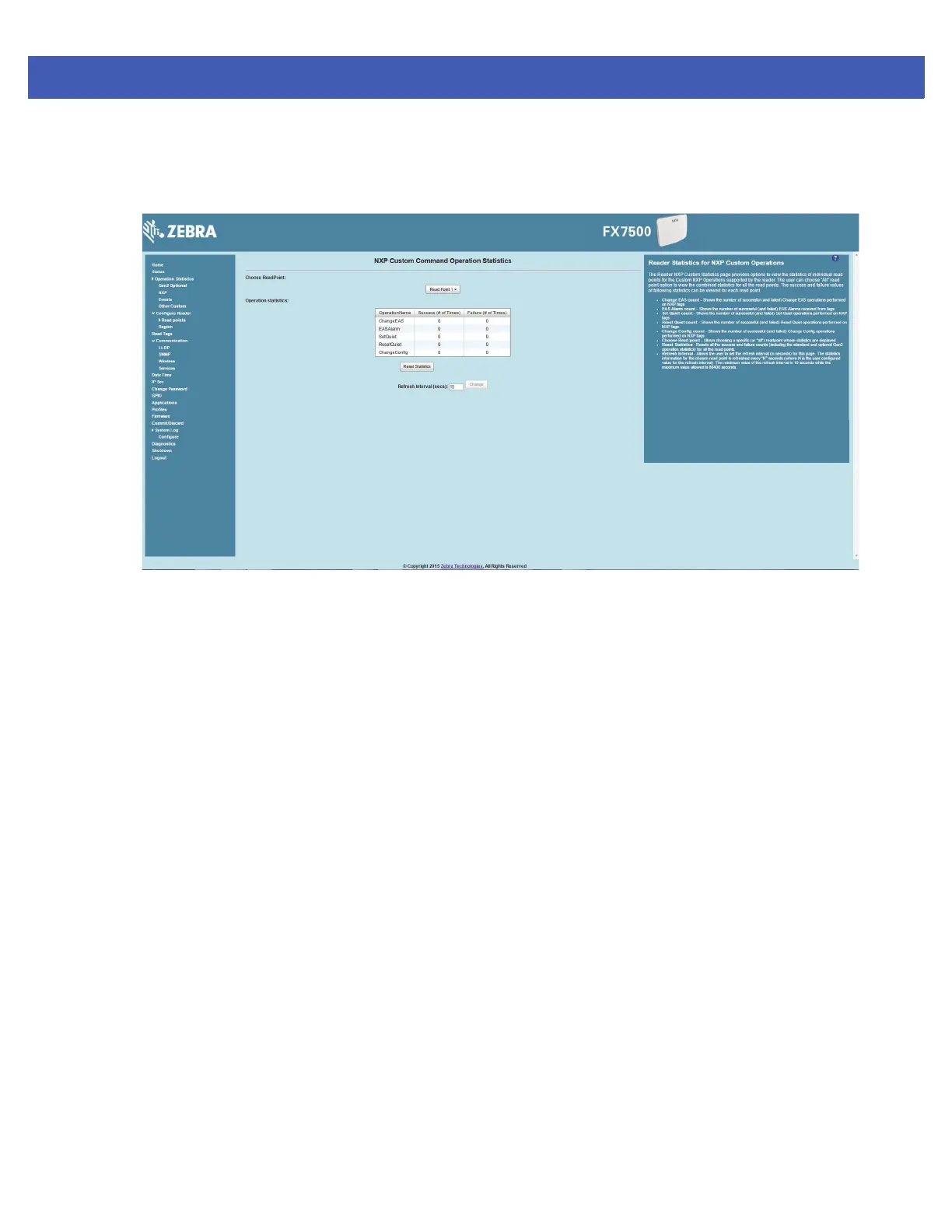

Figure 4-10 NXP Custom Command Operation Statistics Window
• Choose ReadPoint - Select a specific read point from the drop-down list to display the statistics, or select
All to view the combined statistics for all read points.
• ChangeEAS - Displays the number of successful (and failed) change EAS operations performed on NXP
tags.
• EASAlarm - Displays the number of successful (and failed) EAS alarms received from tags.
• SetQuiet - Displays the number of successful (and failed) set quiet operations performed on NXP tags.
• ResetQuiet - Displays the number of successful (and failed) reset quiet operations performed on NXP
tags.
• ChangeConfig - Displays the number of successful (and failed) change configuration operations
performed on NXP tags.
• Reset Statistics - Resets all the success and failure counts (including the standard and optional Gen2
operation statistics) for all the read points.
• Refresh Interval - Sets the refresh interval (in seconds) for this window. The statistics information for the
chosen read point is refreshed every
N seconds (where N is the set refresh interval). The minimum value
is 10 seconds and the maximum value allowed is 86,400 seconds. Input a new value and click
Change to
set a new interval.

Zebra FX7500 Specifications

General

Interface	USB
Product color	White
LED indicators	Activity, Power, Status
Housing material	Aluminium, Metal, Plastic
Battery type	-
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 55 °C
Operating relative humidity (H-H)	5 - 95 %
Harmonized System (HS) code	84719000

Weight and Dimensions

Depth	43.2 mm
Width	149.9 mm
Height	195.6 mm
Weight	860 g
