Zebra FX7500 Integrator Guide

Quick Start 1 - 5
6. Select Set Properties to complete the region selection. The Operation Successful window appears.

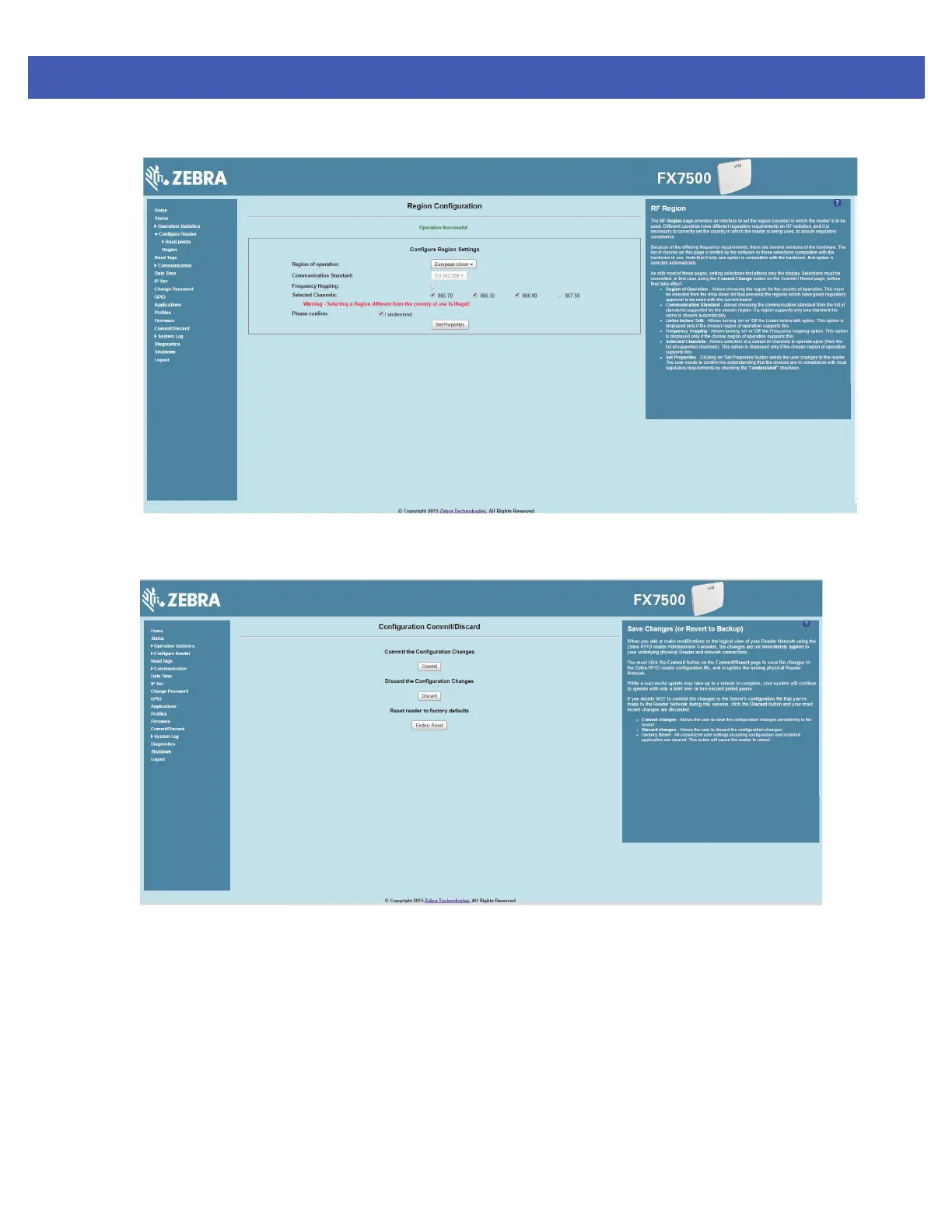

Figure 1-4 Region Configuration, Operation Successful Window
7. Select Commit/Discard.
Figure 1-5 Commit/Discard Window
8. Click Commit to save the new region configuration and apply these changes to the reader configuration
file, or click
Discard to discard the region configuration changes. When the commit completes, the Commit
Successful
window appears.

Zebra FX7500 Specifications

General

Interface	USB
Product color	White
LED indicators	Activity, Power, Status
Housing material	Aluminium, Metal, Plastic
Battery type	-
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 55 °C
Operating relative humidity (H-H)	5 - 95 %
Harmonized System (HS) code	84719000

Weight and Dimensions

Depth	43.2 mm
Width	149.9 mm
Height	195.6 mm
Weight	860 g
