B - 4 FX7500 RFID Reader Integrator Guide
8. Set Obtain IP Address via DHCP to Off and enter all required information.

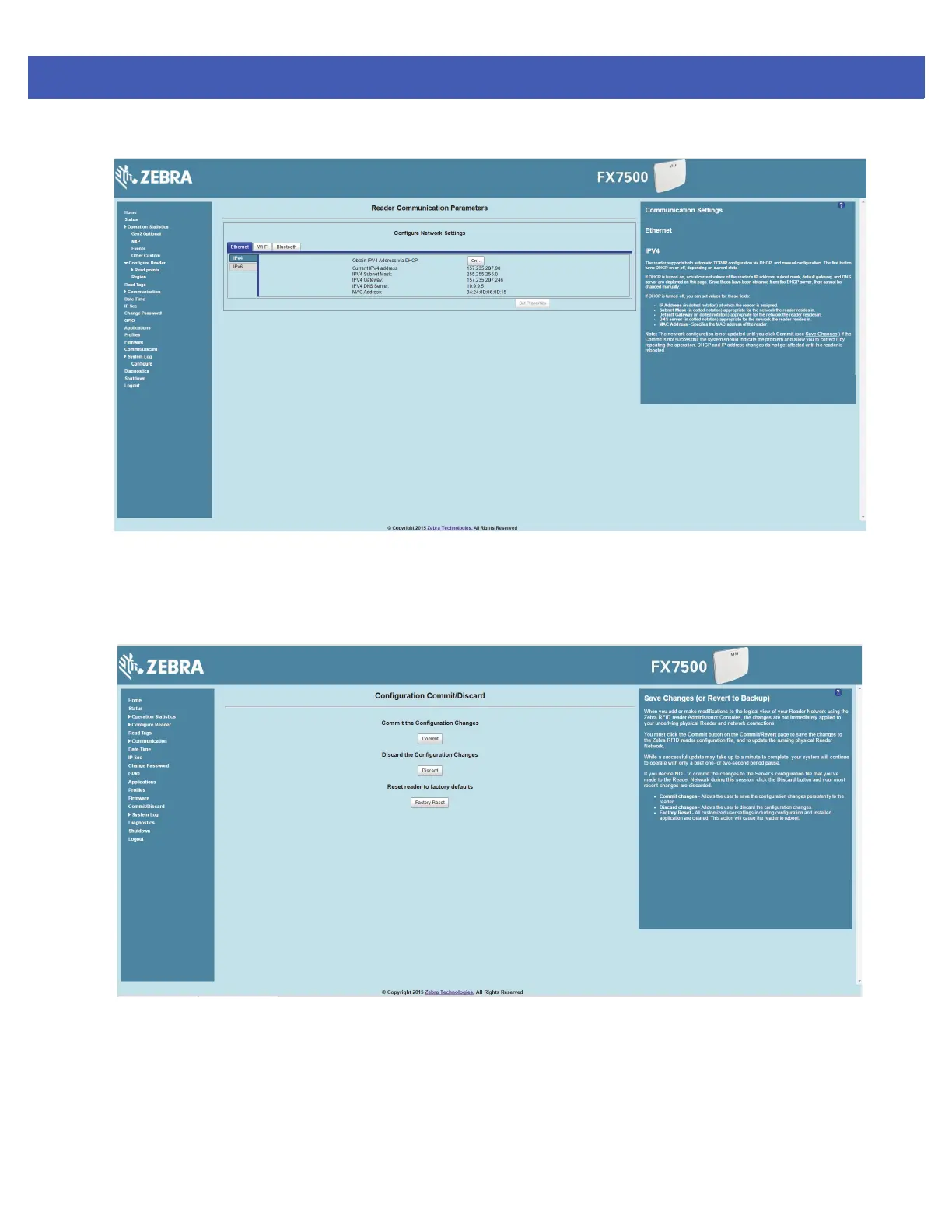

Figure B-6
Reader Communication Parameters Window
9. Click Set Properties.
10. Click Commit/Discard, then click the Commit button.
Figure B-7
Commit/Discard Window
11. The message Reader IP Address config has changed. Needs reader reboot to take effect appears. Reset the
device and use the reader with the static IP network.
