DB-9 Connectors
Printer Interface Technical Information
RS-232 Interconnections Using a DB-25 Cable
To connect the printer’s RS-232 DB-9 interface to a DB-25 connector, an interface
adapter is required (Zebra part number 33138). A generic DB-25 adapter may also be
used, however, the +5 VDC signal source would not be passed through. The

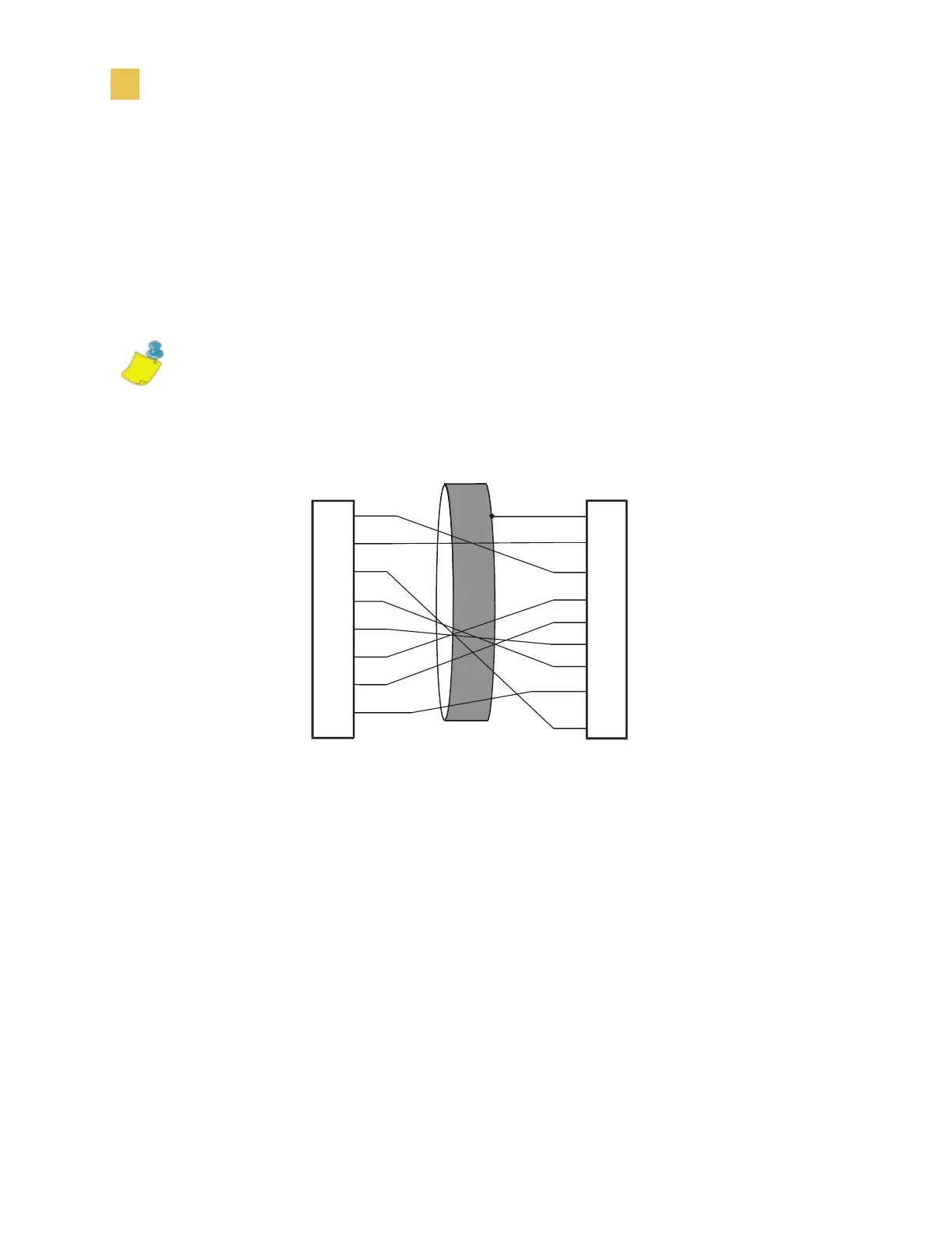

illustration below shows the connections required for the DB-9 to DB-25 interface.
Note • The cable used to connect the printer to a computer must be a null modem
(crossover) cable. If you want to connect the printer to any other DTE devices, you
must also use a null modem cable.
Male DB-9 Adapter
Connector
(plugs into printer)
Female DB-25 Adapter
Connector
(plugs into cable)
Note • Pin 1 of DB-9 connector is unused and unterminated.
FG
TXD
RXD
RTS
DSR
SG
DTR
RXD
TXD
DTR
SG
DSR
RTS
CTS
+5 VDC
SIGNAL
2
3
4
5
6
7
8
9
1
2
3
4
6
7
9
20
+5 VDC
SIGNAL
5
CTS

Zebra Z4Mplus Specifications

General

Print Method	Thermal transfer or direct thermal
Resolution	203 dpi
Max Print Width	4.09 inches
Max Print Length	39 inches
Max Print Speed	10 inches per second
Memory	4 MB Flash, 8 MB DRAM
Interface	Parallel, Serial
Media Sensors	Reflective and transmissive
Media Width	0.79 inches to 4.5 inches
Media Length	0.38" (9.6 mm) to 39" (991 mm)
Ribbon Width	2 inches to 4.33 inches
Power Requirements	100-240 VAC, 50/60 Hz
Operating Temperature	40°F to 105°F
Storage Temperature	-40 to 140°F (-40 to 60°C)
Humidity	20 to 85% non-condensing
