5: Replacement Procedures

Procedures

P1061942-001 Zebra ZXP Series 1 Card Printer Service Manual 157

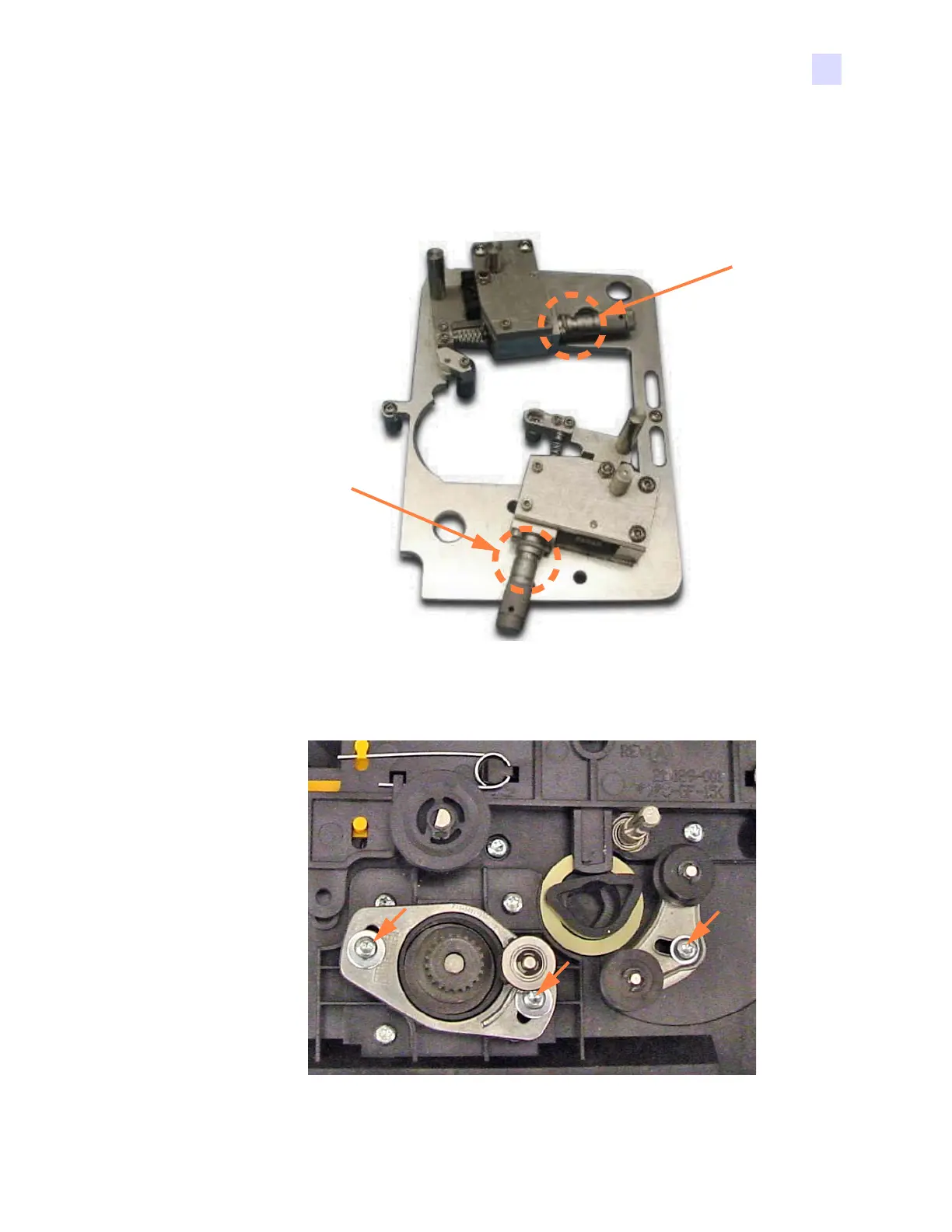

Belt Installation and Tensioning Tool

Step 1. The two scales on the Belt Tensioning Tool have been preset at the factory. DO NOT

CHANGE THESE PRESETS.

Step 2. With a

TORX T10 driver, loosen the two motor collar screws (4-40x5/16), 7.0 in-lb),

two left arrows; and the tensioner screw (4-40x5/16), 5.5 in-lb), right arrow.

Scale 1

Scale 2
