Zener MSC-3 User Manual

IM00120
6
IM00120
Installation
B
E
D
F
A
C
G
G
Bolt
Diameter
Bolt
Diameter

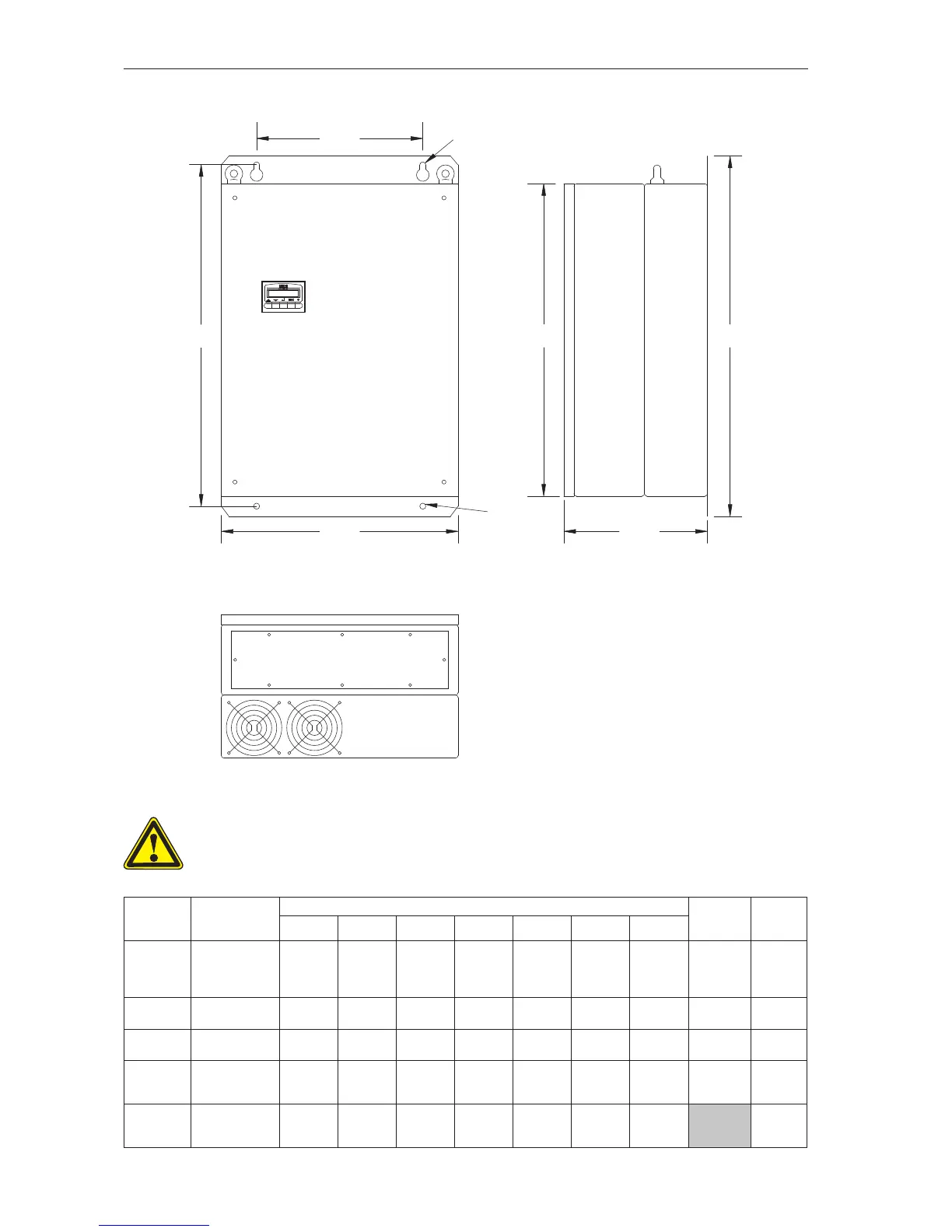

Chassis C (55 - 170Amps)
CAUTION
Allow 100mm above, below and either side of the enclosure for ventilation
Model Enclosure type Dimensions - tolerance +/- 1.0mm Weight
without
choke
Weight
with
choke
A B C D E F G
MSC-3*55 Chassis C
All types
715mm
28.1”
470mm
18.5”
290mm
11.4”
625mm
24.6”
330mm
13”
677mm
26.7”
12mm
0.47”
42Kg
92lbs
62Kg
136lbs
MSC-3*82 Chassis C
All types
715mm
28.1”
470mm
18.5”
290mm
11.4”
625mm
24.6”
330mm
13”
677mm
26.7”
12mm
0.47”
44Kg
97lbs
64Kg
141lbs
MSC-3*109 Chassis C
All types
715mm
28.1”
470mm
18.5”
290mm
11.4”
625mm
24.6”
330mm
13”
677mm
26.7”
12mm
0.47”
46Kg
101lbs
66Kg
145lbs
MSC-3*140 Chassis C
All types
715mm
28.1”
470mm
18.5”
290mm
11.4”
625mm
24.6”
330mm
13”
677mm
26.7”
12mm
0.47”
50Kg
110lbs
70Kg
154lbs
MSC-3*170 Chassis C
All types
715mm
28.1”
470mm
18.5”
290mm
11.4”
625mm
24.6”
330mm
13”
677mm
26.7”
12mm
0.47”
72Kg
158lbs
* L or R to specify voltage - see page 60 for details
