Zener MSC-3 - EMC Installation Diagrams; Chassis A (3-11 Amp) IP30 EMC

IM00120
14
IM00120
Installation
Control cable gland.
No special EMC
requirement. Plastic or
other cable gland may be
used.
Gland Plate Detail
Viewed from Below
Metal cable gland with
360° screen termination
See gland
plate detail
on left for
control
cable exit
location
AC supply
screened cable
not required
Screened
power cable
Motor isolation
switch (if required)
Metal enclosure
Metal cable gland with
360° screen termination
Motor terminal box (metal)
Screened power cable

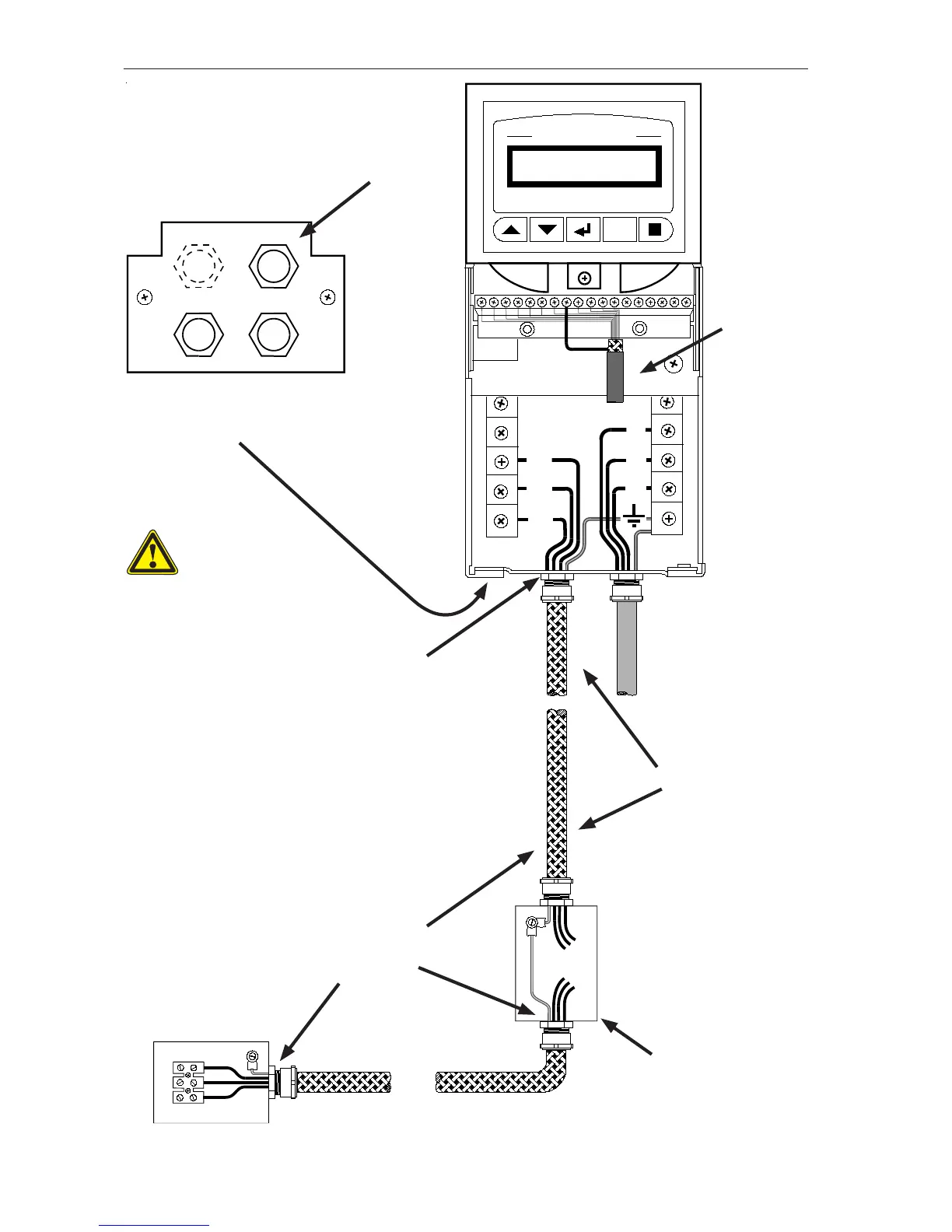

Chassis A (3-11Amp) IP30 EMC Installation
CAUTION
Remove gland plate
before drilling holes
ESC
FWD REV ENTER EXIT STOP
L1
L2
L3
M2
M1
M3
