Zener MSC-3 - Chassis A IP66 EMC Installation; EMC Wiring for Chassis A IP66

IM00120
15
IM00120
MSC-3 Instruction Manual
CAUTION
Remove gland plate
before drilling holes
AC supply
screened cable
not required
Screened
power cable
Motor isolation
switch (if required)
Metal enclosure
Screened power cable
Motor terminal box (metal)
Metal cable gland with
360° screen termination
Screened
control cable
No special EMC
requirement here. Plastic
or other cable gland may
be used
Metal cable gland with
360° screen termination

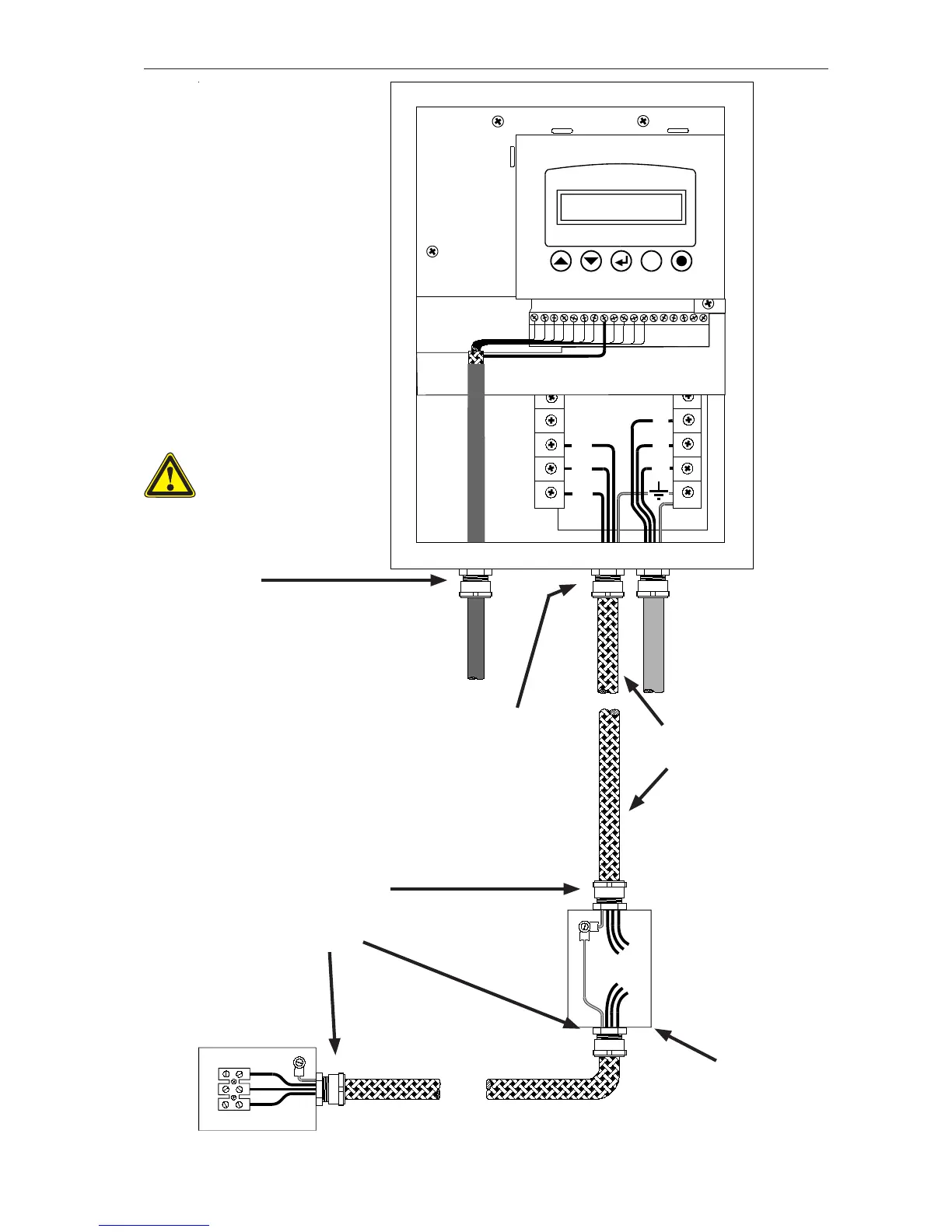

Chassis A (3-11Amp) IP66 EMC Installation
ESC
FWD REV ENTER EXIT STOP
L2
L3
L1
M1
M2
M3
