Unloading, unpacking, handling
The handling chains or cables should be as close to vertical as possible and must
not exceed an angle from the vertical of 26° when the load is being lifted. For this
reason, a cross-bar is generally necessary for handling purposes.
The dimensions refer to (Abb. 54):

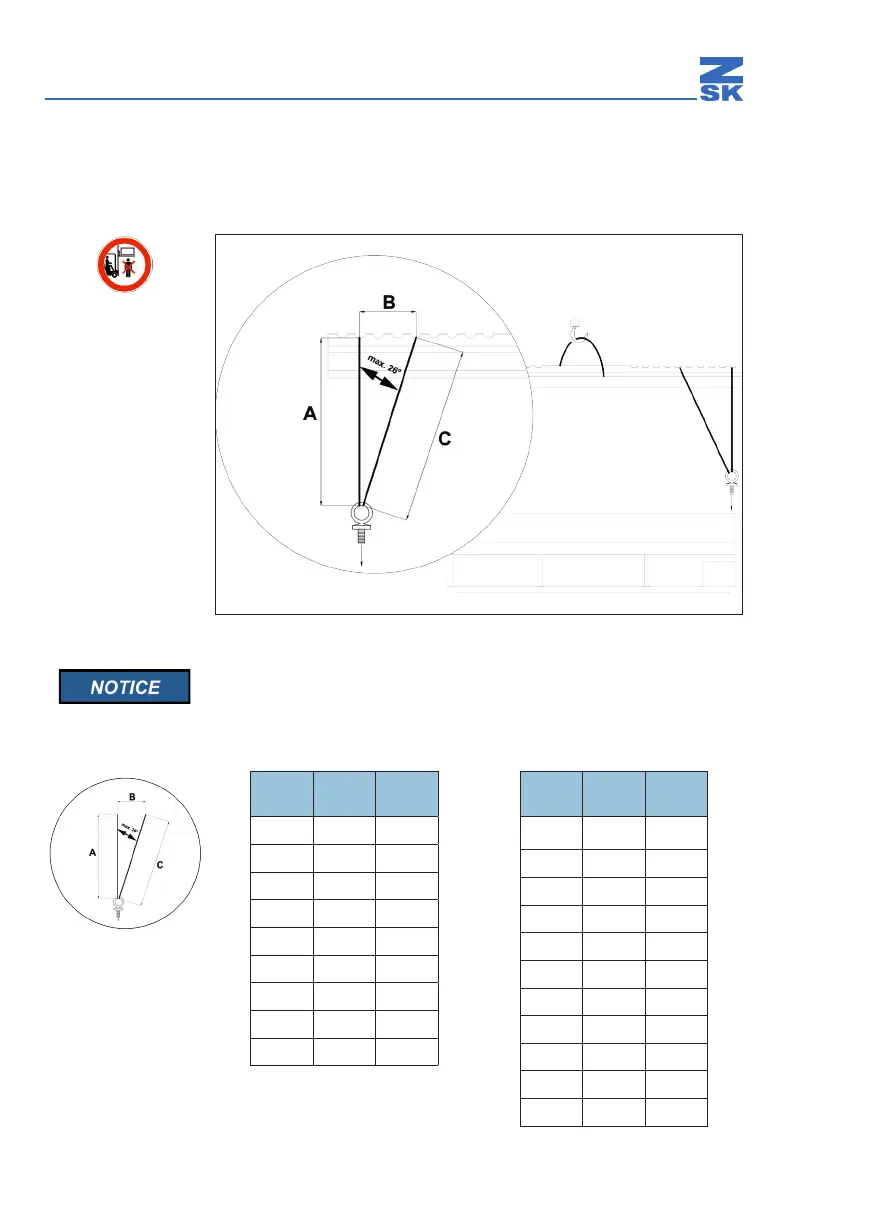

Abb. 54: Moving by crane with cross-bar
The permitted value of 26° will not be exceeded if the dimensions
shown in the tables in are observed.
A
[CM]
B
[CM]
C
[CM]
50 24 56
75 37 83
100 49 111
125 61 139
150 73 167
175 85 195
200 98 223
225 110 250
250 122 278
A
[CM]
B
[CM]
C
[CM]
21 10 23
41 20 46
62 30 68
82 40 91
103 50 114
123 60 137
144 70 160
164 80 182
185 90 205
205 100 228
226 110 251
