ZXR10 2920/2928/2952
(V1.0) Access Switch User Manual （Volume I）
272 Confidential and Proprietary Information of ZTE CORPORATION

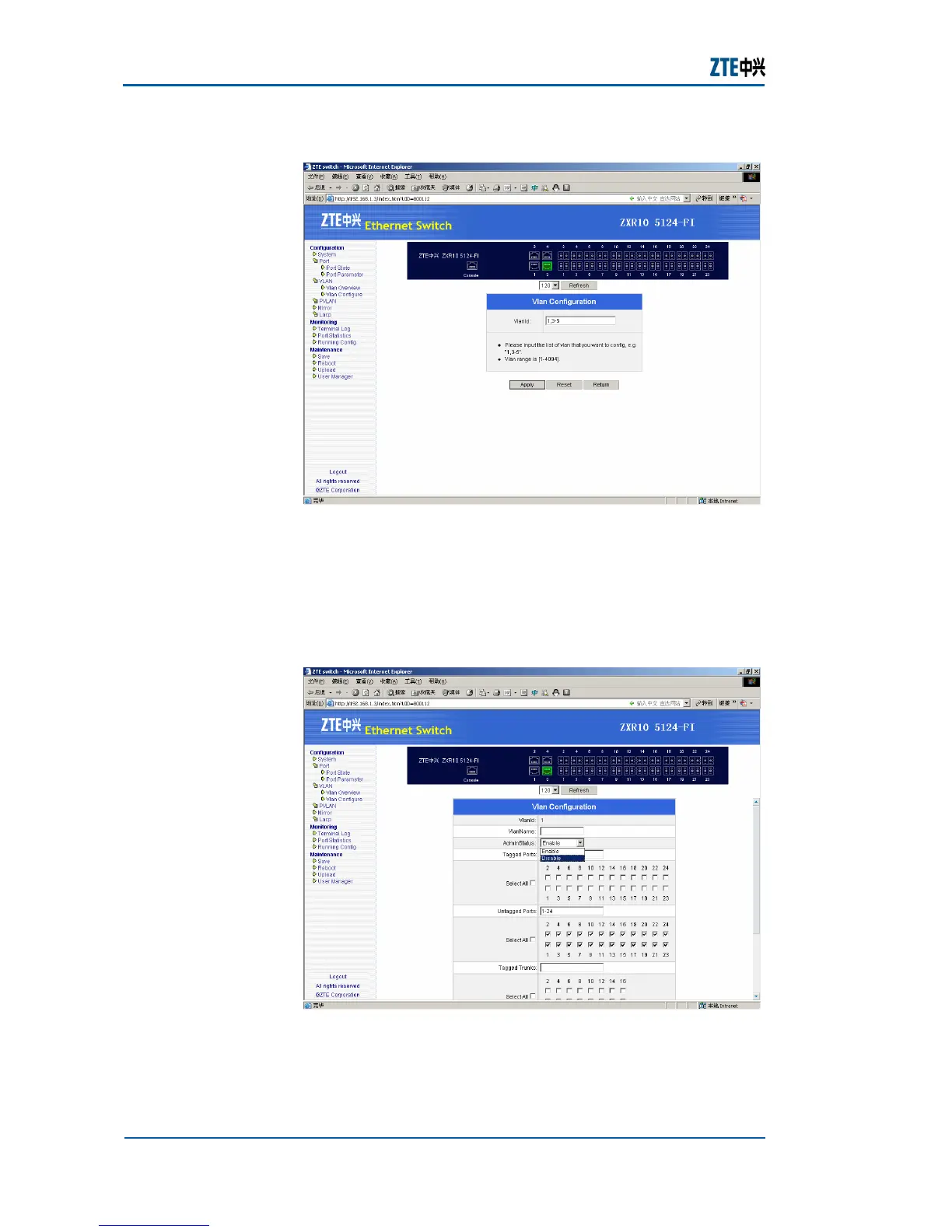

FIGURE 53 VLAN NUMBER INPUT
4. Input the VLAN number, format is like “1, 3-5” in the VLAN
number input page, and click Apply button to enter single
VLAN or batch VLANs configuration page.
5. Single VLAN configuration page is shown in
Figure 54.
FIGURE 54 SINGLE VLAN
6. After configuring some attributes of the Vlan, click Apply
button to submit.
Result: Vlan is configured
