ZXR10 2920/2928/2952
(V1.0) Access Switch User Manual （Volume I）
26 Confidential and Proprietary Information of ZTE CORPORATION
which connects to serial port on computer. Other end is an
RJ45 port, which connects to Console port of ZXR10
2920/2928/2952.

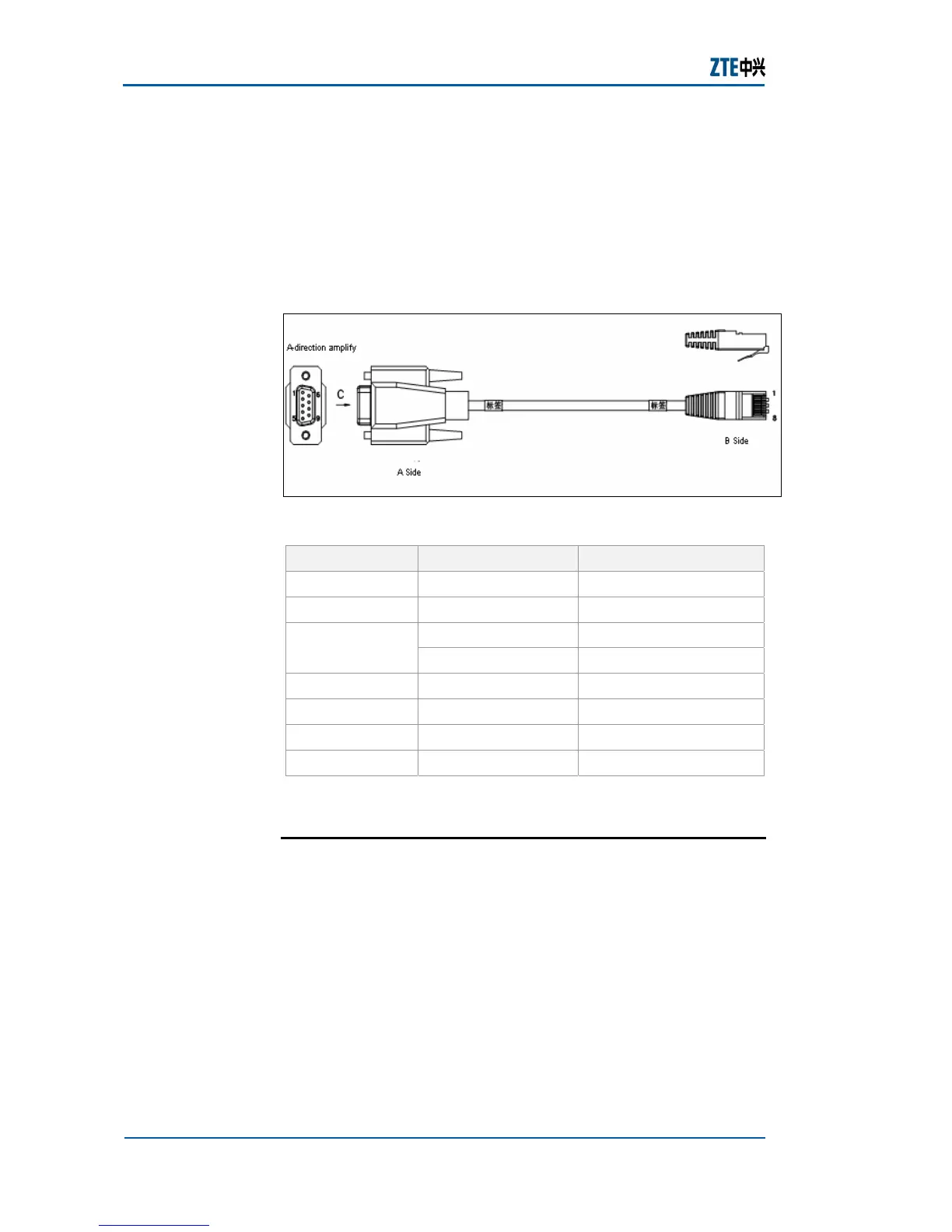

Console cable is shown in FIGURE 18 .
Linear ordering of serial port console cable is shown in
TABLE 10 .
FIGURE 18 CONSOLE CABLE INSTALLATION
TABLE 10 LINEAR ORDERING OF SERIAL PORT CONSOLE CABLE
Side A Color Side B
2 White 3
3 Blue 6
White 4
5
Orange 5
4 White 7
6 Green 2
7 White 8
8 Brown 1
Network Cable Installation
Both ends of network cable are crimped with RJ45 connectors,
as shown in
FIGURE 19 .
Name of the cable connector: 8P8C straight crimping cable
connector
Specification: E5088-001023
Technical parameters
f Rated current 1.5A
f Rated voltage 125V
f Crimped with AWG24-28# round wire
