VLAN is configured on ZXR10 2920/2928/2952.
This example shows the configuration of VLAN 100. Add
untagged ports 1 and 2 and tagged ports 7 and 8. The detailed
configuration is as follows:
Note: It is recommended to delete default VLAN before the
configuration.
zte(cfg)#set vlan 100 add port 1, 2 untag
zte(cfg)#set vlan 100 add port 7, 8 tag
zte(cfg)#set port 1, 2 pvid 100
zte(cfg)#set vlan 100 enable
zte(cfg)#show vlan 100
VlanId : 100 Fid : 100 Priority: off
VlanStatus: enabled
VlanName:
Tagged ports : 7-8
Untagged ports: 1-2
zte(cfg)#
Configuration of VLAN transparent transmission
This example describes how Switch A is connected to switch B
through port 16. Port 1 of switch A and port 2 of switch B
belong to VLAN2, and port 3 of switch A and port 4 of switch B
belong to VLAN3. Members of the same VLAN can
communicate with each other. This is shown in
Figure 24.

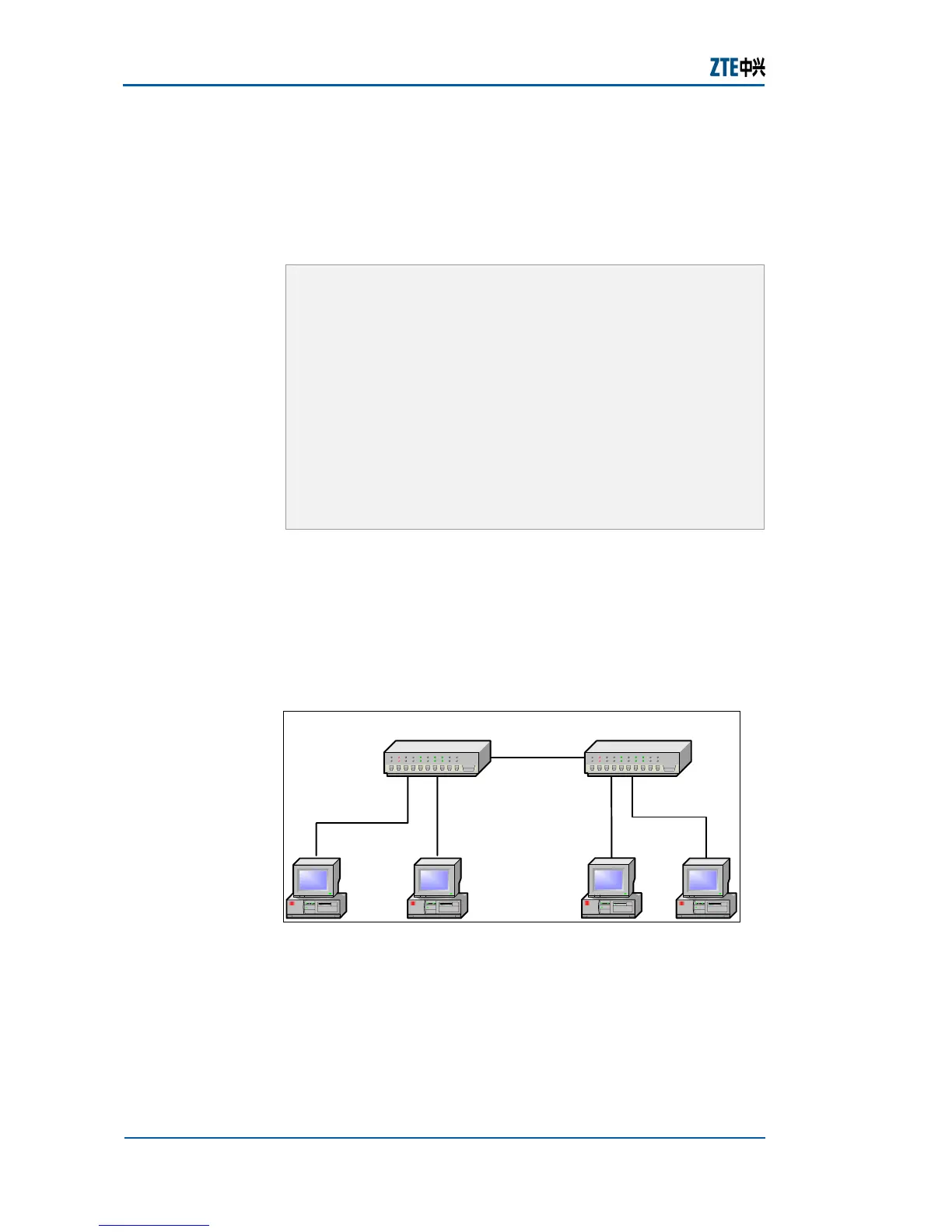

FIGURE 24 VLAN TRANSPARENT TRANSMISSION
p1
p3
Switch A
p4
Switch B
p2
p16p16
Switch A configuration
Result
Example
