Parameters 235
In1+In2 Sum of sources 1 and 2. 1
In1-In2 Source 2 subtracted from source 1. 2
In1*In2 Source 1 multiplied by source 2. 3
In1/In2 Source 1 divided by source 2. 4
MIN(In1,In2) Smaller of the two sources. 5
MAX(In1,In2) Greater of the two sources. 6
AVE(In1,In2) Average of the two sources. 7
sqrt(In1) Square root of source 1. 8
sqrt(In1-In2) Square root of (source 1 - source 2). 9
sqrt(In1+In2) Square root of (source 1 + source 2). 10
sqrt(In1)+sqrt(In2) Square root of source 1 + square root of source 2. 11
40.11 Set 1 feedback filter
time
Defines the filter time constant for process feedback. 0.000 s
0.000…30.000 s Feedback filter time. 1 = 1 s
40.16 Set 1 setpoint 1
source
Selects the primary source of process PID setpoint. See
the control chain diagram on page 456.
AI1 percent
Not selected None. 0
Internal setpoint Internal setpoint. See parameter 40.19 Set 1 internal
setpoint sel1.
2
AI1 scaled 12.12 AI1 scaled value 3
AI2 scaled 12.22 AI2 scaled value 4
Motor potentiometer 22.80 Motor potentiometer ref act (output of the motor
potentiometer).
8
Freq in scaled 11.39 Freq in 1 scaled value 10
AI1 percent 12.101 AI1 percent value 11
AI2 percent 12.102 AI2 percent value 12
Control panel (ref
saved)
Panel reference (03.01 Panel reference, see page 108)
saved by the control system for the location where the
control returns is used as the reference.
13

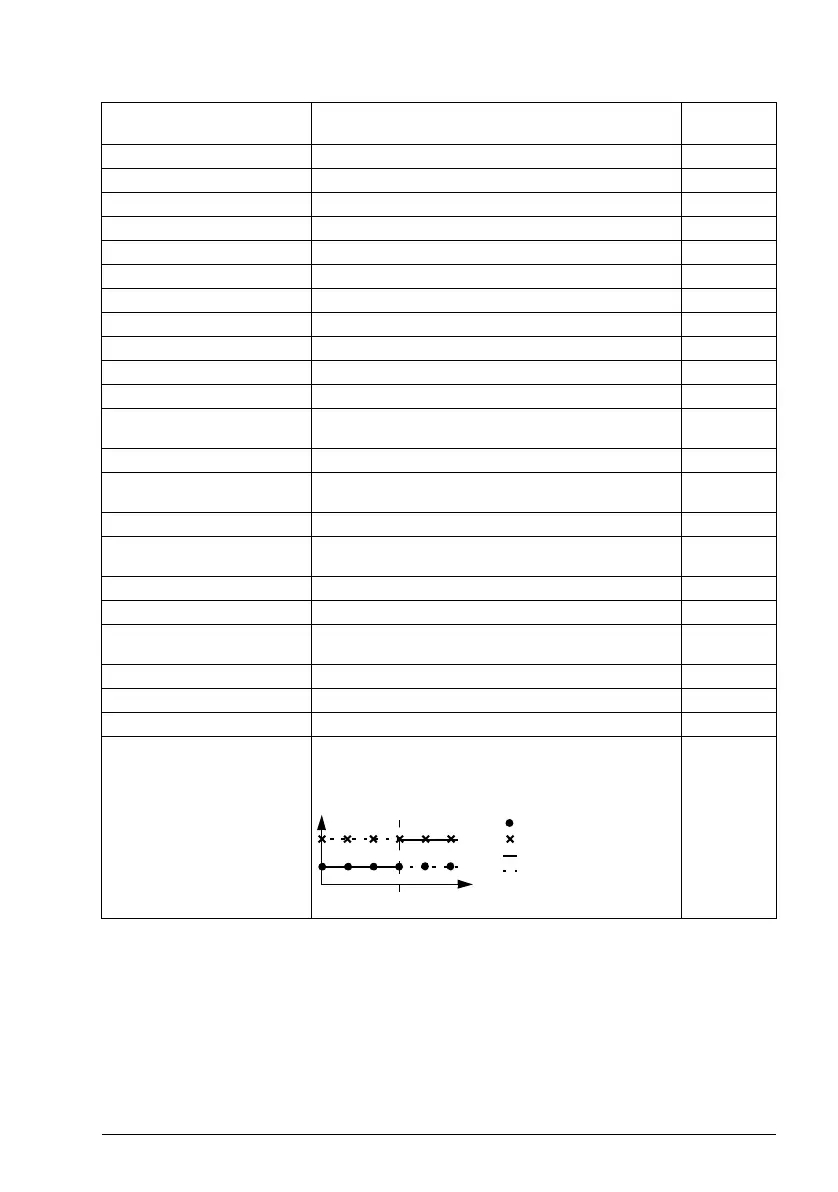

No. Name/Value Description Default
FbEq 16
Ext1 -> Ext2
t
Reference
Ext1 reference
Ext2 reference
Active reference
Inactive reference
