AO2000 CONTINUOUS GAS ANALYZERS | OI/AO2000-EN REV. B 91

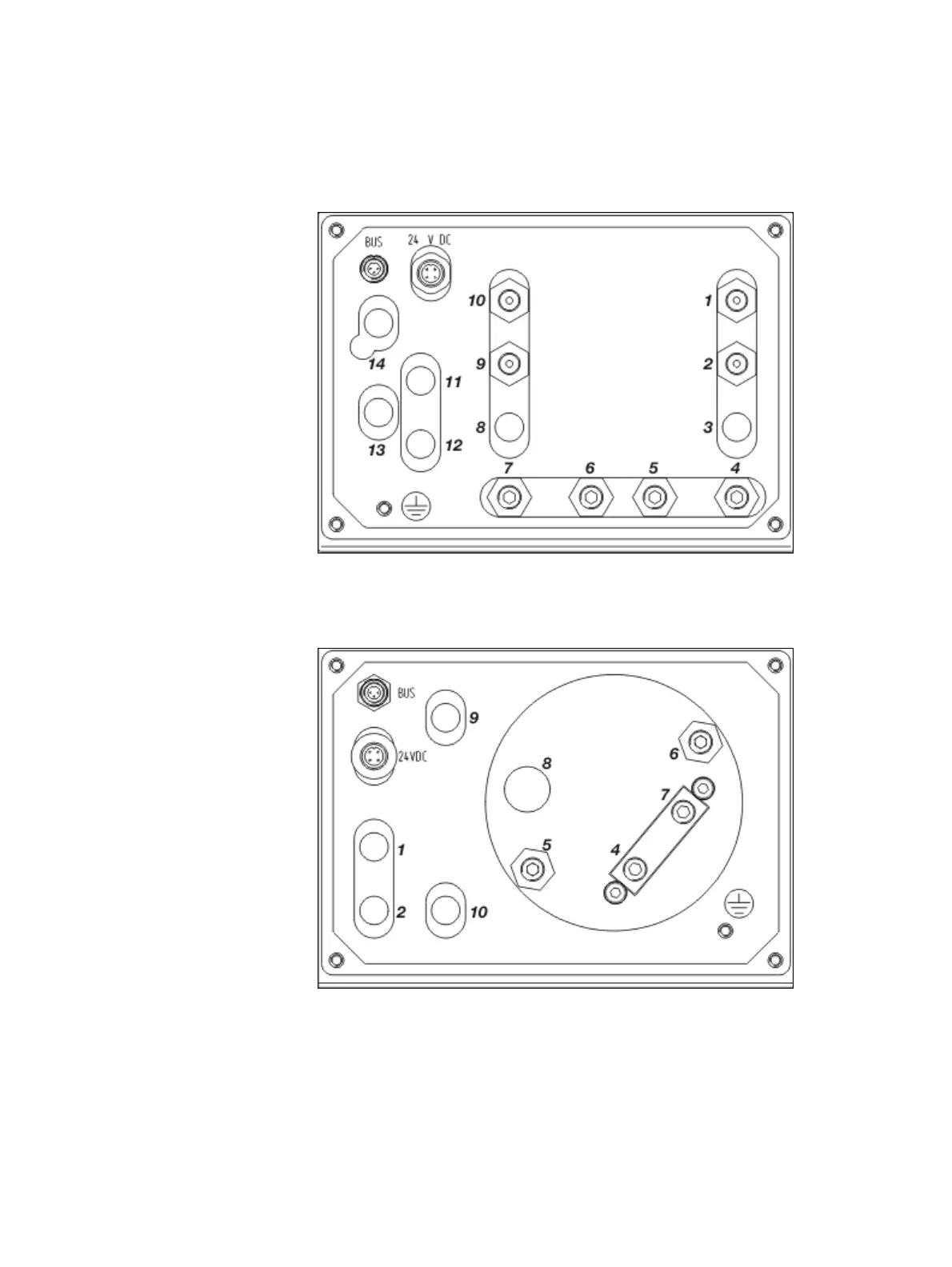

Magnos27: Gas connections
Gas connections
Sample chamber connection to FPM hoses
Sample chamber direct connection
The sample chamber is directly connected to the gas connections (only in
the wall-mount housing). Application e.g. for connection of an external gas
feed and for a short T90 time.
