Section D Graphic Display
D-35
Singling out a message from among the set(s) of configured messages:

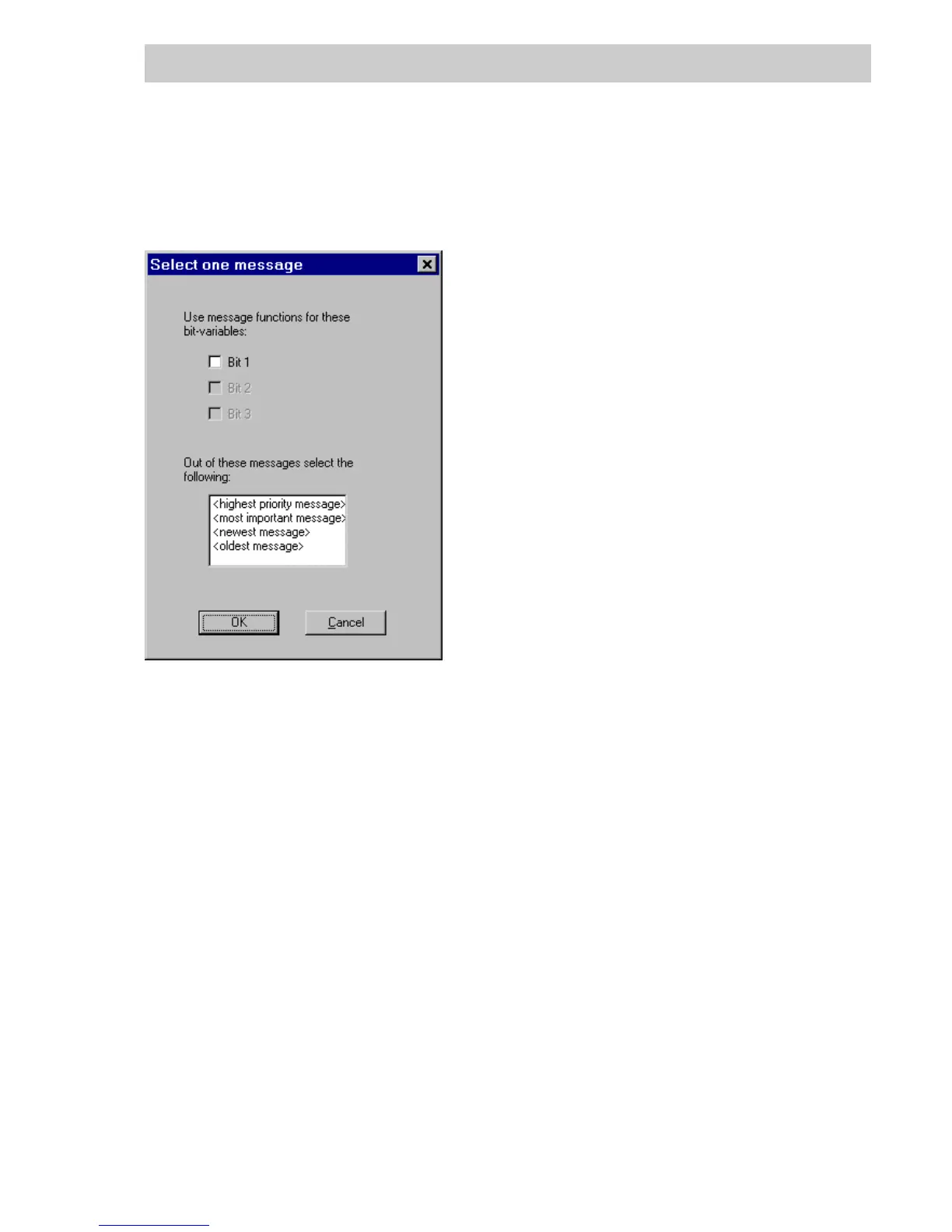

After pressing a Msg button in the color table, the following dialog comes up. At run-time,
exactly one message must be singled out in order, for example, to determine the color of a
dynamic graphic object.
In the upper portion of the dialog, the sets of specific message points that are to be used are
specified. In the lower portion of the dialog are the specifications as to which of these
messages is to determine the current object color.
