Section D Graphic Display
D-93
D 9 General Processing Functions

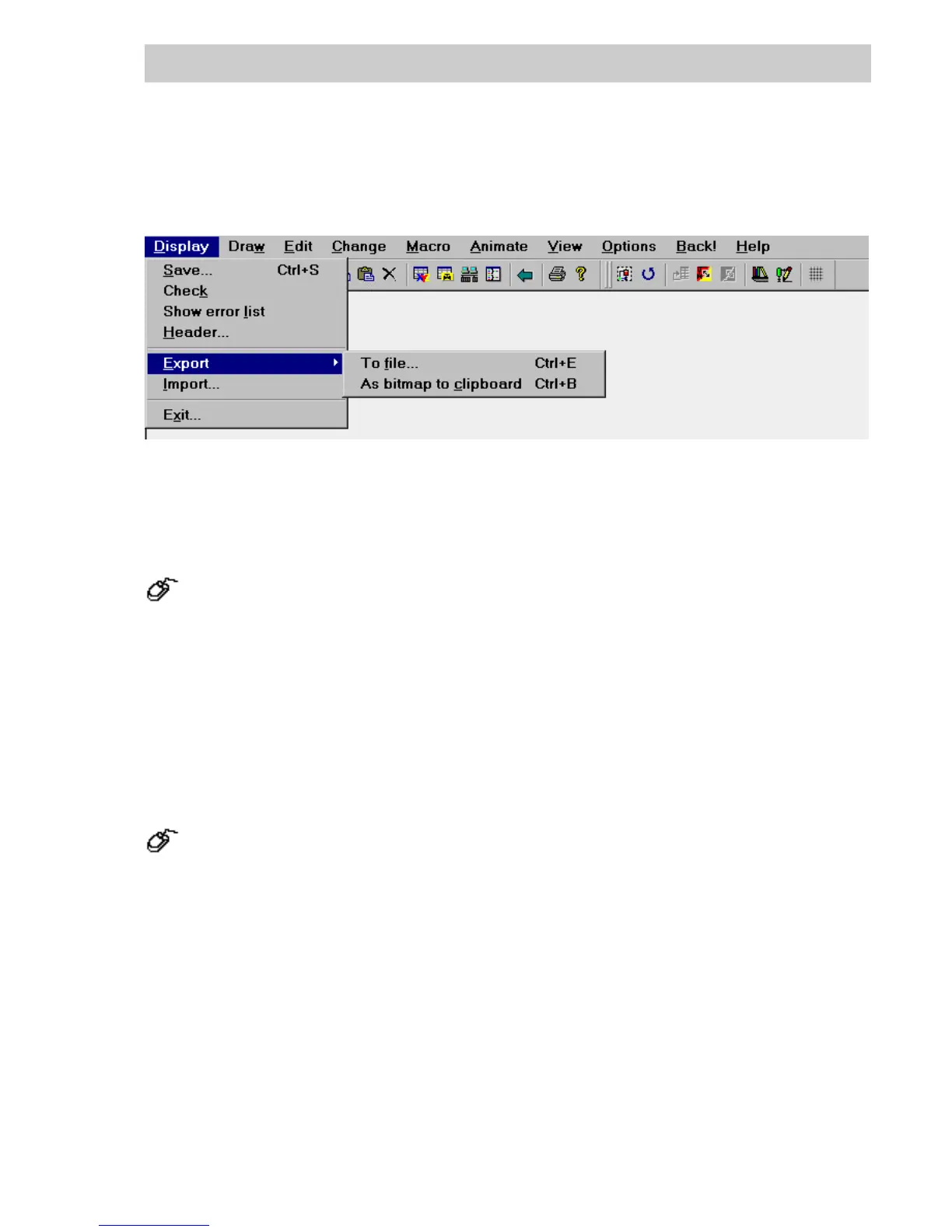

All functions necessary for the general handling of graphics are located under the Display menu.
D 9.1 Save
→Display → Save...
Save graphics is either carried out explicitly with Save or at a prompt when quitting the graphic
display. During the creation of a graphic display it is advisable to occasionally save in order to
keep data loss as low as possible in the event of any unexpected problems with the PC. The
buffer display is always saved automatically as well.
D 9.2 Check
→Display → Check.
The entire graphic display with its static and dynamic graphic items, macros and parameter inputs
undergoes a plausibility check for errors, missing inputs or contradictions. Any errors are listed in
a window and must be remedied afterwards. A listed error message from the plausibility check
can be selected with a double-click on the message or by pressing the relevant screen button.
Either of these actions has the effect of selecting the appropriate graphic object for editing.
