D 4.8 Circle segment
→Draw → Circle segment
→Mark starting point by clicking mouse, draw circle or ellipse,
→Finish it by clicking mouse,
→Mark starting point of the circle segment by clicking mouse,
Moving the cursor clockwise: Circle segment gets larger,
Moving the cursor anti-clockwise: Circle segment gets smaller,
→Mark end point of circle segment by clicking mouse.
Subsequent changing of the segment size is not possible.
The circle segment represents a certain part of a circle or ellipse diagram. It is a
closed graphic item.
Circle segments are specified with the attributes line color, line style, line
width, foreground color and background color and fill pattern.

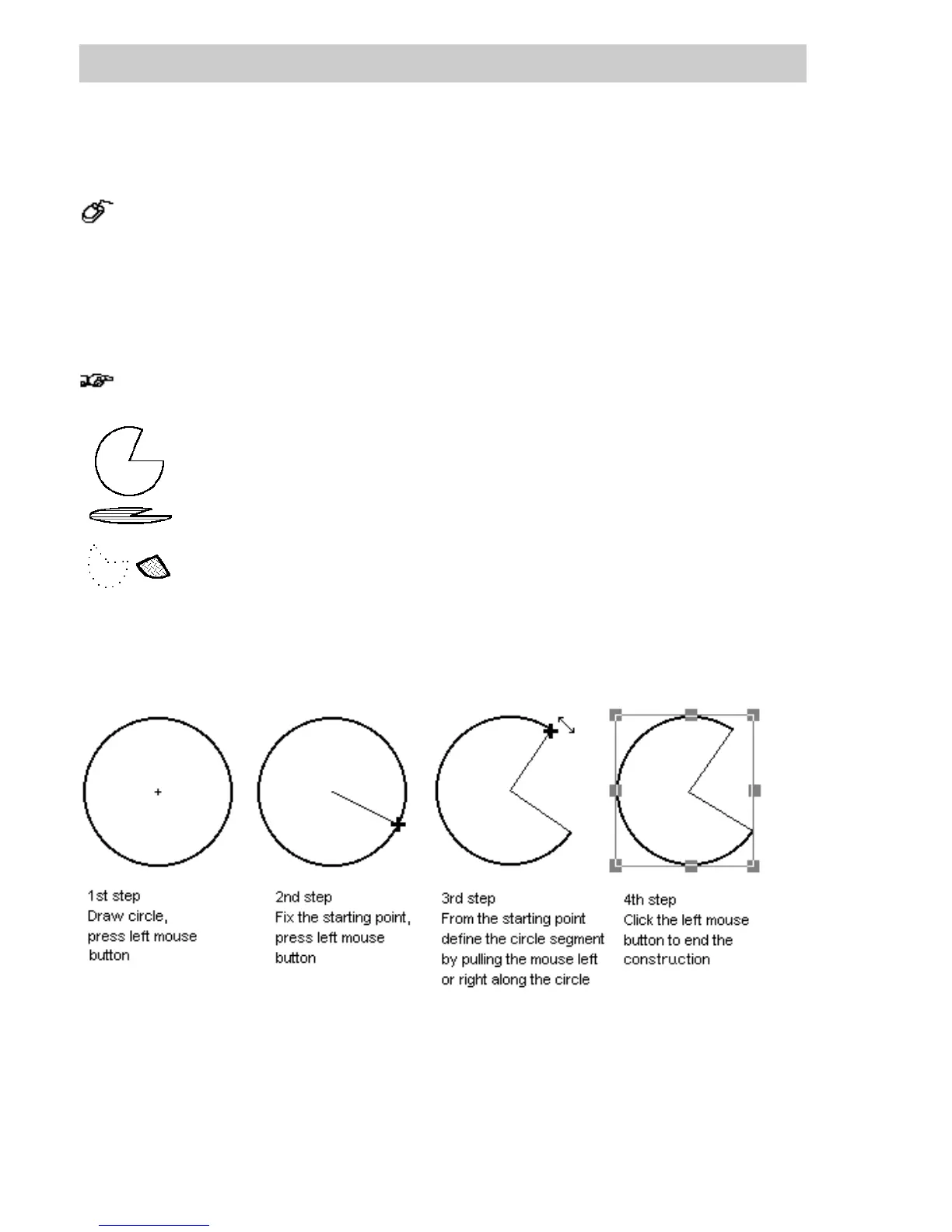

Construction of a circle segment:
