Section E Logs
E-9

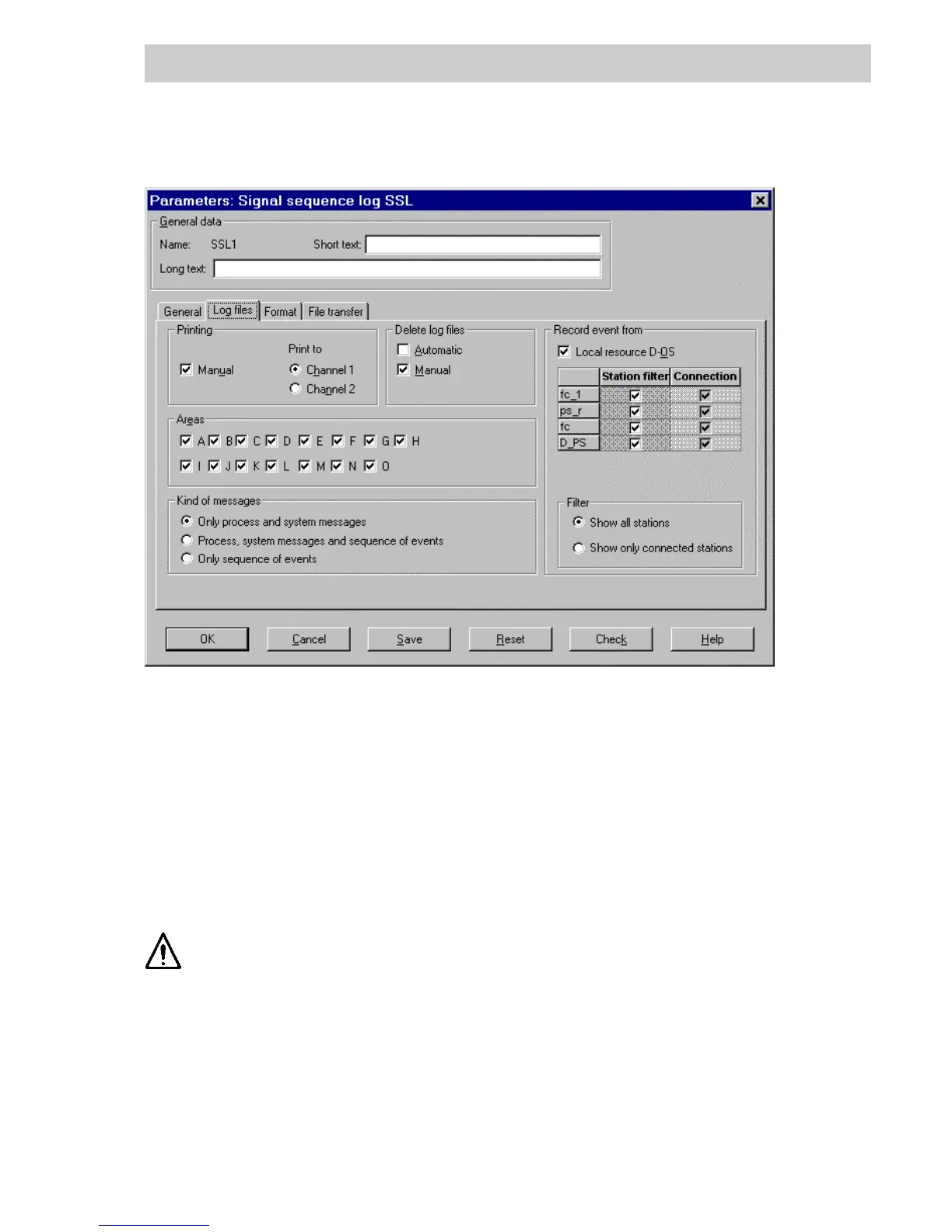

E 2.2 Log files tab - Signal sequence log 1 and N
Print
manual The printing of logs can be activated manually by the operator at the op-
erator station.
Print to
Channel 1 / 2 Two printer channels are available for log output on the printer. The printer
channel is selected by activating the corresponding option button.
Delete log files
automatic When the automatic delete option is selected and the configured number of
files is exceeded, the oldest log file is overwritten by the current file.
If the automatic delete option is not selected then logging is suspended
as soon as the max. number of files has been reached.
Manual The operator can select and delete individual log files.
Gross Automation, 1725 South Johnson Road, New Berlin, WI 53146, www.ssacsales.com, 800-349-5827
