Section C Standard Displays
C-28
C 6 Time Scheduler Display
C 6.1 General description - time scheduler display
With a time scheduler, time-dependent analog values are output and can be sent to other func-
tions, e.g. to a controller as a set point input. In addition to the Time Scheduler Faceplate,

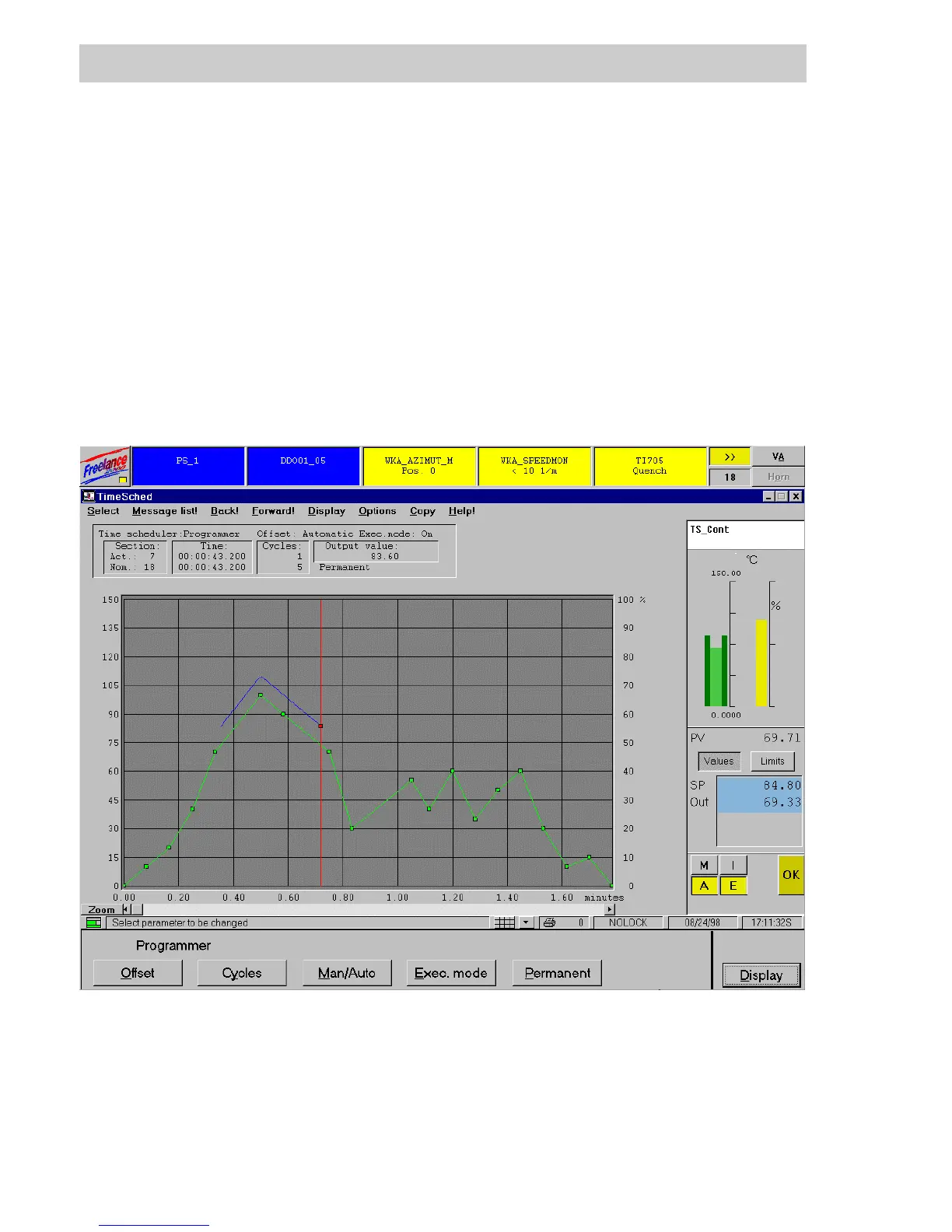

there is an entire-page time scheduler display.
This offers a comfortable means of displaying the set-point trend or the actual trend and of op-
erating the time scheduler. If desired, the allocated faceplate (generally the faceplate of the
postconnected function block) can be included in the time scheduler display.
The time scheduler display has been standardized and parameters must only be defined for the
short and long text, the allocated time scheduler block name and the faceplate.
