Section C Standard Displays
C-16

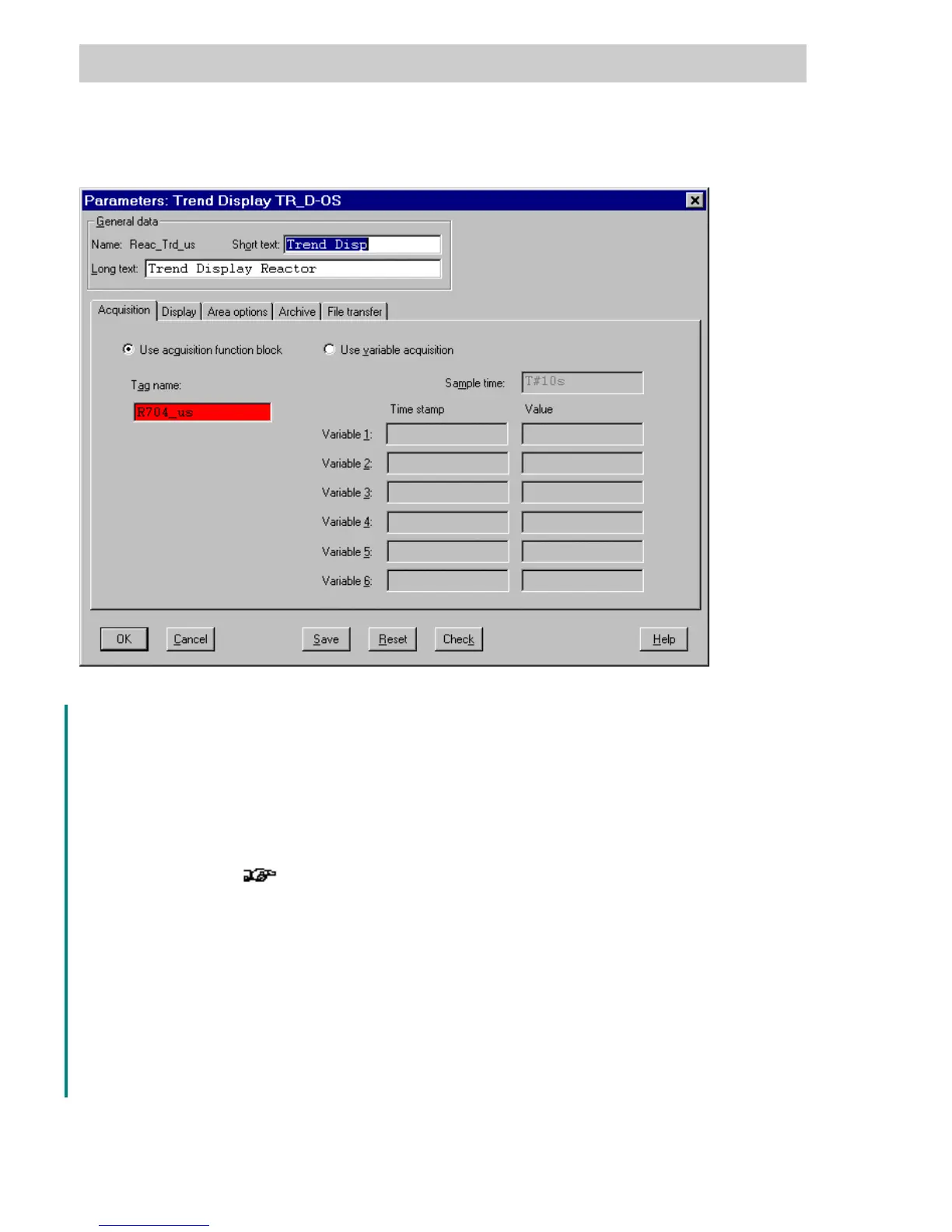

C 4.3.1 Acquisition tab
General data
Name Name of the trend display, can be changed in the project tree.
Short text A short text can be assigned to the trend display. A maximum of 12 char-
acters may be entered.
Long text A long text can be assigned to the trend display. A maximum of 30 char-
acters may be entered.
The short and long texts are also printed along with the project
documentation.
Trend data acquisition block or
Acquisition of variables
Parameter specifying whether the trend display is based on data from a
trend data acquisition block or on independent process variables.
Name Name of the trend data acquisition block in the process station.
The function key F2 is used to select a trend data acquisition block.
Cycle time In the time interval configured the process variables are read and stored
as trend data.
