Section D Graphic Display
D-56
Description of defining parameters specific to self-animated objects
The variables have different meanings in the bit variables dialog.
Visible/Invisible Depending on the value of a process variable, the graphic object is either
shown or not shown in the graphic display sequence.
On/Off Depending on the value of a process variable the intermittent display of
static objects is switched either on or off.
Fast/Slow The speed of animation is made to change with the value of a process
variable.
Display
Up to 8 static objects and color combinations can be assigned to a self-animated object.
Depending on the values of the specified process variables, the next object appears in the
graphic display every 125 or 250 ms, the animation is started or stopped, or display of a given
object is included or not.
D 5.20 Trend window
→Animate → Trend window,
→Upper left corner of the Trend window is positioned with a mouse click,
→Define Trend window size by moving the mouse, terminate by clicking mouse,
→Enter data in the parameter mask,
→Display Trend window with a frame.

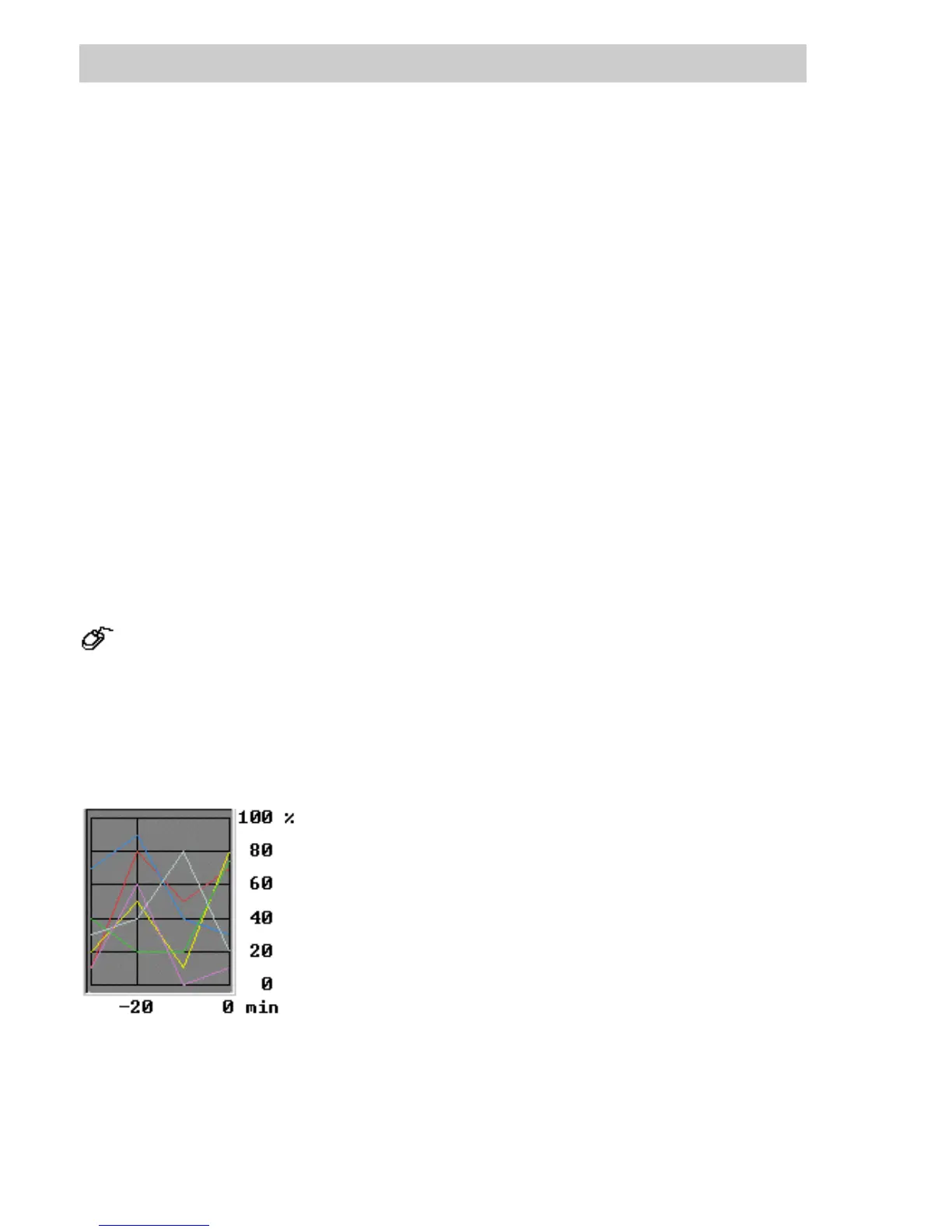

Display up to 6 trends within a trend window.
A Trend window can be positioned and sized at will within a
graphic display. Up to 6 trends may be displayed in one
window. These trends have no history, i.e. display of the
measured values commences when the corresponding graphic
is called up. The color can be set separately for each trend, as
it can for the Trend window foreground and background.
Standard scaling is specified but can be changed within
DigiVis.
The Trend window can be shown with or without 3-D formatting.
The trend data are captured according to the cycle time defined for the graphic. A max.
recording time can be set in TIME format.
