Section C Standard Displays
C-11

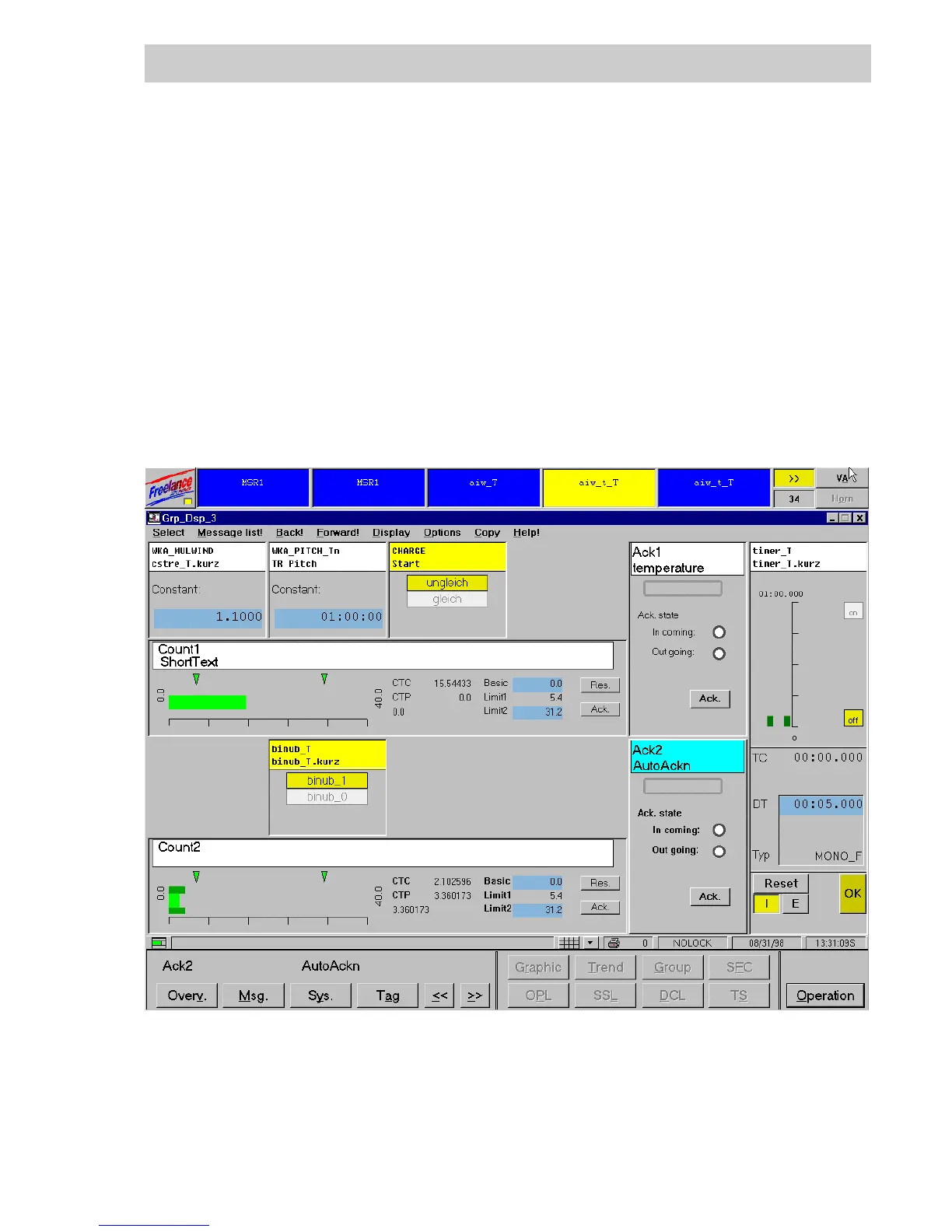

C 3 Group Display
C 3.1 General description - group display
A group display mask comprises 6 x 4 segments, i.e. the group display can feature up to 24
standardized depictions of tags.
The group display is configurable. A short text and a long text can be assigned to each group
display, by that e.g. a assignment to a process segment can be made. Existing tags can be
entered using the selector list. Accordingly, the standardized depictions of tags (faceplates) be-
come an integral part of the group display. The size of a faceplate is a function of the type. One
analog
DEPICTION claims one of the 6 columns (4 segments), while one binary faceplate claims
only one segment. For user defined faceplates each rectangular size within the 6 x 4 raster is
possible.
