Section B Messages and Hints
B-17

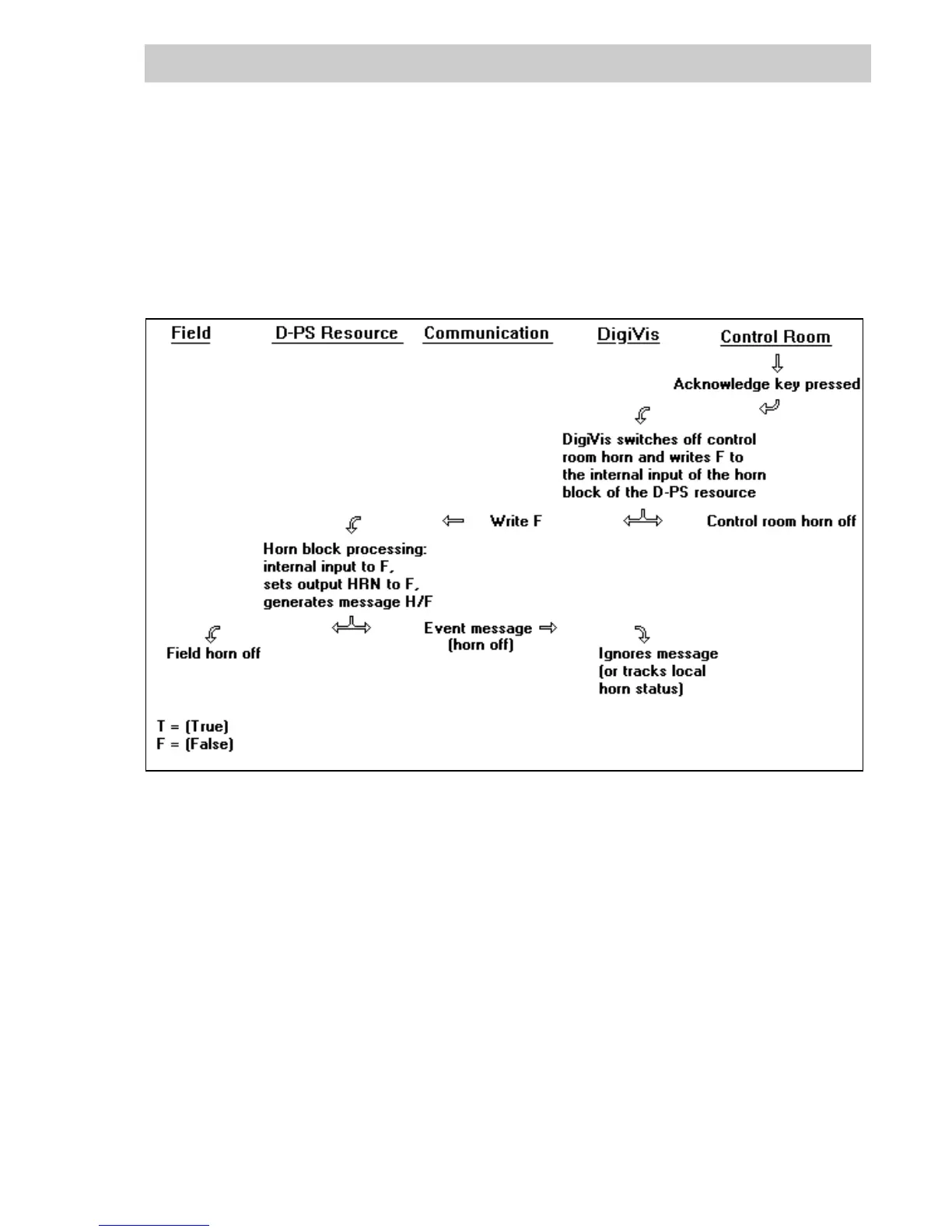

B 3.4 Acknowledgment in the control room
On selection of the HORN OFF button, DigiVis switches off an active control room horn. In the
case of an active field horn, a logic-0 signal is written to the internal input of the respective horn
function block by DigiVis. The field horn is switched off. As feedback, the horn function block
sends an event message back to DigiVis.
