NoteAction
xx1600000208

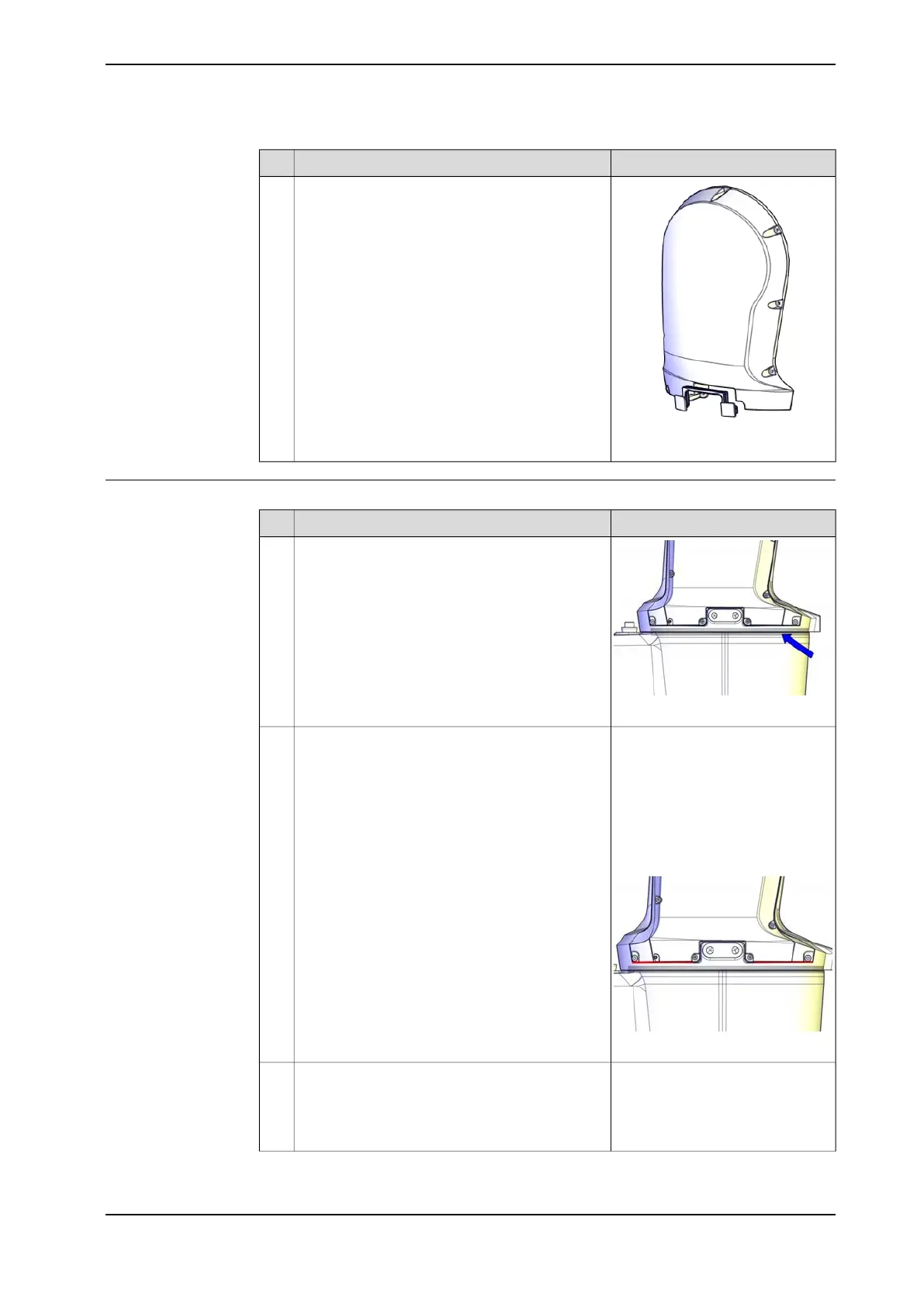

Detach the swing sealing plug from the cable
housing cover.
3
Refitting the swing sealing plug
NoteAction
xx1600000209
Mask the gap between the swing and the base.1
For robots with protection type
Clean Room
Apply a string of the sealant to the joint of the
swing cable housing cover.
2
For robots with food grade lubric-
ation
Sealant, Sikaflex 521FC
For robots with protection type
Hygienic
Sealant, Trans Clear
xx1600000210
Smooth out the sealant string using a finger tip.
Use washing-up on finger tips to get a smooth
joint. If necessary, add extra sealant to get a full
cover joint. Make sure the sealant fully covers the
gap but is not applied to the screw cavities.
3
Continues on next page
Product manual - IRB 1200 167
3HAC046983-001 Revision: S
© Copyright 2014 - 2021 ABB. All rights reserved.
4 Repair
4.2.4 Swing sealing plug for Clean Room, food grade lubrication and Hygienic robots
Continued
