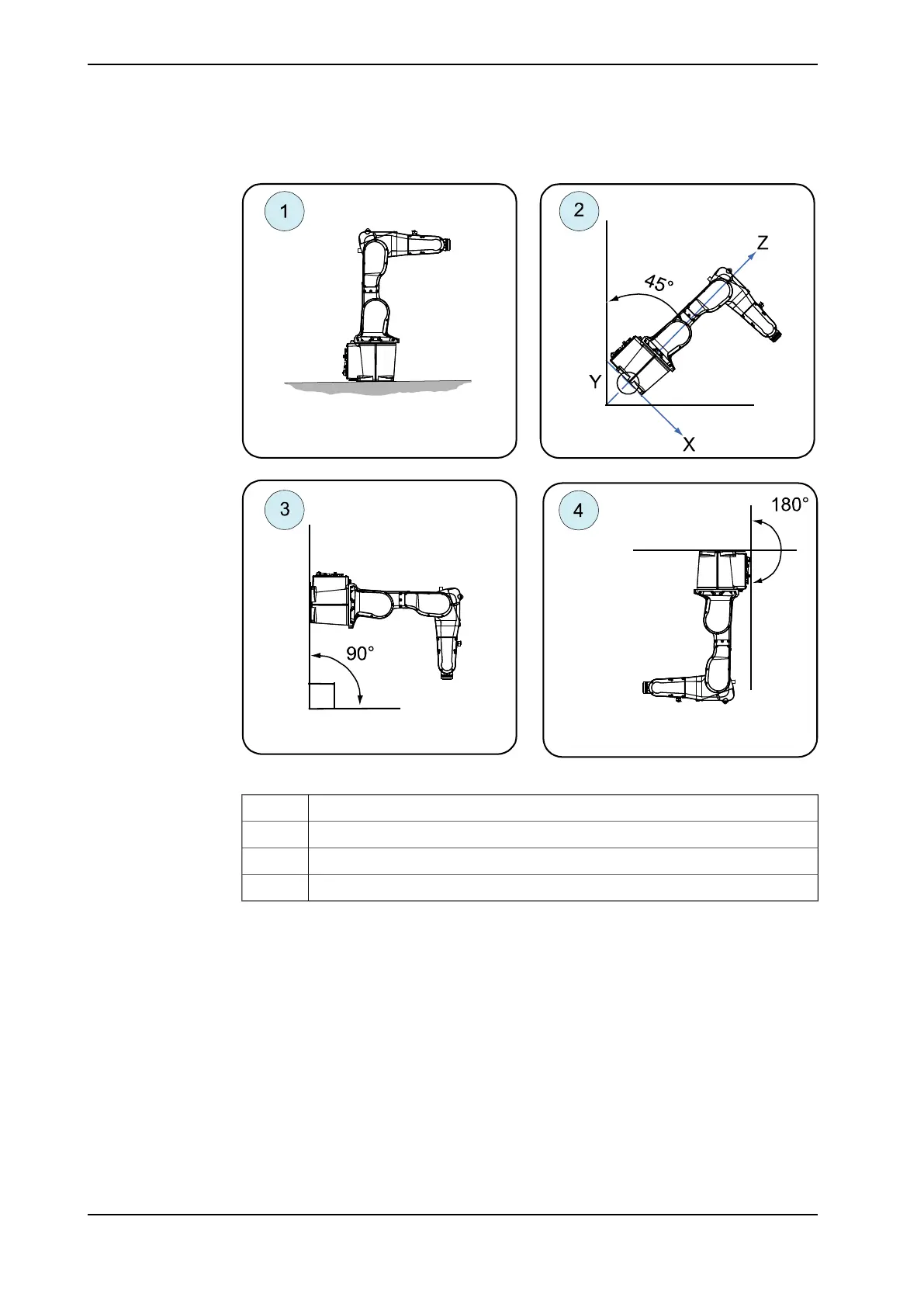

Examples of mounting angles tilted around the Y axis (Gravity Beta)
xx1400000682
Floor mountedPos 1
Mounting angle 45° (Tilted)Pos 2
Mounting angle 90° (Wall)Pos 3
Mounting angle 180° (Suspended)Pos 4
Continues on next page
80 Product manual - IRB 1200
3HAC046983-001 Revision: S
© Copyright 2014 - 2021 ABB. All rights reserved.
2 Installation and commissioning
2.3.5 Setting the system parameters for a suspended or tilted robot
Continued
