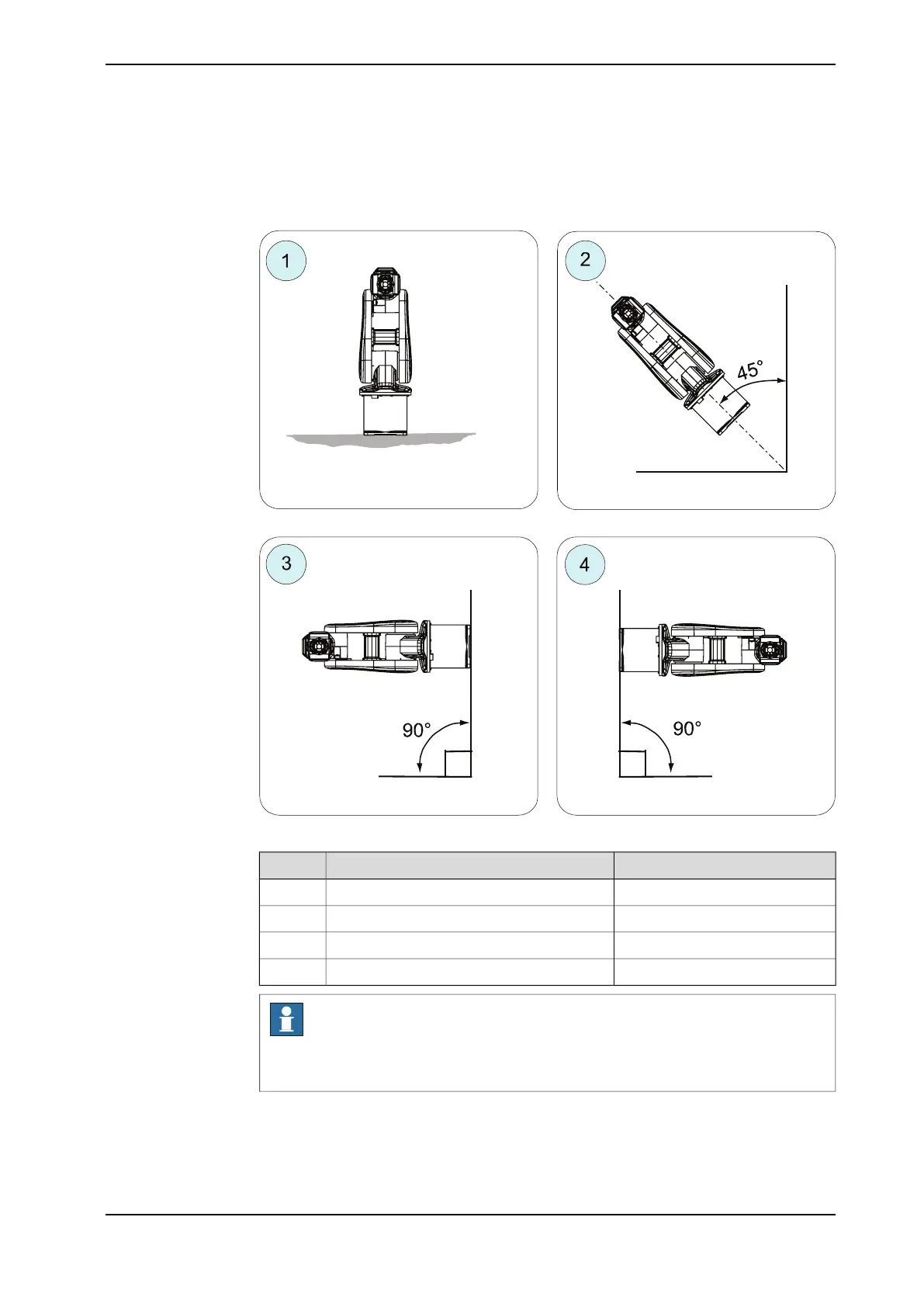

Examples of mounting angles tilted around the X axis (Gravity Alpha)
The following illustration shows the IRB 120, but the same principle applies for all
robots.
xx1500000532
Gravity AlphaMounting anglePos
00° (Floor mounted)1
0.78539845° (Tilted)2
1.57079690° (Wall)3
-1.570796-90° (Wall)4
Note
For suspended robots (180°), it is recommended to use Gravity Beta instead of
Gravity Alpha.
Continues on next page
Product manual - IRB 1200 81
3HAC046983-001 Revision: S
© Copyright 2014 - 2021 ABB. All rights reserved.
2 Installation and commissioning
2.3.5 Setting the system parameters for a suspended or tilted robot
Continued
