ABB IRB 2600 Series User Manual

InformationAction
A
F
B
xx1100000694
A 100 mm (dial indicator)
B 140 mm

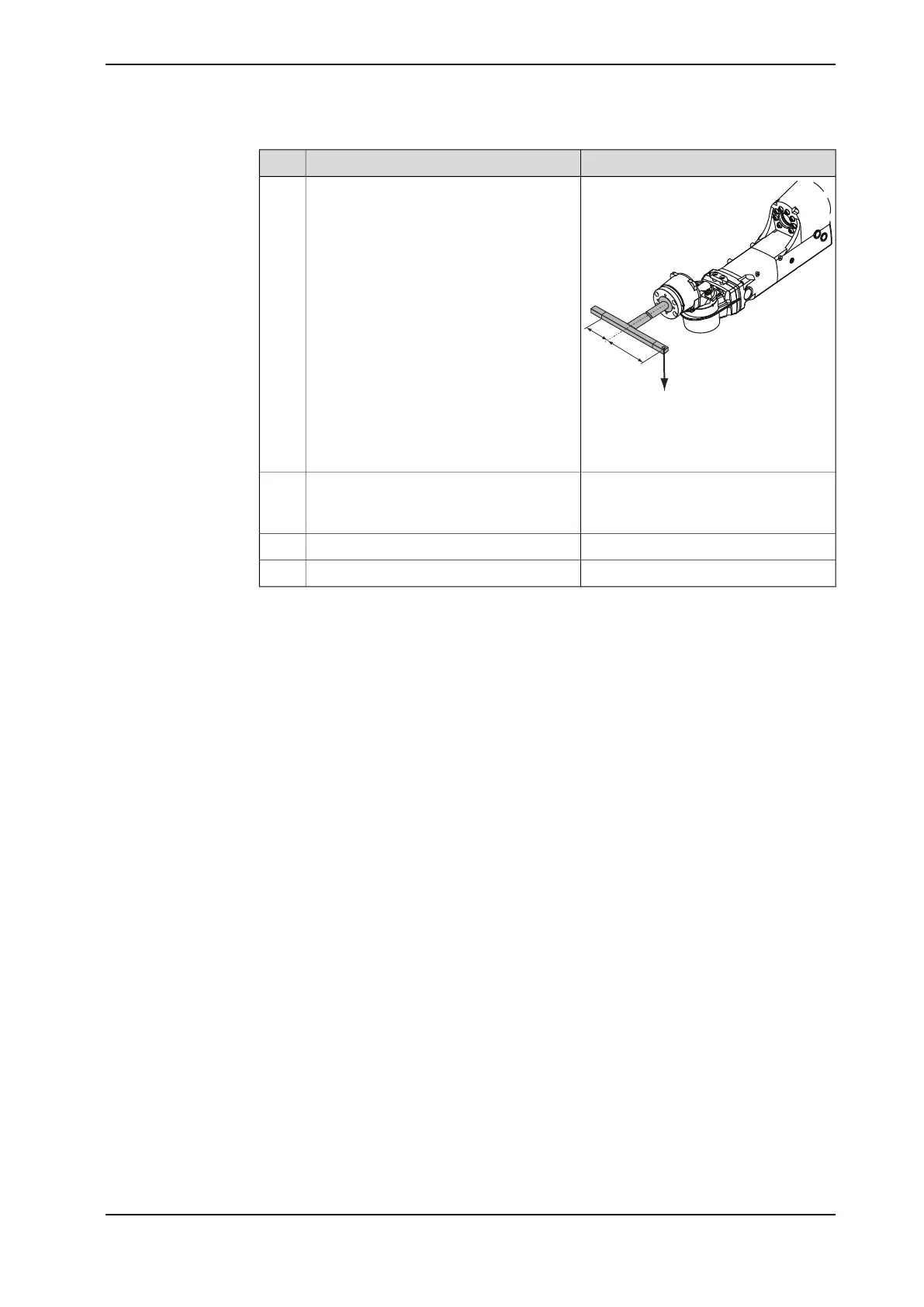

Apply load F=40N downwards at a distance
B from the rotation center of axis 6.
11
The maximum play allowed is:
• IRB 2600ID - 15/1.85: 0.20 mm
• IRB 2600ID - 8/2.00: 0.22 mm
Remove the load and measure the play by
reading the dial indicator.
12
Turn axis 6 to +180°.13
Repeat step 9 to step 12.14
Product manual - IRB 2600 277
3HAC035504-001 Revision: Q
© Copyright 2009-2018 ABB. All rights reserved.
4 Repair
4.4.7 Measuring the play, axis 6 (ID upper arm)
Continued

ABB IRB 2600 Series Specifications

General

Number of Axes	6
Robot Control	IRC5
Mounting	wall
Protection	IP67
Max Speed	Axis 1: 180°/s
Reach	1.65 m / 1.85 m
