Adjusting the play
Use this procedure to adjust the play of the motor. The figures show adjustment
of the axis-4 motor, but the method is also the same for the axis-5 and axis-6
motors.
NoteAction
DANGER
Turn off all:
• electric power supply
• hydraulic pressure supply
• air pressure supply
to the robot, before entering the robot
working area.
1

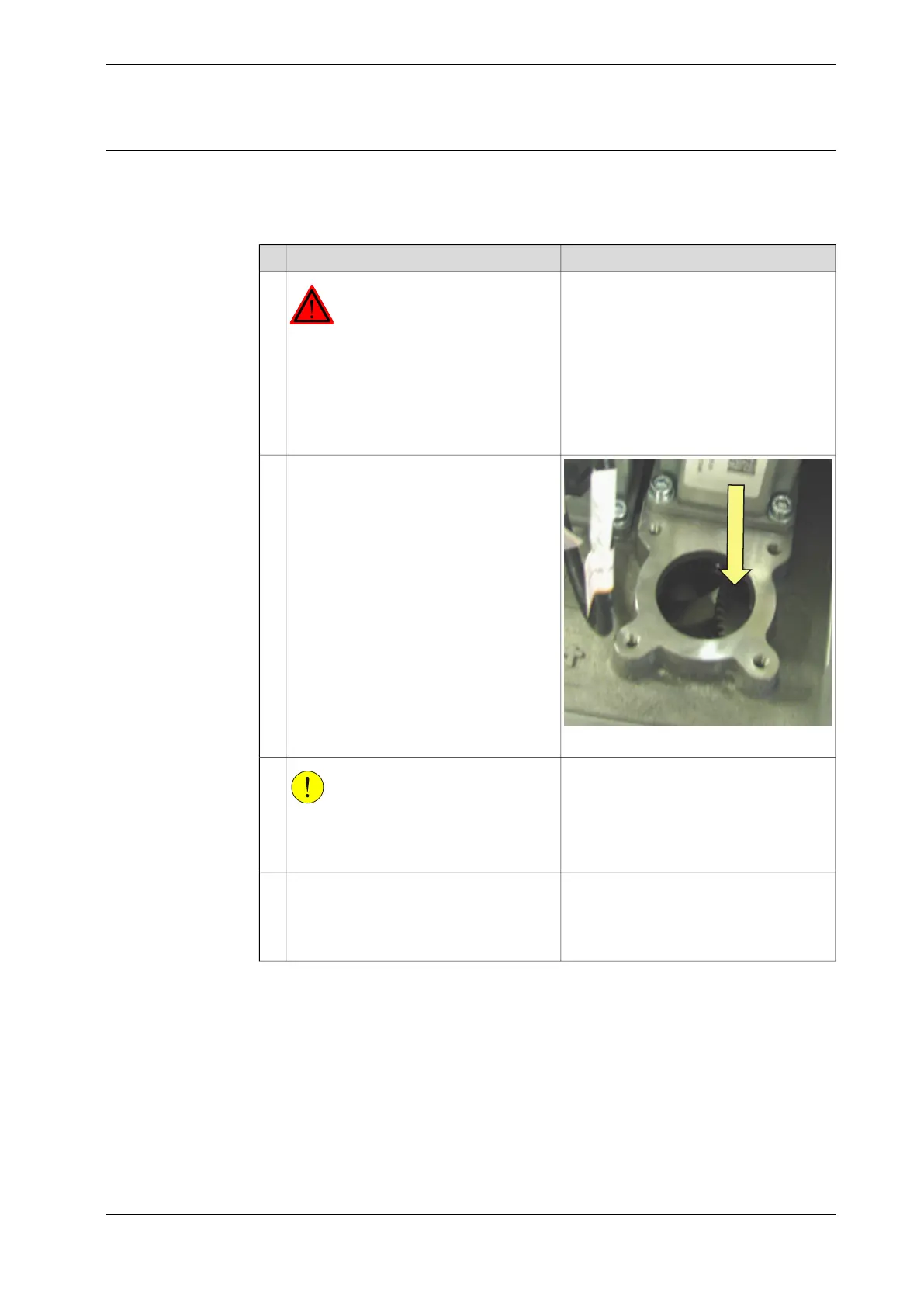

xx1200000098
Before fitting the motor, look into the hole
to find the position of the gear. When ad-
justing to the correct play, the motor pinion
is pressed against the gear. How to do this
is detailed further on in this procedure.
2
CAUTION
Whenever parting/mating motor and gear-
box, the gears may be damaged if excess-
ive force is used!
3
Place the motor carefully in the hole without
damaging the gear or pinion. Put the attach-
ment screws in the holes on the motor and
fit them a few revolutions. Do not tighten
the attachment screws yet!
4
Continues on next page
Product manual - IRB 2600 353
3HAC035504-001 Revision: Q
© Copyright 2009-2018 ABB. All rights reserved.
4 Repair
4.7.5 Adjusting the play
Continued
